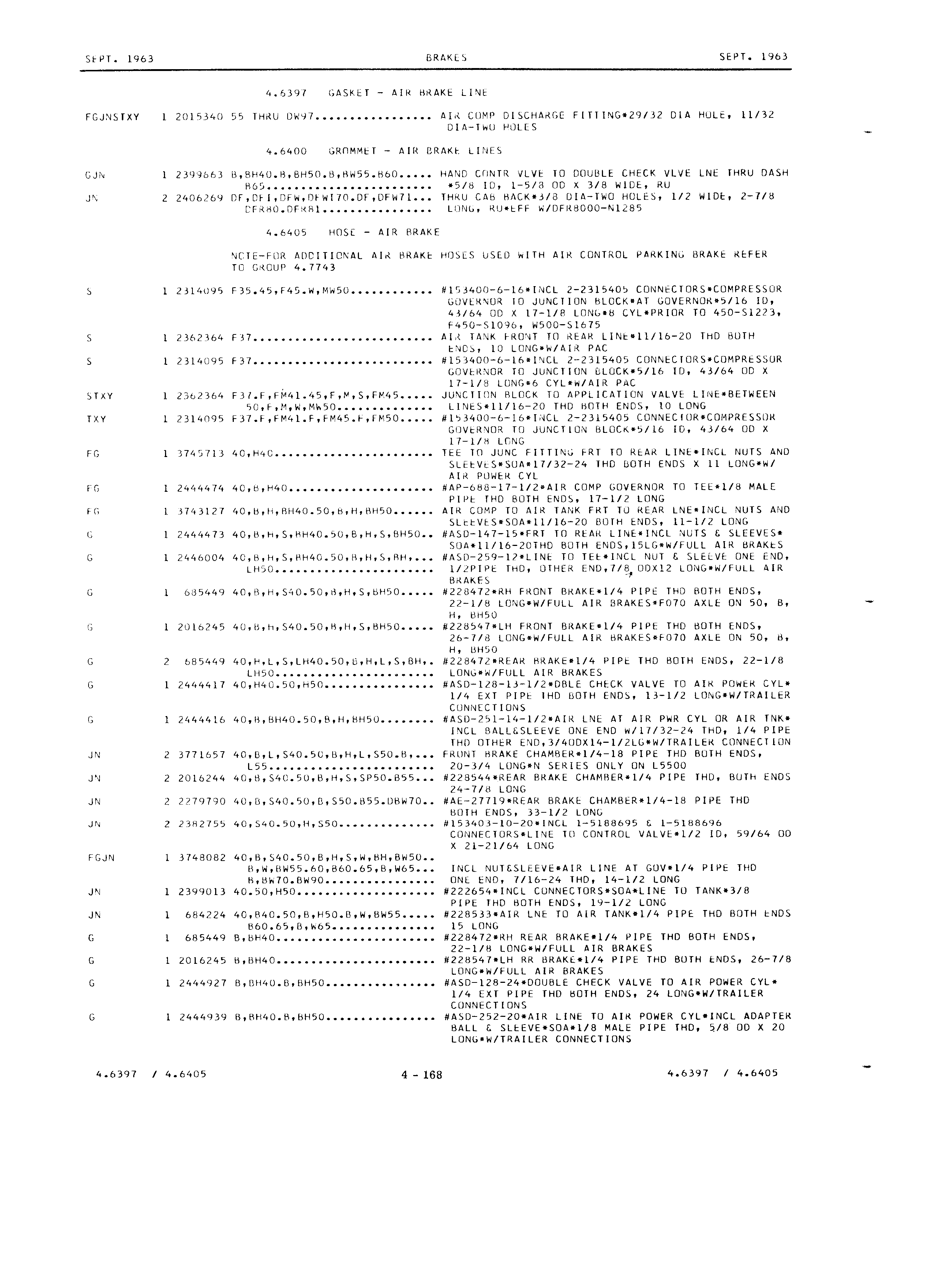

SEPT 1963 BRAKES SEPT 1963 4 6397 GASKET AIR BRAKE LINE FGJNSTXY 1 2015340 55 THRU OW97 AIR COMP DISCHARGE F1TIING 29 32 DIA HOLE 11 32 DIA TWO HOLES W 4 6400 GROMMET AIR BRAKE LINES GJN 1 2399663 B BH40 B BH50 B BW55 860 HAND CONTR VLVE TO DOUBLE CHECK VLVE LNE THRU DASH B65 5 8 ID I 5 B OD X 3 8 WIDE RU JN 2 2406269 OF DPI DFW DEwI70 DF DFW71 THRU CAB BACK 3 8 DIA TWO HOLES 1 2 WIDE 2 7 8 CFRRO DFR8I LONG RU EFF W DFR8000 N1285 4 6405 HOSE AIR BRAKE NOTE FOR ADDITIONAL AIR BRAKE HOSES USED MITH AIR CONTROL PARKING BRAKE REFER TO GROUP 4 7743 S 1 2314095 F35 45 F45 W MW50 153400 6 16 INCL 2 2315405 CONNECTORS COMPRESSOR GOVERNOR ID JUNCTION BLOCK AT GDVERNOR 5 16 ID 43 64 OD X 17 1 8 LONG 8 CYL PRIOR TO 450 1223 P450 SIO96 WBOO SI675 S 1 2362364 F37 AIR TANK FRONT TO REAR LINE 11 16 20 THD BOTH ENDS 10 LONG W AIR PAC S 1 2314095 F37 153400 6 16 1NCL 2 2315405 CONNECTORS COMPRESSUR GOVERNOR TO JUNCTION BLOCK 5 16 ID 43 64 OD X V 17 I 8 LONG 6 CYL w AIR PAC STXY I 2362364 F37 F EM41 45 F M S FM45 JUNCTION BLOCK TO APPLICATION VALVE LINE BETWEEN 50 F M W MW50 LINES 11 I6 20 THD BOTH ENDS IO LONG TXY 1 2314095 E37 F FM41 F EM45 E FM5O 153400 6 16 1NCL 2 2315405 CONNECTOR COMPRESSOR GOVERNOR TD JUNCTION BLOCK 5 16 ID 43 64 OD X 17 1 8 LONG EG 1 3745713 40 H4U TEE TO JUNC FITTING ERT TO REAR LINE INCL NUTS AND SLEEVES SOA 17 32 24 THD BOTH ENDS X 11 LONG W AIR POWER CYL FG I 2444474 40 B H40 KAP 688 17 1 2 AIR COMP GOVERNOR TO TEE 1 8 MALE PIPE THD BOTH ENDS 17 1 2 LONG FG I 3743127 40 B H BH40 50 B H BH5O AIR COMP TO AIR TANK FRT TO REAR LNE INCL NUTS AND SLEEVES SOA 11 I6 20 BOTH ENDS 11 1 2 LONG G 1 2444473 40 B H S BH40 50 B H S BH50 ASD 147 15 FRT TO REAR LINE INCL NUTS 8 SLEEVES SOA 11 16 20THD BOTH ENDS 15LG w FULL AIR BRAKES G 1 2446004 40 B H S RH40 50 B H S BH ASD 259 1 LINE TO TEE lNCL NUT 8 SLEEVE ONE END LH50 1 ZPIPE THD OTHER END 7 g ODX12 LONG W FULL AIR BRAKES G 1 685449 40 B H S40 50 B H S BH50 228472 RH FRONT BRAKE 1 4 PIPE THD BOTH ENDS 22 I 8 LONG W FULL AIR BRAKES EO7O AXLE ON 50 B H BHSO G 1 2016245 40 B H S40 50 B H S BH50 228547 LH FRONT BRAKE I 4 PIPE THD BOTH ENDS 26 7 8 LONG W FULL AIR BRAKES E070 AXLE ON 50 B H BH50 G 2 685449 40 H L LH40 50 B H L S BH 228472 REAR HRAKE 1 4 PIPE THD BOTH ENDS 22 I 8 LH50 LONG W FULL AIR BRAKES G 1 2444417 40 H40 50 H50 ASD 128 13 1 2 DBLE CHECK VALVE TD AIR POWER CYL 1 4 EXT PIPE THD BOTH ENDS 13 1 2 LONG W TRAILER CONNECTIONS G 1 2444416 40 B BH40 50 8 H BH50 ASD 251 14 1 2 AIR LNE AT AIR PWR CYL OR AIR TNK INCL BALLCSLEEVE ONE END w 17 32 24 THD 1 4 PIPE THD OTHER END 3 4ODX14 I 2LG W TRAILER CONNECTION JN 2 3771657 40 8 L S40 50 B H L S50 B FRONT BRAKE CHAMBER 1 4 18 PIPE THD BOTH ENDS L55 20 3 4 LONG N SERIES ONLY ON L550O JN 2 2016244 40 8 S40 50 B H S SP50 B55 228544 REAR BRAKE CHAMBER 1 4 PIPE THD BOTH ENDS 24 7 8 LONG JN 2 2279790 40 B S40 50 B S50 B55 0BW70 AE 27719 REAR BRAKE CHAMBER 1 4 18 PIPE THD BOTH ENDS 33 1 2 LONG JN 2 2382755 40 S40 50 H 55O 153403 10 20 INCL 1 5188695 8 1 5188696 CDNNECTORS LINE TO CONTROL VALVE 1 2 ID 59 64 OD X 21 21 64 LONG FGJN 1 3748082 40 8 S40 50 B H S N BH BW50 R W 8W 5 60 B60 65 B N65 INCL NUT SLEEVE AIR LINE AT GOV 1 4 PIPE THD B BW70 BW9O ONE END 7 16 24 THD 14 1 2 LONG JN 1 2399013 40 50 H50 222654 1NCL CONNECTORS SOA LINE TO TANK 3 8 PIPE THD BOTH ENDS 19 1 2 LONG JN 1 684224 40 B40 50 B H50 B W BW55 228533 AIR LNE TO AIR TANK 1 4 PIPE THD BOTH ENDS B60 65 B W65 15 LONG G 1 685449 B BH40 228472 RH REAR BRAKE I 4 PIPE THD BOTH ENDS 22 1 B LDNG W FULL AIR BRAKES G I 2016245 B BH4O 228547 LH RR BRAKE 1 4 PIPE THD BOTH ENDS 26 7 8 LONG W FULL AIR BRAKES G 1 2444927 B BH40 8 BH5O ASD 12B 24 DOUBLE CHECK VALVE TO AIR POWER CYL I 4 EXT PIPE THD BOTH ENDS Z4 LONG W TRAILER CONNECTIONS G 1 2444939 8 8H40 B BH50 ASD 252 20 AIR LINE TD AIR POWER CYL INCL ADAPTER BALL 8 SLEEVE SOA 1 8 MALE PIPE THD 5 8 OD X 20 LONG W TRAILER CONNECTIONS 4 6397 1 4 6405 4 168 4 6397 4 6405
