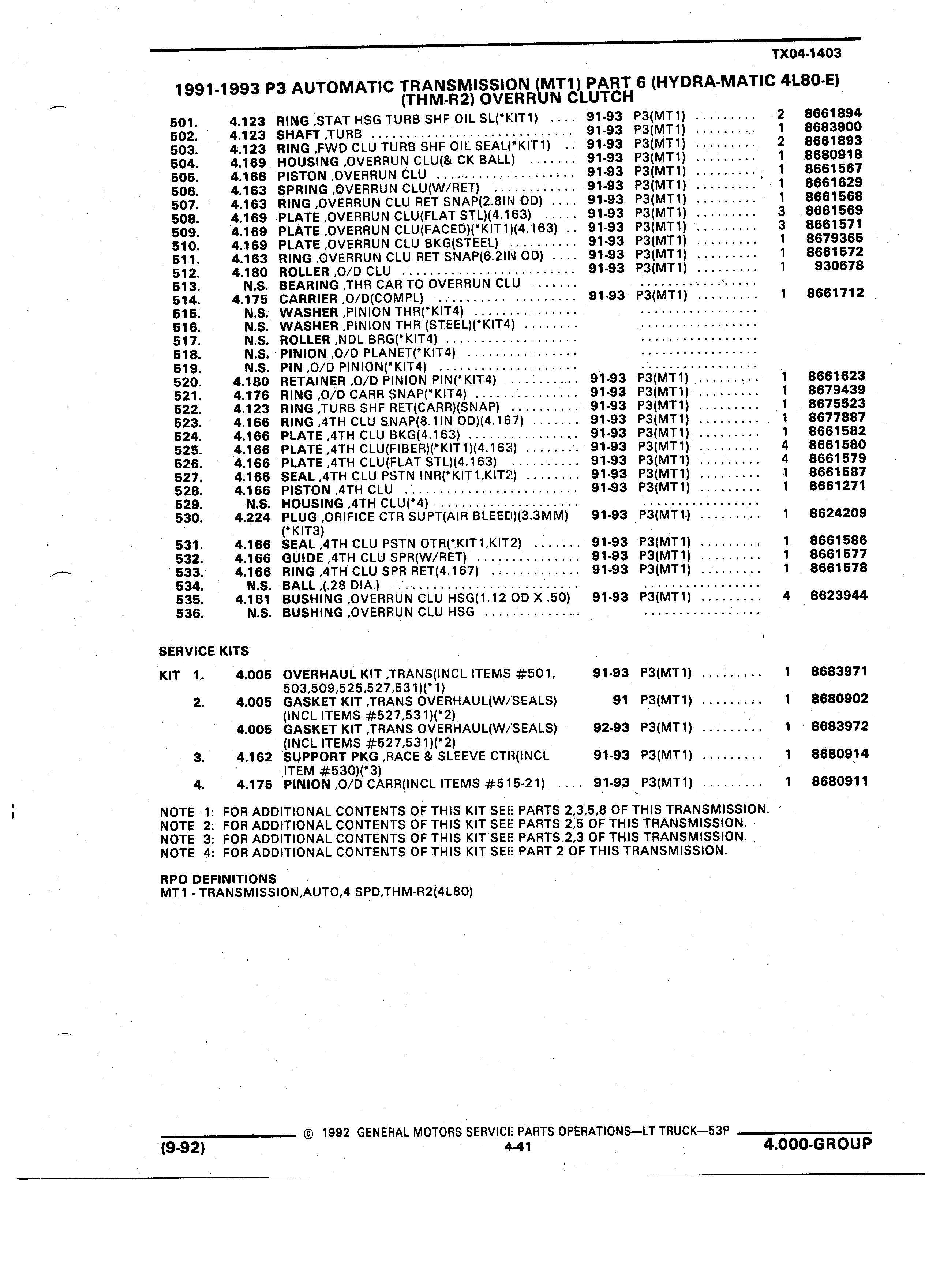

TX04 1403 1991 1993 P3 AUTOMATIC TRANSMISSION WIT1 PART 6 HYDRA MATIC 4L80 E THM R2 OVERR N CLUTCH 501 4 123 RING STAT HSG TURB SHF OIL SL I IT1 91 93 P3 MT1 2 8661894 502 4 123 SHAFT TURB 91 93 P3 MT1 1 8683900 503 4 123 RING FWD CLU TURB SHF OIL SEAL K T1 91 93 P3 MT1 2 8661893 504 4 169 HOUSING OVERRUN CLU CK BALL 91 93 P3 MT1 1 8680918 505 4 166 PISTON OVERRUN CLU 91 93 P3 MT1 1 8661567 506 4 163 SPRING OVERRUN CLU W RET 91 93 P3 MT1 1 8661629 507 4 163 RING OVERRUN CLU RET SNAP 2 8IN OD 91 93 P3 MT1 1 8661568 508 4 169 PLATE OVERRUN CLU FLAT STL 4 163 91 93 P3 MT1 3 8661569 509 4 169 PLATE OVERRUN CLU FACED K T1 4 I63 91 93 P3 MT1 3 8661571 510 4 169 PLATE OVERRUN CLU BKG STEEL 91 93 P3 MT1 1 8679365 511 4 163 RING OVERRUN CLU RET SNAP 6 2IN OD 91 93 P3 MT1 1 8661572 512 4 180 ROLLER O D CLU 91 93 P3 MT1 I 930678 513 N S BEARING THR CAR TO OVERRUN CLU 514 4 175 CARRIER 0 D COMPL 91 93 P3 MT1 1 8661712 515 N S WASHER P N ON THR KIT4 516 N S WASHER PINION THR STEEL KIT4 517 N S ROLLER NDL BRG KIT4 518 N S PINION O D PLANET KIT4 519 N S PIN 0 D PIN ON K T4 520 4 180 RETAINER O D PINION PIN K T4 91 93 P3 MT1 1 8661623 521 4 176 RING 0 D CARR SNAP KIT4 91 93 P3 MT1 1 8679439 522 4 123 RING TURB SHF RET CA RR SNAP 91 93 P3 MT1 1 8675523 523 4 166 RING 4TH CLU S NAP 8 1 IN OD 4 167 91 93 P3 MT1 1 8677887 524 4 166 PLATE 4TH CLU BKG 4 163 91 93 P3 MT1 1 8661582 525 4 166 PLATE 4TH CLU FIBER KIT1 4 163 91 93 P3 MT1 4 8661580 526 4 166 PLATE 4TH CLU FLAT STL 4 163 91 93 P3 MT1 4 8661579 527 4 166 SEAL 4TH CLU PSTN INR KIT1 KIT2 91 93 P3 MT1 1 8661587 528 4 166 PISTON 4TH CLU 91 93 P3 MT1 1 8661271 I 529 N S HOUSING 4TH CLU 4 V 530 4 224 PLUG ORIFICE CTR SUPT AIR BLEED 3 3MM 91 93 P3 MT1 1 8624209 K T3 531 4 166 SEAL 4TH CLU PSTN OTR KIT1 K T2 91 93 P3 MT1 1 8661586 532 4 166 GUIDE 4TH CLU SPR W RET 91 93 P3 MT1 1 8661577 533 4 166 RING 4TH CLU SPR RET 4 167 91 93 P3 MT1 I 8661578 534 N S BALL 28 DIA 535 4 161 BUSHING OVERRUN CLU HSG 1 12 OD X 50 91 93 P3 MT1 4 8623944 536 N S BUSHING OVERRUN CLU HSG SERVICE KITS KIT 1 4 005 OVERHAUL KIT TRANS INCL ITEMS 501 91 93 P3 MT1 1 8683971 503 509 525 527 531 1 2 4 005 GASKET KIT TRANS OVERHAUL W SEALS 91 P3 MT1 1 8680902 INCL ITEMS 527 531 2 4 005 GASKET KIT TRANS OVERHAUL W SEALS 92 93 P3 MT1 1 8683972 INCL ITEMS 527 531 2 3 4 162 SUPPORT PKG RACE SLEEVE CTR INCL 91 93 P3 MT1 1 8680914 ITEM 530 3 4 4 175 PINION O D CARR INCL ITEMS 515 21 91 93 P3 MT1 V 1 8680911 I NOTE 1 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2 3 5 8 OF THIS TRANSMISSION NOTE 2 FOR ADDITIONAL CONTENTS OF THIS KIT SEIE PARTS 2 5 OF THIS TRANSMISSION NOTE 3 FOR ADDITIONAL CONTENTS OF THIS KIT SEIE PARTS 2 3 OF THIS TRANSMISSION NOTE 4 FOR ADDITIONAL CONTENTS OF THIS KIT SEIE PART 2 OF THIS TRANSMISSION RPO DEFINITIONS MT1 TRANSMISS ON AUTO 4 SPD THM R2 4L80 j i 1992 GENEFIAL MOTORS SERVICIE PARTS OPERATIONS LT TRUCK 53P 9 92 AI 41 4 000 GROUP
