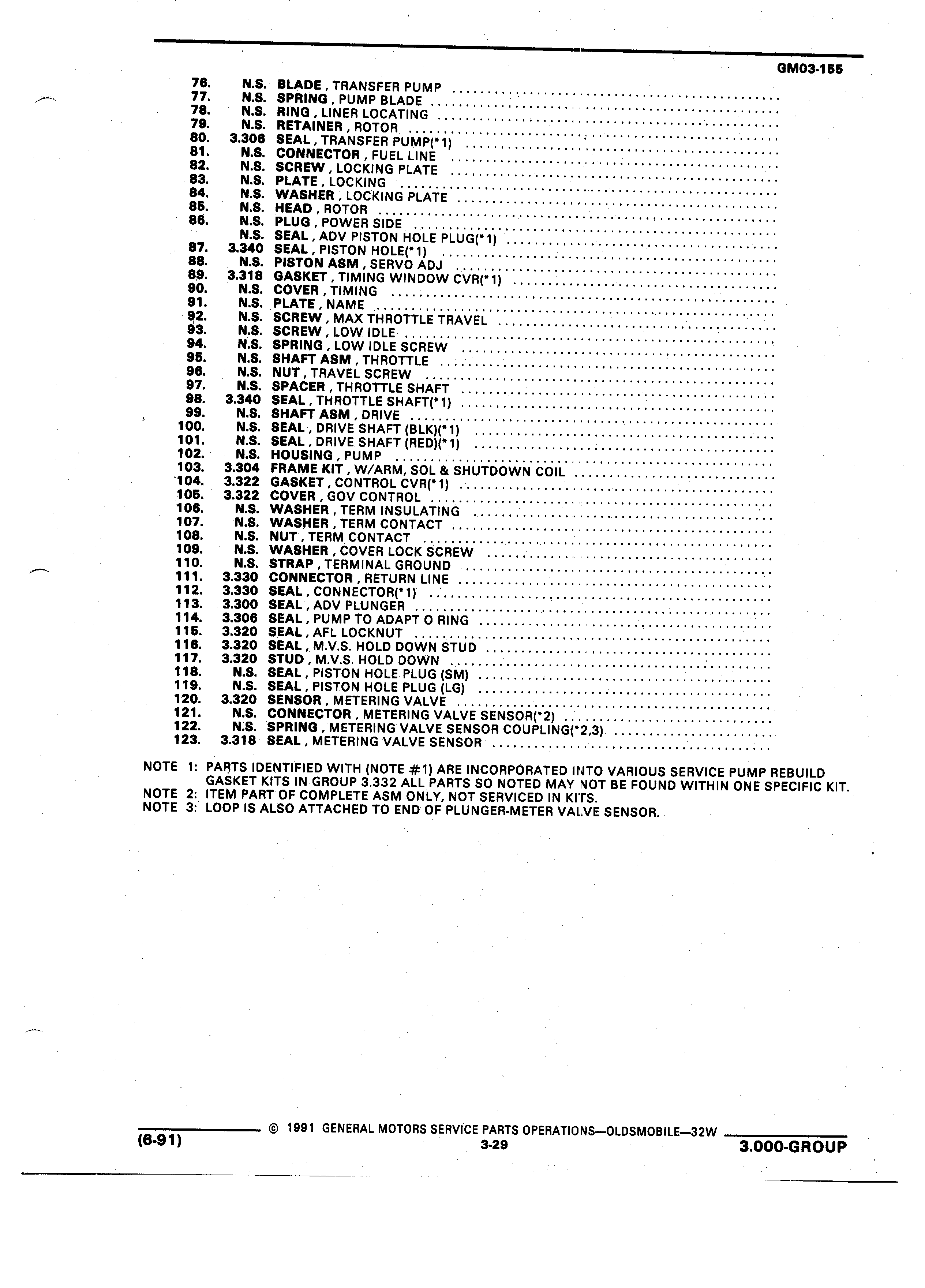

GM03 155 76 N S BLADE TRANSFER PUMP E 77 N S SPRING PUMP BLADE I 78 N S RING LINER LOCATING I 79 N S RETAINER ROTOR 80 3 306 SEAL TRANSFER PUMP 1 81 N S CONNECTOR FUEL LINE 4 82 N S SCREW LOCKING PLATE 83 N S PLATE LOCKING 84 N S WASHER LOCKING PLATE 85 N S HEAD ROTOR I 86 N S PLUG POWER SIDE N S SEAL ADV PISTON HOLE PLUG 1 A 87 3 340 SEAL PISTON HOLE 1 68 N S PISTON ASM SERVO ADJ 89 3 318 GASKET TIMING WINDOW CVR 1 90 N S COVER TIMING 91 N S PLATE NAME 92 N S SCREW MAX THROTTLE TRAVEL 93 N S SCREW LOW IDLE V 94 N S SPRING LOW IDLE SCREW 95 N S SHAFT ASM THROTTLE 96 N S NUT TRAVEL SCREW 97 N S SPACER THROTTLE SHAFT 98 3 340 SEAL THROTTLE SHAFT 1 99 N S SHAFT ASM DRIVE 100 N S SEAL DRIVE SHAFT BLK 1 101 N S SEAL DRIVEE SHAFT RED 1 102 N S HOUSING PUMP 103 3 304 FRAME KIT W ARM SOL SHUTDOWN COIL 104 3 322 GASKET CONTROL CVR 1 105 3 322 COVER GOV CONTROL 106 N S WASHER TERM INSULATING 1 107 N S WASHER TERM CONTACT Q 108 N S NUT TERM CONTACT I I 109 N S WASHER COVER LOCK SCREW I 110 N S STRAP TERMINAL GROUND I 111 3 330 CONNECTOR RETURN LINE 112 3 330 SEAL CONNECTOR 1 1 13 3 300 SEAL ADV PLUNGER 114 3 306 SEAL PUMP TO ADAPT O RING 115 3 320 SEAL AFL LOCKNUT 116 3 320 SEAL M V S HOLD DOWN STUD 117 3 320 STUD M V S HOLD DOWN 118 N S SEAL PISTON HOLE PLUG SM 119 N S SEAL PISTON HOLE PLUG LG 120 3 320 SENSOR METERING VALVE A 121 N S CONNECTOR METERING VALVE SENSOR 2 122 N S SPRING METERING VALVE SENSOR COUPL NG 2 3 123 3 318 SEAL METERING VALVE SENSOR NOTE 1 PARTS IDENTIFIED WITH NOTE 1 ARE INCORPORATED INTO VARIOUS SERVICE PUMP REBUILD GASKET KITS IN GROUP 3 332 ALL PARTS SO NOTED MAY INOT BE FOUND WITHIN ONE SPECIFIC KIT NOTE 2 ITEM PART OF COMPLETE ASM ONLY NOT SERVICED IN KI I S NOTE 3 LOOP IS ALSO ATTACHED TO END OF PLUNGER METER VAI VE SENSOR 1991 GENERAL MOTORS SERVICE PARTS OPERATIONS OLDSMOBILE 32W 1 6 9 1 s zs 3 000 GROUP
