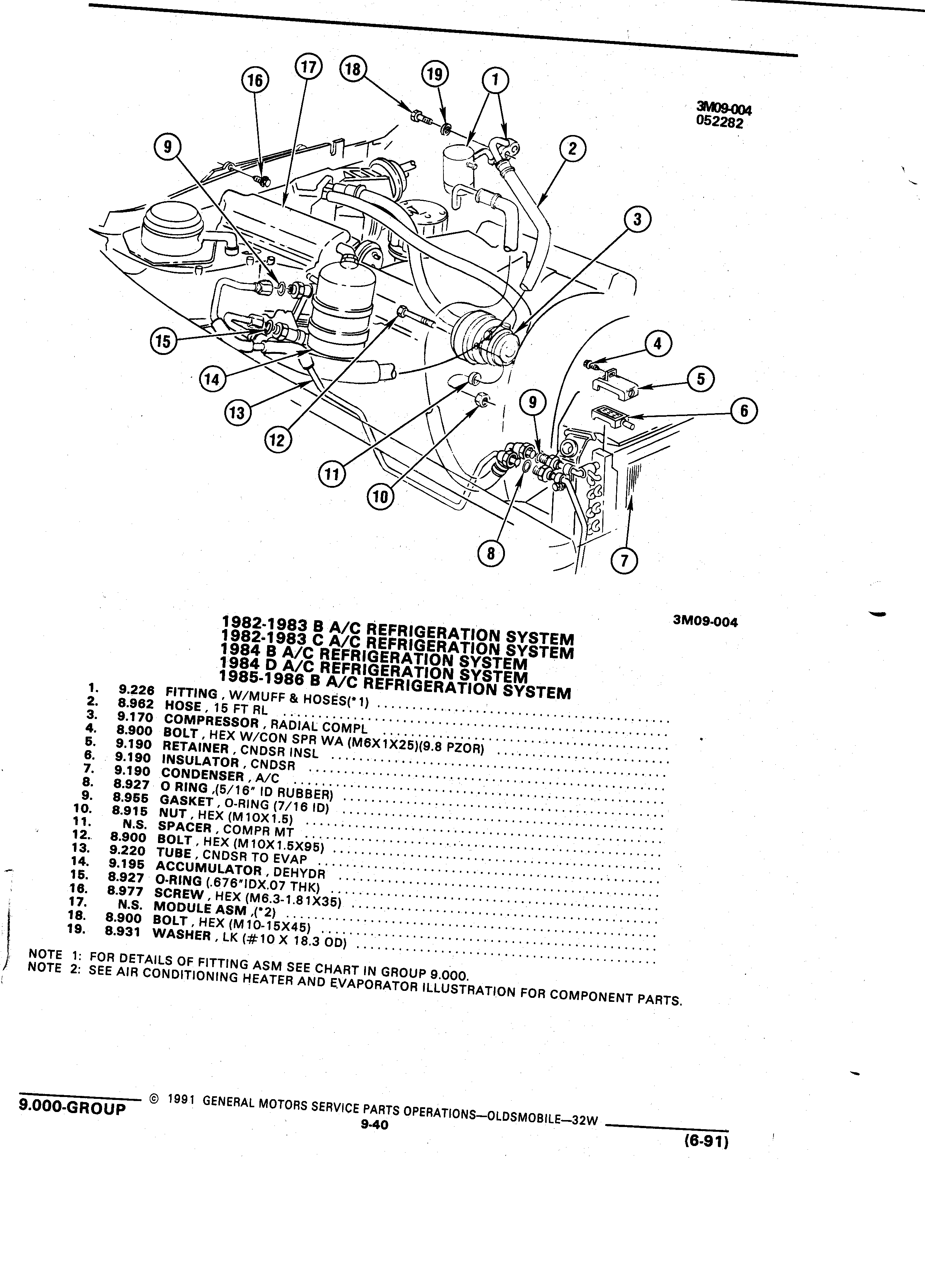

w r A 052282 k U L Ev V i I v ly r 9 I U J I VQ Z 2 Q A f I m O I Q I 5 J G I I E F r CD I l A gl I 3M09 004 I 1982 1983 B A C REFRIGERATION SYSTEM 1982 1983 C A C REFRIGERATION SYSTEM 1984 B A C REFRIGERATION SYSTEM I 1984 D A C REFRIGERATION SYSTEM 1985 1986 B A C REFRIGERATION SYSTEM 1 9 226 FITTING W MUFF HOSES 1 2 8 962 HOSE 15 FT RL 3 9 170 COMPRESSOR RADIAL COMPL 4 8 900 BOLT HEX W CON SPR WA M6X1X25 9 8 PZOR 5 9 190 RETAINER CNDSR INSL 6 9 190 INSULATOR CNDSR I 7 9 190 CONDENSER A C 8 8 927 O RING 5 16 ID RUBBER 9 8 955 GASKET O RING 7 16 ID 10 8 915 NUT HEX M1OX1 5 1 1 N S SPACER COMPR MT 1 12 8 900 BOLT HEX M 1OX1 5X95 13 9 220 TUBE CNDSR TO EVAP 14 9 195 ACCUMULATOR DEHYDR 15 8 927 O RING 676 IDX O7 THK j 16 8 977 SCREW HEX M6 3 1 81X35 I 17 N S MODULE ASM 2 18 8 900 BOLT HEX M10 15X45 j 19 8 931 WASHER LK 10 X 18 3 OD I j NOTE 1 FOR DETAILS OF FITTING ASM SEE CHART IN GROUP 9 000 NOTE 2 SEE AIR CONDITIONING HEATER AND EVAPORATOR ILLUSTRATION FOR COMPONENT PARTS 1991 GENERAL MOTORS SERVICE PARTS 0PERATIONS OLDSMOBILE 32W 9 000 GROUP s 40 6 91
