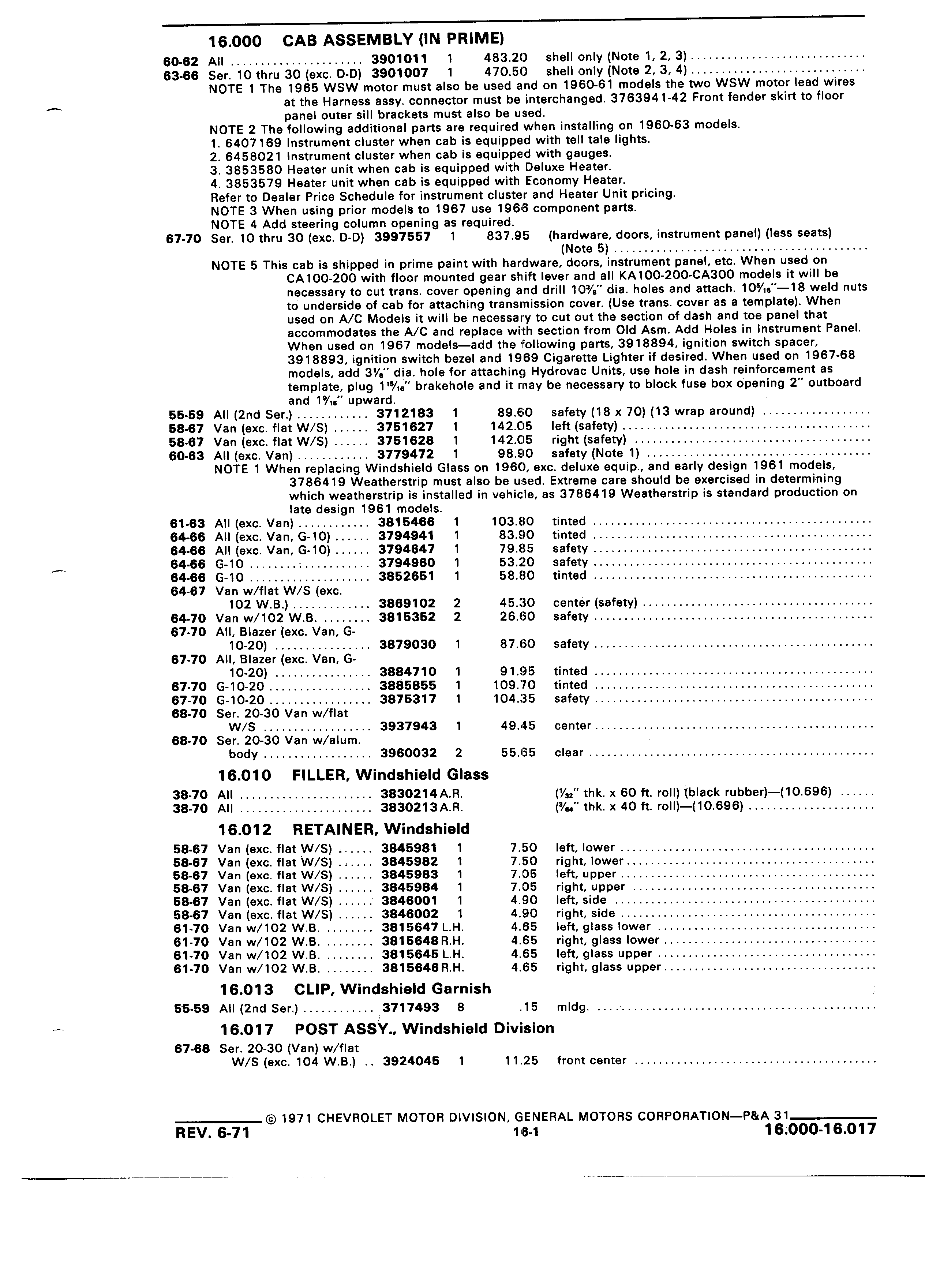

16 000 CAB ASSEMBLY IN PRIME 60 62 All 3901011 1 483 20 shell only Note 1 2 3 63 66 Ser 10 thru 30 exc D D 3901007 1 470 50 shell only Note 2 3 4 NOTE 1 The 1965 WSW motor must also be used and on 19 50 61 models the two WSW motor lead wires A at the Harness assy connector must be interchanged 3763941 42 Front fender skirt to floor panel outer sill brackets must also be used NOTE 2 The following additional parts are required when installing on 1960 63 models 1 6407169 Instrument cluster when cab is equipped with tell tale lights 2 6458021 Instrument cluster when cab is equipped with gauges 3 3853580 Heater unit when cab is equipped with Deluxe Heater 4 3853579 Heater unit when cab is equipped with Economy Heater Refer to Dealer Price Schedule for instrument cluster and Healter Unit pricing NOTE 3 When using prior models to 1967 use 1966 component parts NOTE 4 Add steering column opening as required 67 70 Ser 10 thru 30 exc D D 3997557 1 837 95 hardware doors instrument panel less seats Note 5 NOTE 5 This cab is shipped in prime paint with hardware doors instrument panel etc When used on CA100 200 with floor mounted gear shift lever and all KA100 200 CA30O models it will be necessary to cut trans cover opening and drill 10 dia holes and attach 10 18 weld nuts to underside of cab for attaching transmission cover Use trans cover as a template When used on A C Models it will be necessary to cut out the section of dash and toe panel that accommodates the A C and replace with section from Old Asm Add Holes in Instrument Panel When used on 1967 modeIs add the following parts 3918894 ignition switch spacer 3918893 ignition switch bezel and 1969 Cigarette Lighter if desired When used on 1967 68 models add 3V dia hole for attaching Hydrovac Units use hole in dash reinforcement as template plug 1 brakehole and it may be necessary to block fuse box opening 2 outboard and 1 upward 55 59 All 2nd Ser 3712183 1 89 60 safety 18 x 70 13 wrap around 58 67 Van exc flat W S 3751627 1 142 05 left safety 58 67 Van exc flat W S 3751628 1 142 05 right safety 60 63 All exc Van 3779472 1 98 90 safety Note 1 NOTE 1 When replacing Windshield Glass on 1960 exc deluxe equip and early design 1961 models 3786419 Weatherstrip must also be used Extreme care should be exercised in determining which weatherstrip is installed in vehicle as 3786419 Weatherstrip is standard production on late design 1961 models 61 63 All exc Van 3815466 1 103 80 tinted 64 66 All exc Van G 10 3794941 1 83 90 tinted 64 66 All exc Van G 10 3794647 1 79 85 safety A 64 66 G 10 1 3794960 1 53 20 safe1 y 64 66 G 10 3852651 1 58 80 tinted 64 67 Van w flat W S exc 102 W B 3869102 2 45 30 center safety 64 70 Van w 102 W B 3815352 2 26 60 safety 67 70 All Blazer exc Van G 10 20 3879030 1 87 60 safety 67 70 All Blazer exc Van G 10 20 3884710 1 91 95 tinted 67 70 G 10 20 3885855 1 109 70 tinted 67 70 G 10 20 3875317 1 104 35 safety 68 70 Ser 20 30 Van w flat W S 3937943 1 49 45 center 68 70 Ser 20 30 Van w alum body 3960032 2 55 155 clear 16 010 FILLER Windshield Glass 38 70 All 3830214A R Vez thk x 60 ft roll black rubber 10 696 38 70 All 3830213A R Vu thk x 40 ft roII 10 696 1 6 012 RETAINER Windshield 58 67 Van exc flat W S 3845981 1 7 l50 left lower 58 67 Van exc flat W S 3845982 1 7 50 right lower 58 67 Van exc flat W S 3845983 1 7 05 left upper 58 67 Van exc flat W S 3845984 1 7 05 right upper 58 67 Van exc flat W S 3846001 1 4 90 left side 58 67 Van exc flat W S 3846002 1 4 90 right side 61 70 Van w 102 W B 3815647 L H 4 65 left glass lower 61 70 Van w 102 W B 3815648 R H 4 65 right glass lower 61 70 Van w 102 W B 3815645 L H 4 65 left glass upper 61 70 Van w 102 W B 3815646 R H 4 65 right glass upper 16 013 CLIP Windshield Garnish 55 59 All 2nd Ser 3717493 8 15 mldg 1 6 017 POST ASSY Windshield Division 67 68 Ser 20 30 Van w flat W S exc 104 W B 3924045 1 11 25 front center 1971 CHEVROLET MOTOR DIVISION GENERAL lMOTORS CORPORATlON P A 31Y T REV 6 7 1 16 1 1 6 000 1 6 017
