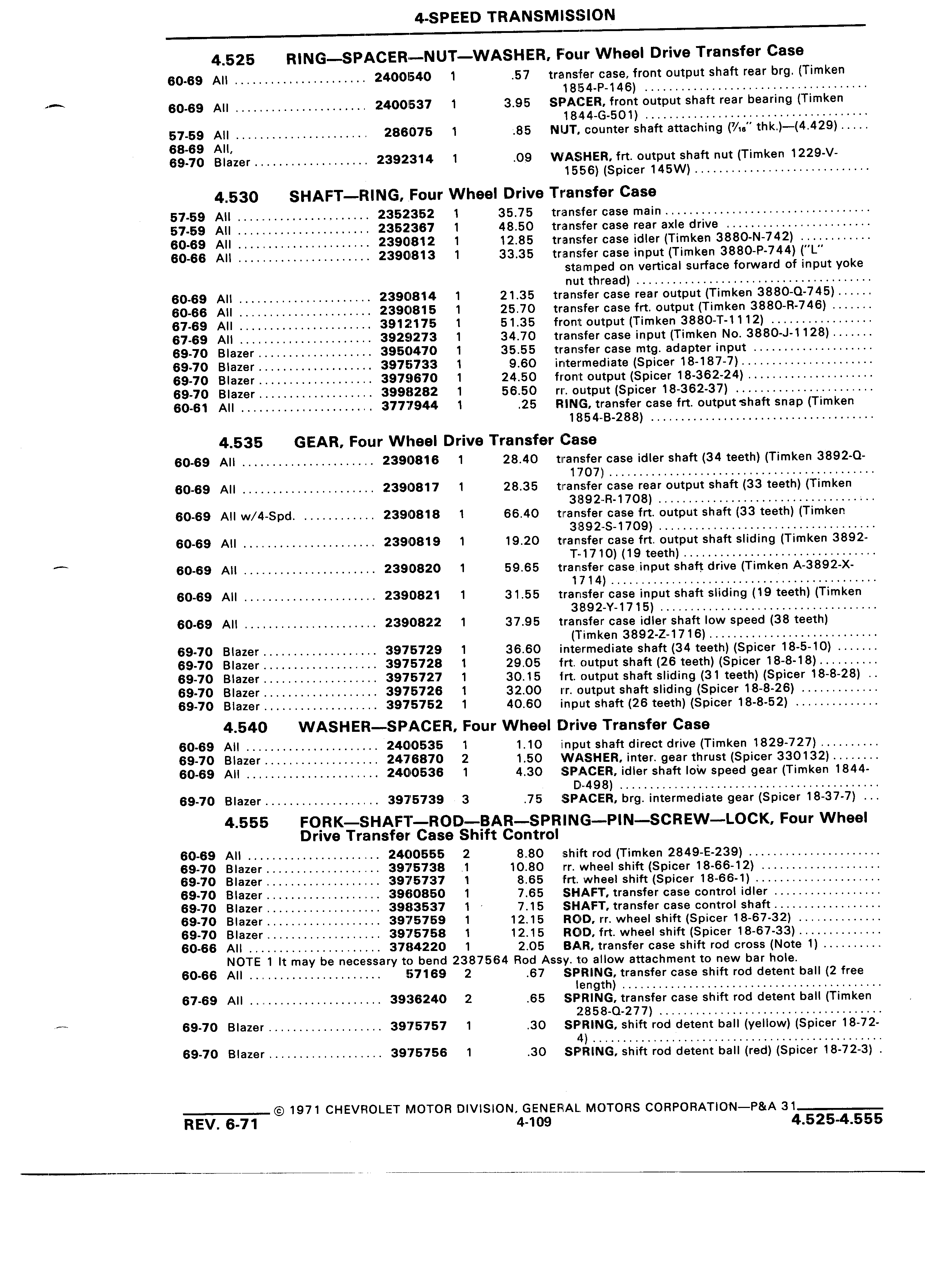

4 SPEED TRANSMISSION 4 525 RlNG SPACER NUT WASHER Four Wheel Drive Transfer Case 60 69 All 2400540 1 57 transfer case front output shaft rear brg Timken 1854 P 146 60 69 All 24004537 1 3 95 SPACER front output shaft rear bearing Timken 1844 G 501 57 59 AII 286 075 1 85 NUT counter shaft attaching Va thk 4 429 68 69 All 69 70 Blazer 2392314 1 09 WASHER frt output shaft nut Timken 1229 V 1556 Spicer 145W 4 530 SHAFT RlNG Four Wheel Drive Transfer Case 57 59 All 2352352 I 35 75 transfer case main 57 59 All 2352367 1 48 50 transfer case rear axle drive 60 69 All 2390812 1 12 85 transfer case idler Timken 3880 N 742 60 66 All 2390813 1 33 35 transfer case input Timken 3880 P 744 L stamped on vertical surface forward of input yoke nut thread 60 69 All 2390814 1 21 35 transfer case rear output Timken 3880 O 745 60 66 All 239Cl815 1 25 70 transfer case frt output Timken 3880 R 746 67 69 All 39122175 1 51 35 front output Timken 3880 T 1112 67 69 All 3929273 1 34 70 transfer case input Timken No 3880 J 1128 69 70 Blazer 3950470 1 35 55 transfer case mtg adapter input 69 70 Blazer 3975733 1 9 60 intermediate Spicer 18 187 7 69 70 Blazer 3979670 1 24 50 front output Spicer 18 362 24 69 70 Blazer 3998282 1 56 50 rr output Spicer 18 362 37 60 61 All 3777944 1 25 RING transfer case frt output shaft snap Timken 1854 B 288 4 535 GEAR Four Wheel Drive Transfer Case 60 69 All 2390816 1 28 40 transfer case idler shaft 34 teeth Timken 3892 0 1707 60 69 All 23940817 1 28 35 transfer case rear output shaft 33 teeth Timken 31592 R 1708 60 69 All w 4 Spd 23940818 1 66 40 transfer case frt output shaft 33 teeth Timken 31392 S 1709 60 69 All 23940819 1 19 20 transfer case frt output shaft sliding Timken 3892 T 1710 19 teeth 60 69 All 23940820 1 59 65 transfer case input shaft drive Timken A 3892 X 1714 60 69 All 2390821 1 31 55 transfer case input shaft sliding 19 teeth Timken 3892 Y 1715 60 69 All 2390822 1 37 95 transfer case idler shaft low speed 38 teeth Timken 3892 Z 1716 69 70 Blazer 3975729 1 36 60 intermediate shaft 34 teeth Spicer 18 5 10 69 70 Blazer 3975728 1 29 05 frt output shaft 26 teeth Spicer 18 8 18 69 70 Blazer 3975727 1 30 15 frt output shaft sliding 31 teeth Spicer 18 8 28 69 70 Blazer 3975726 1 32 00 rr output shaft sliding Spicer 18 8 26 69 70 Blazer 3975752 1 40 60 input shaft 26 teeth Spicer 18 8 52 4 540 WASHER SP ACER Four Wheel Drive Transfer Case 60 69 All 2400535 1 1 10 input shaft direct drive Timken 1829 727 69 70 Blazer 247 6870 2 1 50 WASHER inter gear thrust Spicer 330132 60 69 All 2400536 1 4 30 SPACER idler shaft loin speed gear Timken 1844 D 498 69 70 Blazer 3975739 3 75 SPACER brg intermediate gear Spicer 18 37 7 4 555 FQRK SHAF l ROD BAR SPRING PIN SCREW LOCK Four Wheel Drive Transfer Case Shift Control 60 69 All 2400555 2 8 80 shift rod Timken 2849 E 239 69 70 Blazer 3975738 1 10 80 rr wheel shift Spicer 18 66 12 69 70 Blazer 3975737 1 8 65 frt wheel shift Spicer 18 66 1 69 70 Blazer 3980850 1 7 65 SHAFT transfer case control idler 69 70 Blazer 3983537 1 V 7 15 SHAFT transfer case control shaft 69 70 Blazer 3975759 1 12 15 ROID rr wheel shift Spicer 18 67 32 69 70 Blazer 3975758 1 12 15 ROD frt wheel shift Spicer 18 67 33 60 66 All 3784220 1 2 05 BAR transfer case shift rod cross Note 1 NOTE 1 It may be necessary to bend 2387564 Rod Assy to allow attachment to new bar hole 60 66 All 57169 2 67 SPRING transfer case shift rod detent ball 2 free length 67 69 All 3936240 2 65 SPRING transfer case shift rod detent ball Timken 2858 O 277 r 69 70 Blazer 3975757 1 30 SPRING shift rod detent ball yellow Spicer 18 72 4 69 70 Blazer 3975756 1 30 SPRING shift rod detent ball red Spicer 18 72 3 T 1971 CHEVFIOLET MOTOR DIVISION GENEFLAL MOTORS CORPORATlON P A 31 REV 6 71 4 109 4 525 4 555
