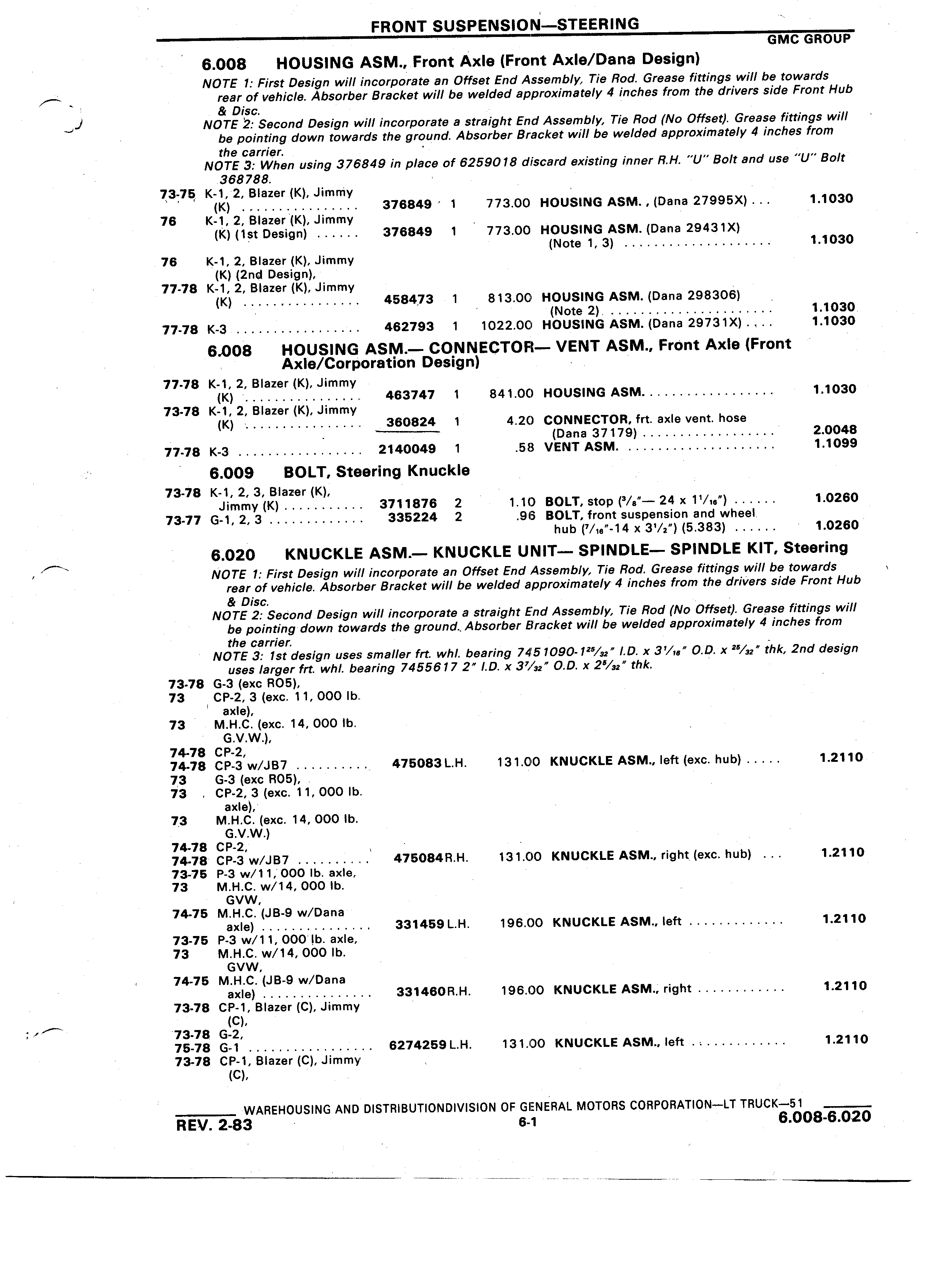

FRONT SUSPENSION STEERING V GMC GROUP 6 008 HOUSING ASM Front Axle Front Axle Dana Design NOTE 1 First Design will incorporate an Offset End Assembly Tie Bod Grease fittings will be towards rear of vehicle Absorber Bracket will be welded approximately 4 inches from the drivers side Front Hub l Disc Y NOTE 2 Second Design will incorporate a straight End Assembly Tie Rod No Offset Grease fittings will be pointing down towards the ground Absorber Bracket will be we ded approximately 4 inches from the carrier 4 NOTE 3 When using 376849 in place of 6259018 discard existing inner H H U Bolt and use U Bolt 368788 1 73 75 K 1 2 Blazer K Jimmy V K 376849 1 773 00 HOUSING ASM Dana 27995X 1 1030 76 K 1 2 Blazer K Jimmy K lst Design 376849 1 773 00 HOUSING ASM Dana 29431X Note 1 3 1 1030 76 K 1 2 Blazer K Jimmy K 2nd Design 77 78 K 1 2 Blazer K Jimmy K 458473 1 813 00 HOUSING ASM Dana 298306 A Note 2 1 1030 77 78 K 3 462793 1 1022 00 HOUSING ASM Dana 29731X 1 1030 6 008 HOUSING ASM CONNECTOFI VENT ASM Front Axle Front f Axle Corporation Design l 77 78 K 1 2 Blazer K Jimmy K 463747 1 841 00 HOUSING ASM 1 1030 73 78 K 1 2 Blazer K Jimmy K 360824 1 4 20 CONNECTOR frt axle vent hose Dana 37179 2 0048 r 77 78 K 3 2140049 1 58 VENT ASM 1 1099 6 009 BOLT Steering Knuckle 73 78 K 1 2 3 Blazer K Jimmy K 3711876 2 1 10 BOLT stop 24 x 1 I 1 0260 73 77 G 1 2 3 335224 2 96 BOLT front suspension and wheel hub m 14 x 3 5 383 i 1 0260 6 020 KNUCKLE ASM KNUCKLE UNIT SPINDLE SPINDLE KIT Steering NOTE 1 First Design will incorporate an Offset End Assembly Tie Rod Grease fittings will be towards rear of vehicle Absorber Bracket will be welded approximately 4 inches from the drivers side Front Hub Disc NOTE 2 Second Design will incorporate a straight End Assembly Tie Rod No Offset Grease fittings will be pointing down towards the ground Absorber Elracket will be welded approximately 4 inches from the carrier NOTE 3 1st design uses smaller frt whl bearing 745 1090 1 5 I D x 3 O D x thk 2nd design uses larger frt whl bearing 7455617 2 l D x 3 O D x 2 thk 73 78 G 3 exc RO5 73 CP 2 3 exc 11 000 Ib 1 axle 73 M H C exc 14 000 lb G V W 74 78 CP 2 74 78 CP 3 w JB7 475083 L H 131 00 KNUCKLE ASM left exc hub 1 2110 73 G 3 exc RO5 73 CP 2 3 exc 11 000 Ib axle 7 3 M H C exc 14 000 lb G V W 74 78 CP 2 74 78 CP 3 w JB7 475084R H 131 00 KNUCKLE ASM right exc hub 1 2110 73 75 P 3 w 11 000 lb axle 73 M H C w 14 000 lb V I GVW 74 75 M H C JB 9 w Dana axle 331459 L H 196 00 KNUCKLE ASM left 1 2110 73 75 P 3 w 11 000 lb axle 73 M H C w 14 000 Ib GVW 74 75 M H C JB 9 w Dana axle 331460R H 196 00 KNUCKLE ASM right 1 2110 73 78 CP 1 Blazer C Jimmy Cl 73 78 G 2 75 78 G 1 6274259 L H 131 00 KNUCKLE ASM left 1 2110 i 73 78 CP 1 Blazer C Jimmy C 1 WAREHOUSING AND DISTRIBUTIONDIVISION OF GENERAL MOTORS CORPORATION LT TRUCK 51 REV 2 83 6 1 6 008 6 020
