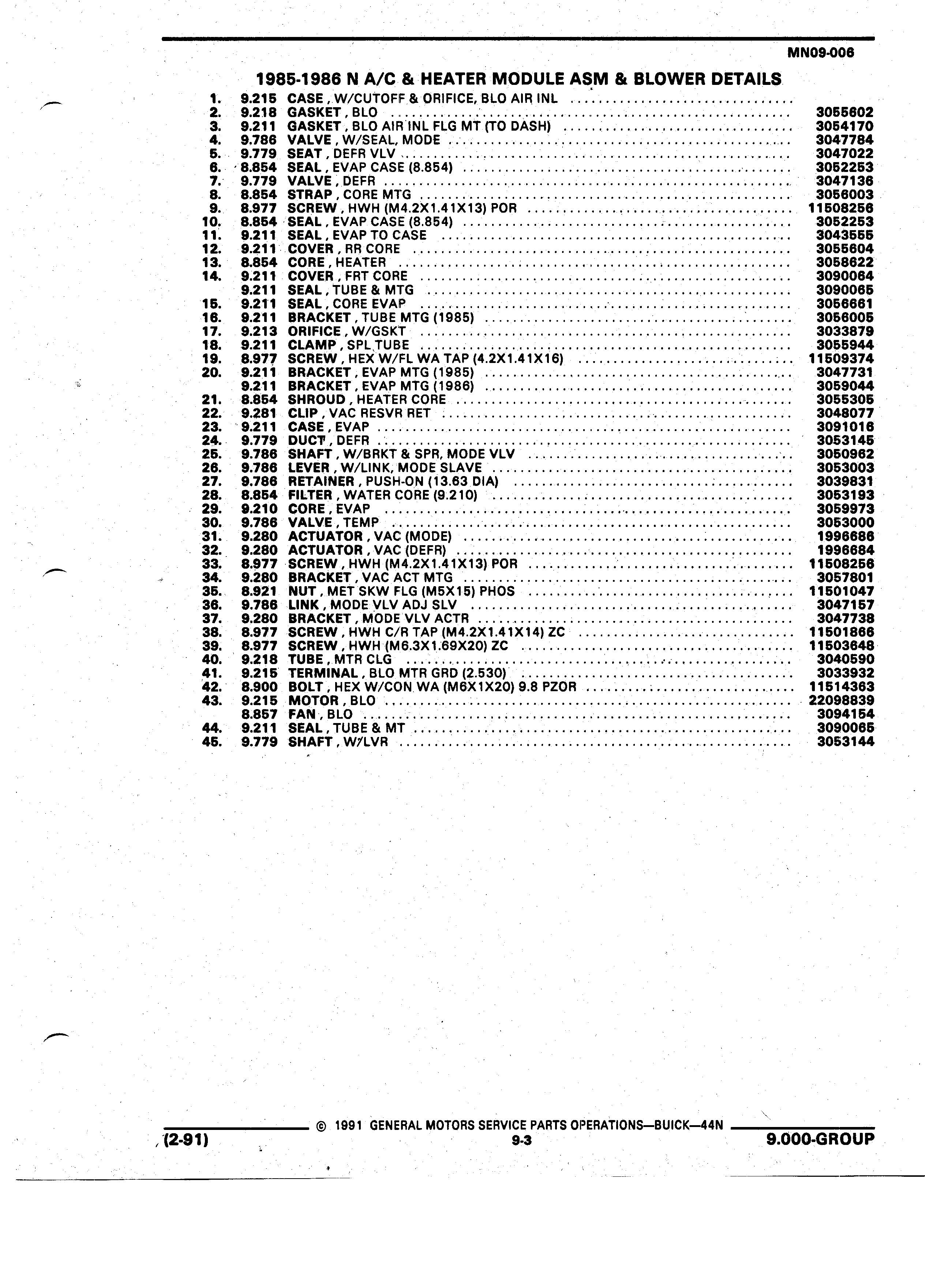

I MN09 006 6 1985 1986 N A C HEATER MODULE ASM BLOWER DETAILS V I 1 9 215 CASE W CUTOFF ORIFICE BLO AIR INL I 2 9 218 GASKET BLO 3055602 3 9 211 GASKET BLO AIR INL FLG MT TO DASH I 3 054170 4 9 786 VALVE W SEAL MODE 3047784 5 9 779 SEAT DEFR VLV 3047022 6 8 854 SEAL EVAP CASE 8 854 3052253 7 9 779 VALVE DEFR 3047136 8 8 854 STRAP CORE MTG 3 3056003 9 8 977 SCREW HWH M4 2X1 41X13 POR 11508256 A 10 8 854 SEAL EVAP CASE 8 854 3052253 1 1 9 21 1 SEAL EVAP TO CASE 3043555 12 9 211 COVER RR CORE 3055604 13 8 854 CORE HEATER 3058622 14 9 211 COVER FRT CORE 3090064 9 211 SEAL TUBE MTG 3090065 15 9 211 SEAL CORE EVAP 3056661 16 9 211 BRACKET TUBE MTG 1985 3056005 17 9 213 ORIFICE W GSKT 3 033879 I 18 9 211 CLAMP SPL TU BE 3055944 I I 19 8 977 SCREW HEX W FL WA TAP 4 2X1 41X16 11509374 V 20 9 211 BRACKET EVAP MTG 1985 3047731 I 9 211 BRACKET EVAP MTG 1986 3059044 I 21 8 854 SHROUD HEATER CORE 3055305 I 22 9 281 CLIP VAC RESVR RET 3048077 I 23 9 211 CASE EVAP 3091016 24 9 779 DUCT DEFR 3053145 25 9 786 SHAFT W BRKT SPR MODE VLV 3050962 26 I 9 786 LEVER W LINK MODE SLAVE 3053003 27 9 786 RETAINER PUSH ON 13 63 DIA 3039831 28 8 854 FILTER WATER CORE 9 210 3053193 I 29 9 210 CORE EVAP Q 3059973 30 9 786 VALVE TEMP A 3053000 31 9 280 ACTUATOR VAC MODE L 1996686 32 9 280 ACTUATOR VAC DEFR A 1996684 33 8 977 SCREW HWH M4 2X1 41X13 POR A 11508256 34 9 280 BRACKET VAC ACT MTG 3057801 35 8 921 NUT MET SKW FLG M5X15 PHOS 11501047 36 9 786 LINK MODE VLV ADJ SLV 3047157 I 37 9 280 BRACKET MODEZIVLV ACTR 3047738 38 8 977 SCREW HWH C R TAP M4 2X1 41X14 ZC 11501866 39 8 977 SCREW HWH M 6 3X 1 69X20 ZC 11503648 40 9 218 TUBE MTR CLG 3040590 41 9 215 TERMINAL BLO MTR GRD 2 530 3033932 42 8 900 BOLT HEX W CONWA M6 X1X20 9 8 PZOR 11514363 43 9 215 MOTOR BLO 22098839 8 857 FAN BLO 3094154 44 9 211 SEAL TUBE MT 3090065 45 9 779 SHAFT WYLVR 3 3053144 I x 1991 GENERAL MOTORS SERVICE PARTS O ERATIONS BUICK 44N I2 91 I 3 s s 9 000 GROUP
