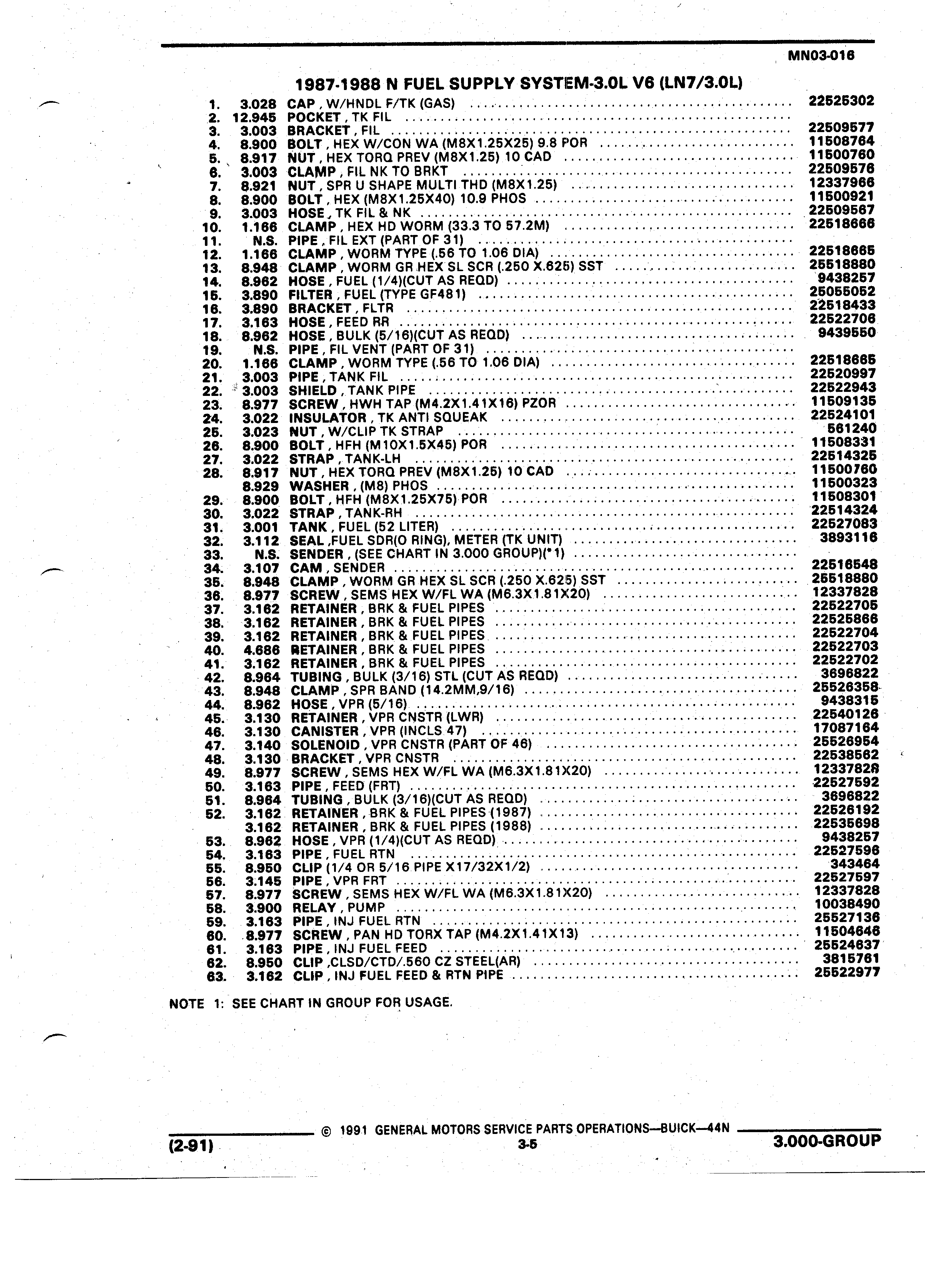

V A I A I MN03 016 1987 1988 N FUEL SUPPLY SYSTIEM 3 0L V6 LN7 3 0LI 4 I 1 3 028 CAP W HNDL F TK GAS I I 22525302 2 12 945 POCKET TK FIL 3 3 003 BRACKET FIL 22509577 4 8 900 BOLT HEX W CON WA M8X1 25X25 9 8 POR 11508764 5 8 917 NUT HEX TORO PREV M8X1 25 10 CAD 11500760 6 3 003 CLAMP FIL NK TO BRKT Q 22509576 7 8 921 NUT SPR U SHAPE MULTI THD M8X1 25 12337966 8 8 900 BOLT HEX M8X1 25X40 10 9 PHOS 11500921 9 3 003 HOSE TK FIL NK 22509567 10 1 168 CLAMP HEX HD WORM 33 3 TO 57 2M 22518666 1 1 N S PIPE FIL EXT PART OF 31 I I 12 1 166 CLAMP WORM TYPE 56 TO 1 06 DIA 22518665 13 8 948 CLAMP WORM GR HEXISL SCR 250 X 625 SST I 25518880 14 8 962 HOSE FUEL 1 4 CUT AS REOD Q 9438257 I 15 3 890 FILTER FUEL TYPE GF481 25055052 16 3 890 BRACKET FLTR 22518433 I 17 3 163 HOSE FEED RR 22522706 18 8 962 HOSE BULK 5 16 CUT AS REOD 9439550 I 19 N S PIPE FIL VENT PART OF 31 Q I 20 1 166 CLAMP WORM TYPE 56 TO 1 06 DIA I 22518665 21 3 003 PIPE TANK FIL 22520997 22 I 3 003 SHIELD TANK PIPE 22522943 23 8 977 SCREW HWH TAP M4 2X1 41X16 PZOR 11509135 24 3 022 INSULATOR TK ANTI SOUEAK 22524101 l 25 3 023 NUT W CLIP TK STRAP L 561240 26 8 900 BOLT HFH M 10X1 5X45 POR 11508331 27 3 022 STRAP TANK LH 22514325 28 8 917 NUT HEX TORO PREV M8X1 25 10 CAD 1 1500760 8 929 WASHER M8 PHOS 11500323 29 5 8 900 BOLT HFH M8X1 25X75 vPOR 11508301 30 3 022 STRAP TANK RH 22514324 31 3 001 TANK FUEL 52 LITER 22527083 I 32 3 112 SEAL FUEL SDR O RING METER TK UNIT 3893116 33 N S SENDER SEE CHART IN 3 000 GROUP 1 r I 34 3 107 CAM SENDER 22516548 35 8 948 CLAMP WORM GR HEX SL SCR 250 X 62 5 SST 25518880 36 8 977 SCREW SEMS HEX W FL WA M6 3X1 81 20 12337828 37 3 162 RETAINER BRK FUEL PIPES I 22522705 38 3 162 RETAINER BRK FUEL PIPES I 22525866 39 3 162 RETAINER BRK FUEL PIPES 22522704 I 40 4 686 RETAINER BRK FUEL PIPES 22522703 41 3 162 RETAINER BRK FUEL PIPES 22522702 I 42 8 964 TUBING BULK 3 16 STL CUT AS REOD 3696822 43 8 948 CLAMP SPR BAND 14 2MM 9 16 25526358 I 44 8 962 HOSE VPR 5 16 9438315 45 3 130 RETAINER VPR CNSTR LWR 22540126 46 3 130 CANISTER VPR INCLS 47 17087164 47 3 140 SOLENOID VPR CNSTR PART OF 46 25526954 48 3 130 BRACKET VPR CNSTR 22538562 I 49 8 977 SCREW SEMS HEX W FL WA M6 3X1 81 20 12337828 50 3 163 PIPE FEED FRT 22527592 51 8 964 TUBING BULK 3 16 CUT AS REOD 3696822 52 3 162 RETAINER BRK FUEL PIPES 1987 22526192 3 162 RETAINER BRK FUEL PIPES 1988 22535698 I 53 8 962 HOSE VPR 1 4 CUT AS REOD 9438257 54 3 163 PIPE FUEL RTN 22527596 I 55 8 950 CLIP 1 4 OR 5 16 PIPE X17 32X1 2 343464 56 3 145 PIPE VPR FRT 22527597 I 57 8 977 SCREW SEMS HEX W FL WA M6 3X1 81 20 12337828 58 3 900 RELAY PUMP 10038490 I 59 3 163 PIPE INJ FUEL RTN 25527136 60 8 977 SCREW PAN HD TORX TAP M4 2X1 41X13 11504646 61 3 163 PIPE INJ FUEL FEED 25524637 62 8 950 CLIP CLSD CTD 560 CZ STEEL AR 3815761 63 3 162 CLIP INJ FUEL FEED RTN PIPE 25522977 NOTE 1 SEE CHART IN GROUP FOR USAGE I A t 199 1 GENERAL MOTORS SERVICE PARTS 0PERATIONS BUICK 44N j 2 91 3 5 3 000 GROUP I
