Parts and Illustration Catalog 30 March 1958
PrevPrevious Page - Parts and Illustration Catalog 30 March 1958Parts and Illustration Catalog 30 March 1958Next Page - Parts and Illustration Catalog 30 March 1958Next
2968641
2968641
1513130
1513130
1513134
1513134
3722959
3722959
3726641
3726641
3726643
3726643
5573977
5573977
3836756
3836756
5298971
5298971

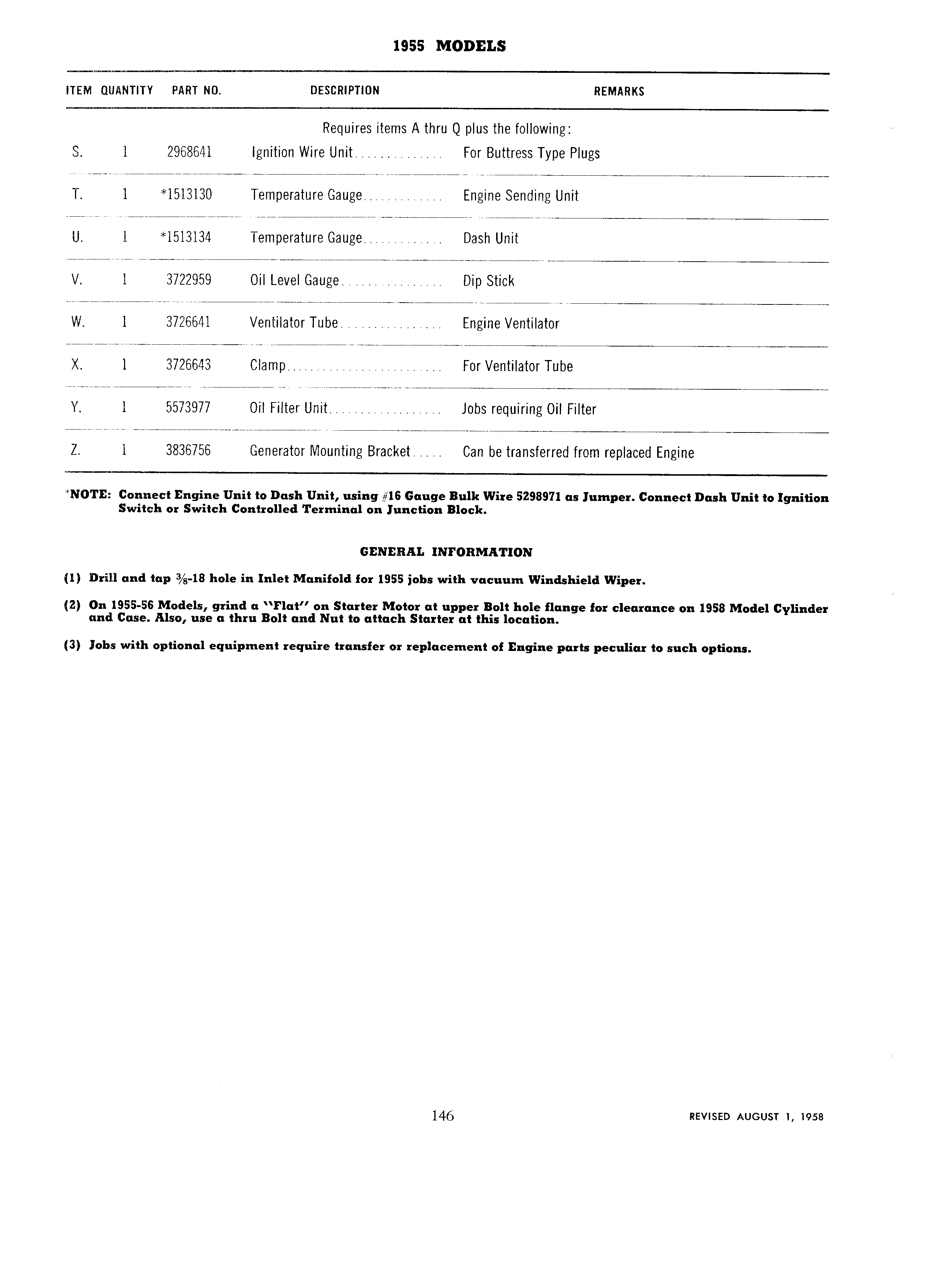

1955 MODELS ITEM OUANTITY PART N0 DESCRIPTION REMARKS Requires items A thru Q plus the following S 1 2968641 Ignition Wire Unit s4 For Buttress Type Plugs T 1 1513130 Temperature Gauge tt Engine Sending Unit U 1 1513134 Temperature Gauge et s Dash Unit V 1 3722959 Oil Level Gauge Dip Stick W 1 3726641 Ventilator Tube Engine Ventilator X 1 3726643 Clamp For Ventilator Tube Y 1 5573977 Oil Filter Unit Jobs requiring Oil Filter Z 1 3836756 Generator Mounting Bracket Can be transferred from replaced Engine NOTE Connect Engine Unit to Dash Unit using 16 Gauge Bulk Wire 5298971 as Jumper Connect Dash Unit to Ignition Switch or Switch Controlled Terminal on Junction Block GENERAL INFORMATION 1 Drill and tap 18 hole in Inlet Manifold for 1955 jobs with vacuum Windshield Wiper 2 On 1955 56 Models grind a lat on Starter Motor at upper Bolt hole flange for clearance on 1958 Model Cylinder and Case Also use a thru Bolt and Nut to attach Starter at this location 3 Jobs with optional equipment require transfer or replacement of Engine parts peculiar to such options 146 Rsvisao Aucusr 1 wsa
