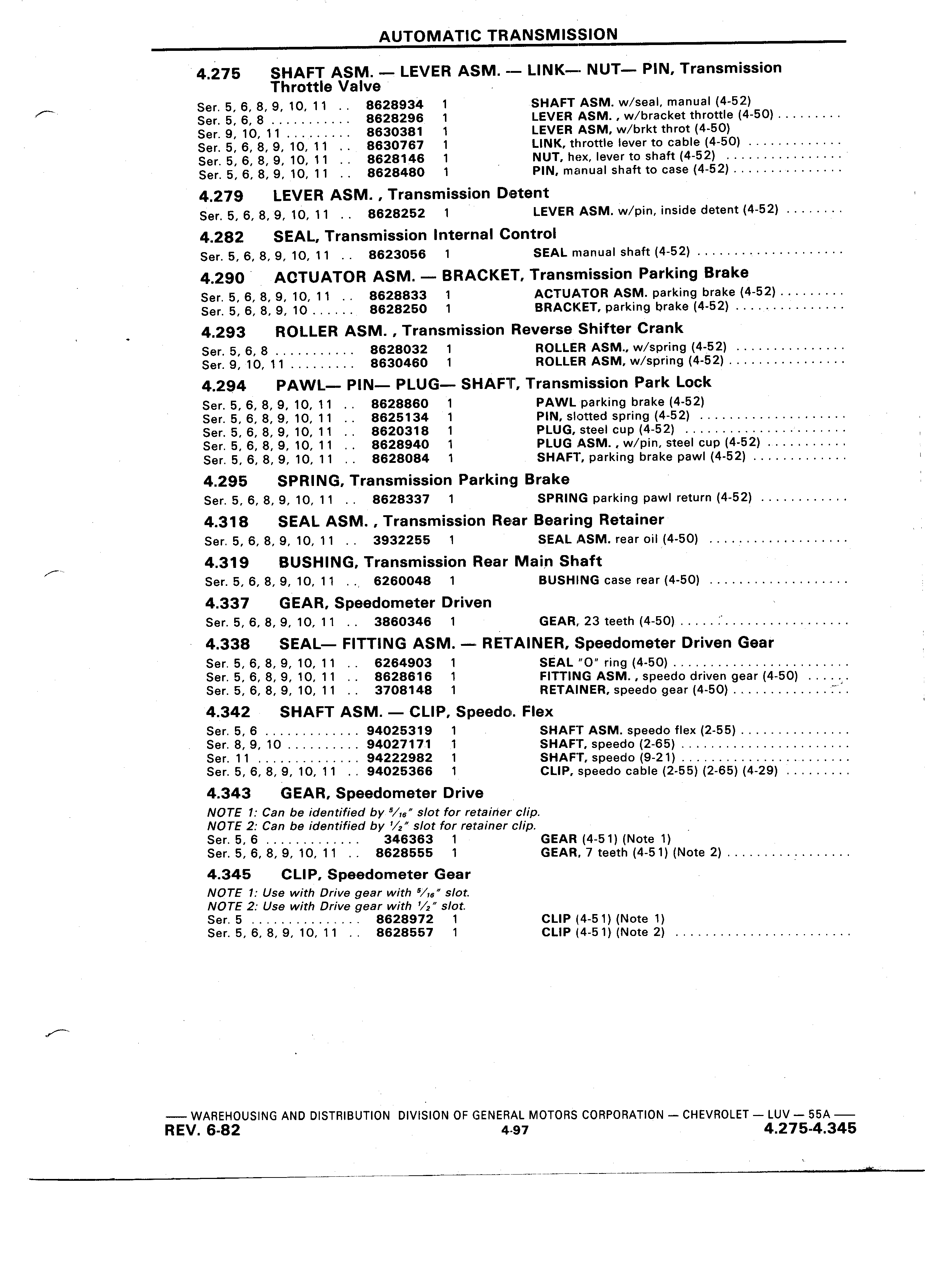

AUTOMATIC TRANSMISSION 4 275 SHAFT ASM LEVER ASM LINK NUT PIN Transmission Throttle Valve Ser 5 6 8 9 10 11 8628934 1 SHAFT ASM w seal manual 4 52 i Ser 5 6 8 8628296 1 LEVER ASM w bracket throttle 4 50 Ser 9 10 11 8630381 1 LEVER ASM w brkt throt 4 50 Ser 5 6 8 9 10 11 8630767 1 LINK throttle lever to cable 4 50 Ser 5 6 8 9 10 11 8628146 1 NUT hex lever to shaft 4 52 Ser 5 6 8 9 10 11 8628480 1 V PIN manual shaft to case 4 52 4 279 LEVER ASM Transmission Detent T Ser 5 6 8 9 10 11 8628252 1 LEVER ASM w pin inside detent 4 52 4 282 SEAL Transmission Internal Control Ser 5 6 8 9 10 11 8623056 1 SEAL manual shaft 4 52 4 290 ACTUATOR ASM BRACKET Transmission Parking Brake Ser 5 6 8 9 10 11 8628833 1 ACTUATOR ASM parking brake 4 52 Ser 5 6 8 9 10 8628250 1 BRACKET parking brake 4 52 4 293 ROLLER ASM Transmission Reverse Shifter Crank Ser 5 6 8 8628032 1 ROLLER ASM w spring 4 52 Ser 9 10 11 8630460 1 ROLLER ASM w spring 4 52 4 294 PAWL PIN PLUG SHAFT Transmission Park Lock Ser 5 6 8 9 10 11 8628860 1 PAWL parking brake 4 52 Ser 5 6 8 9 10 11 8625134 1 PIN slotted spring 4 52 Ser 5 6 8 9 10 11 8620318 1 PLUG steel cup 4 52 Ser 5 6 8 9 10 11 8628940 1 PLUG ASM w pin steel cup 4 52 Ser 5 6 8 9 10 11 8628084 1 SHAFT parking brake pawl 4 52 4 295 SPRING Transmission Parking Brake I Ser 5 6 8 9 10 11 8628337 1 SPRING parking pawl return 4 52 4 318 SEAL ASM Transmission Rear Bearing Retainer Ser 5 6 8 9 10 11 3932255 1 SEAL ASM rear oil 4 50 4 319 BUSHING Transmission Rear Main Shaft Ser 5 6 8 9 10 11 6260048 1 BUSHING case rear 4 50 4 337 GEAR Speedometer Driven Ser 5 6 8 9 10 11 3860346 1 GEAR 23 teeth 4 50 Z 4 338 SEAL FITTING ASM RE I AlNER Speedometer Driven Gear Ser 5 6 8 9 10 11 6264903 1 SEAL O ring 4 50 Ser 5 6 8 9 10 11 8628616 1 FITTING ASM speedo driven gear 4 50 Ser 5 6 8 9 10 11 3708148 1 RETAINER speedo gear 4 50 4 342 SHAFT ASM CLIP Speedo Flex Ser 5 6 94025319 1 SHAF I ASM speedo flex 2 55 Ser 8 9 10 94027171 1 SHAFT speedo 2 65 Ser 1 1 94222982 1 SHAF l speedo 9 21 Ser 5 6 8 10 11 94025366 1 CLIP speedo cable 2 55 2 65 4 29 4 343 GEAR Speedometer Drive NOTE 1 Can be identified by 5 m Slot for retainer clip NOTE 2 Can be identified by slot for retainer clip Ser 5 6 346363 1 GEAR 4 51 Note 1 Ser 5 6 8 9 10 11 8628555 1 GEAR 7 teeth 4 51 Note 2 4 345 CLIP Speedometer Gear NOTE 1 Use with Drive gear with 5 1s slot NOTE 2 Use with Drive gear with A slot Ser 5 8628972 1 CLIP 4 51 Note 1 Ser 5 6 8 9 10 11 8628557 1 CLIP 4 51 Note 2 WAREHOUSING AND DISTRIBUTION DIVI9lON OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A REV 6 82 4 97 4 275 4 345 AM m 7 wma A 4
