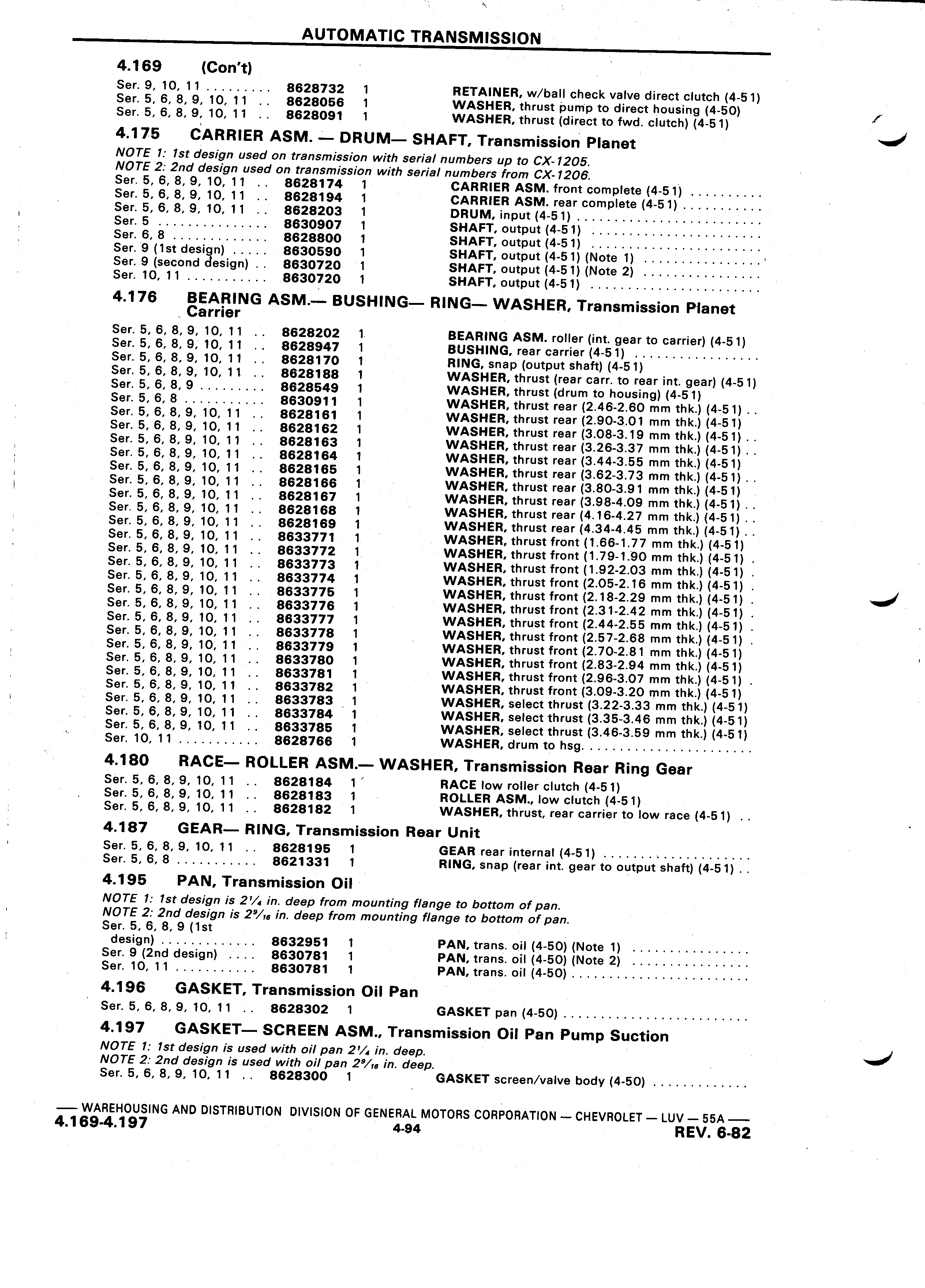

g r ET TT AUTOMATIC TRANSMISSION 4 169 Con t Ser 9 10 11 8628732 1 RETAINER w ball check valve direct clutch 4 51 Ser 5 6 8 9 10 11 8628056 1 WASHER thrust pump to direct housing 4 50 Ser 5 6 8 9 10 11 8628091 1 WASHER thrust direct to fwd clutch 4 51 4 175 CARRIER ASM DRUM SHAFT Transmission Planet NOTE 1 1st design used on transmission with serial numbers up to CX 1205 NOTE 2 2nd design used on transmission with serial numbers from CX 1206 A Ser 5 6 8 9 10 11 8628174 1 CARRIER ASM front complete 4 51 Ser 5 6 8 9 10 11 8628194 1 CARRIER ASM rear complete 4 51 Ser 5 6 8 9 10 11 8628203 1 DRUM input 4 51 7 Ser 5 8630907 1 SHAFT output 4 51 i Ser 6 8 8628800 1 SHAFT output 4 51 Ser 9 1st design 8630590 1 SHAFT output 4 51 Note 1 Ser 9 second design 8630720 1 SHAFT output 4 51 Note 2 i Ser 10 1 1 8630720 1 SHAFT output 4 51 4 176 BEARING ASM BUSHING RING WASHER Transmission Planet Carrier Ser 5 6 8 9 10 11 8628202 1 BEARING ASM roller int gear to carrier 4 51 Ser 5 6 8 9 10 11 8628947 1 BUSHING rear carrier 4 51 Ser 5 6 8 9 10 11 8628170 1 RING snap output shaft 4 51 Ser 5 6 8 9 10 11 8628188 1 WASHER thrust rear carr to rear int gear 4 51 Ser 5 6 8 9 8628549 1 WASHER thrust drum to housing 4 51 Ser 5 6 8 8630911 1 WASHER thrust rear 2 46 2 60 mm thk 4 51 I Ser 5 6 8 9 10 11 8628161 1 WASHER thrust rear 2 90 3 01 mm thk 4 51 Ser 5 6 8 9 10 11 8628162 1 WASHER thrust rear 3 08 3 19 mm thk 4 51 Ser 5 6 8 9 10 11 8628163 1 WASHER thrust rear 3 26 3 37 mm thk 4 51 Ser 5 6 8 9 10 11 8628164 1 WASHER thrust rear 3 44 3 55 mm thk 4 51 Ser 5 6 8 9 10 11 8628165 1 WASHER thrust rear 3 62 3 73 mm thk 4 51 Ser 5 6 8 9 10 11 8628166 1 WASHER thrust rear 3 80 3 91 mm thk 4 51 Ser 5 6 8 9 10 11 8628167 1 WASHER thrust rear 3 98 4 09 mm thk 4 51 Ser 5 6 8 9 10 11 8628168 1 WASHER thrust rear 4 16 4 27 mm thk 4 51 Ser 5 6 8 9 10 11 8628169 1 WASHER thrust rear 4 34 4 45 mm thk 4 51 Ser 5 6 8 9 10 11 8633771 1 WASHER thrust front 1 66 1 77 mm thk 4 51 Ser 5 6 8 9 10 11 8633772 1 WASHER thrust front 1 79 1 90 mm thk 4 51 Ser 5 6 8 9 10 11 8633773 1 WASHER thrust front 1 92 2 03 mm thk 4 51 Ser 5 6 8 9 10 11 8633774 1 WASHER thrust front 2 05 2 16 mm thk 4 51 i Ser 5 6 8 9 10 11 8633775 1 WASHER thrust front 2 18 2 29 mm thk 4 51 3 Ser 5 6 8 9 10 11 8633776 1 WASHER thrust front 2 31 2 42 mm thk 4 51 Ser 5 6 8 9 10 11 8633777 1 WASHER thrust front 2 44 2 55 mm thk 4 51 Ser 5 6 8 9 10 11 8633778 1 WASHER thrust front 2 57 2 68 mm thk 4 51 Ser 5 6 8 9 10 11 8633779 1 WASHER thrust front 2 70 2 81 mm thk 4 51 i Ser 5 6 8 9 10 11 8633780 1 WASHER thrust front 2 83 2 94 mm thk 4 51 Ser 5 6 8 9 10 11 8633781 1 WASHER thrust front 2 96 3 07 mm thk 4 51 Ser 5 6 8 9 10 11 8633782 1 WASHER thrust front 3 09 3 20 mm thk 4 51 Ser 5 6 8 9 10 11 8633783 V 1 WASHER select thrust 3 22 3 33 mm thk 4 51 Ser 5 6 8 9 10 11 8633784 1 WASHER select thrust 3 35 3 46 mm thk 4 51 Ser 5 6 8 9 10 11 8633785 1 WASHER select thrust 3 46 3 59 mm thk 4 51 Ser 10 11 8628766 1 WASHER drum to hsg i 4 180 RACE ROLLER ASM WASHER Transmission Rear Ring Gear Ser 5 6 8 9 10 11 8628184 1 RACE low roller clutch 4 51 Ser 5 6 8 9 10 11 8628183 1 ROLLER ASM low clutch 4 51 Ser 5 6 8 9 10 11 8628182 1 WASHER thrust rear carrier to low race 4 51 i 4 187 GEAR RING Transmission Rear Unit Ser 5 6 8 9 10 11 8628195 1 GEAR rear internal 4 51 Ser 5 6 8 8621331 1 RING snap rear int gear to output shaft 4 51 4 195 PAN Transmission Oil NOTE 1 1st design is 2 in deep from mounting flange to bottom of pan NOTE 2 2nd design is 2 6 in deep from mounting flange to bottom of pan Ser 5 6 8 9 1st l design 8632951 1 PAN trans oil 4 50 Note 1 Ser 9 2nd design 8630781 1 PAN trans oil 4 50 Note 2 A Ser 10 11 8630781 1 PAN trans oil 4 50 4 196 GASKET Transmission Oil Pan I Ser 5 6 8 9 10 11 8628302 1 GASKET pan 4 50 4 197 GASKET SCREEN ASM Transmission Oil Pan Pump Suction NOTE 1 1st design is used with oil pan 2 A in deep NOTE 2 2nd design is used with oil pan 2 iq in deep r Ser 5 6 8 9 10 1 1 8628300 1 GASKET screen valve body 4 50 WAREHOUSING AND DISTRIBUTION DIVISION 0F GENERAL MOTORS CORFORATION CHEVROLET LUV 55A 4 169 4 1 97 4 94 REV 6 82
