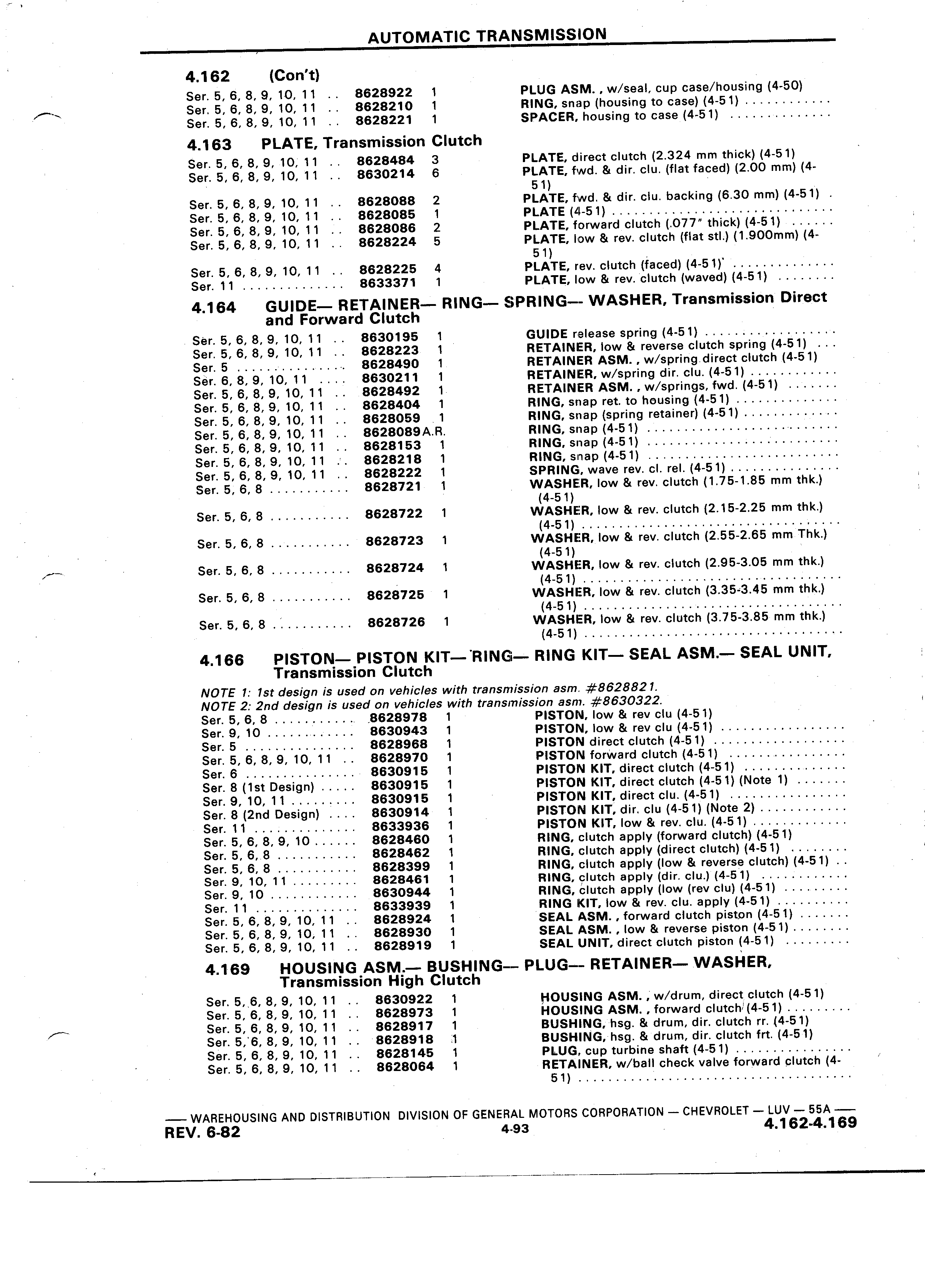

AUTOMATIC TRANSMISSION 4 1 62 Con t I Ser 5 6 8 9 10 11 8628922 1 PLUG ASM w seal cup case housing 4 50 Ser 5 6 8 9 10 11 8628210 1 RING snap housing to case 4 51 Ser 5 6 8 9 10 11 8628221 1 SPACER housing to case 4 51 4 163 PLATE Transmission Clutch Ser 5 6 8 9 10 11 8628484 3 PLATE direct clutch 2 324 mm thick 4 51 Ser 5 6 8 9 10 11 8630214 6 PLATE fwd dir clu flat faced 2 00 mm 4 Ser 5 6 8 9 10 11 8628088 2 PLATE fwd dir clu backing 6 30 mm 4 51 Ser 5 6 8 9 10 11 8628085 1 PLATE 4 51 Ser 5 6 8 9 10 11 8628086 2 PLATE forward clutch 077 thick 4 51 Ser 5 6 8 9 10 11 8628224 5 PLATE low rev clutch flat stl 1 900mm 4 51 V Ser 5 6 8 9 10 11 8628225 4 PLATE rev clutch faced 4 51 Ser 11 8633371 1 PLATE low rev clutch waved 4 51 4 164 GUIDE RETAINER RING SPRING WASHER Transmission Direct and Forward Clutch Ser 5 6 8 9 10 11 8630195 1 GUIDE release spring 4 51 Ser 5 6 8 9 10 11 8628223 1 RETAINER low reverse clutch spring 4 51 Ser 5 8628490 1 RETAINER ASM w springdirect clutch 4 51 Ser 6 8 9 10 11 8630211 1 RETAINER w spring dir clu 4 51 Ser 5 6 8 9 10 11 8628492 1 RETAINER ASM w springs fwd 4 51 Ser 5 6 8 9 10 11 8628404 1 RING snap ret to housing 4 51 Ser 5 6 8 9 10 11 8628059 1 RING snap spring retainer 4 51 Ser 5 6 8 9 10 11 8628089A R RING snap 4 51 Ser 5 6 8 9 10 11 8628153 1 RING snap 4 51 Ser 5 6 8 9 10 11 8628218 1 RING snap 4 51 Ser 5 6 8 9 10 11 8628222 1 SPRING wave rev cl rel 4 51 Ser 5 6 8 8628721 1 WASHER low rev clutch 1 75 1 85 mm thk 1 4 51 Ser 5 6 8 8628722 1 WASHER low rev clutch 2 15 2 25 mm thk 4 51 I Ser 5 6 8 8628723 1 WASHER low rev clutch 2 55 2 65 mm Thk r 4 51 A Ser 5 6 8 8628724 1 WASHER low rev clutch 2 95 3 05 mm thk 4 51 Ser 5 6 8 8628725 1 WASHER low rev clutch 3 35 3 45 mm thk 4 51 Ser 5 6 8 8628726 1 WASHER low rev clutch 3 75 3 85 mm thk 4 51 i 4 166 PISTON PISTON KIT RINGI RING KIT SEAL ASM SEAL UNIT I Transmission Clutch NOTE 1 1st design is used on vehicles with transmission asm 8628821 K NOTE 2 2nd design is used on vehicles with transmission asm 8630322 I Ser 5 6 8 8628978 1 PISTON low rev clu 4 51 Ser 9 10 8630943 1 PISTON low rev clu 4 51 Ser 5 8628968 1 PISTON direct clutch 4 51 Ser 5 6 8 9 10 11 8628970 1 PISTON forward clutch 4 51 Ser 6 8630915 1 PISTON KIT direct clutch 4 51 Ser 8 1st Design 8630915 1 PISTON KIT direct clutch 4 51 Note 1 Ser 9 10 11 8630915 1 PISTON KIT direct clu 4 51 Ser 8 2nd Design 8630914 1 PISTON KIT dir clu 4 51 Note 2 Ser 11 8633936 1 PISTON KIT low rev clu 4 51 Ser 5 6 8 9 10 8628460 1 RING clutch apply forward clutch 4 51 Ser 5 6 8 8628462 1 RING clutch apply direct clutch 4 51 Ser 5 6 8 8628399 1 RING clutch apply low reverse clutch 4 51 Ser 9 10 11 8628461 1 RING clutch apply dir clu 4 51 Ser 9 IO 8630944 1 RING clutch apply low rev clu 4 51 Ser 11 8633939 1 RING KIT low rev clu apply 4 51 Ser 5 6 8 9 10 11 8628924 1 SEAL ASM forward clutch piston 4 51 Ser 5 6 8 9 10 1 1 8628930 1 SEAL ASM low reverse piston 4 51 Ser 5 6 8 9 10 11 8628919 1 SEAL UNIT direct clutch piston 4 51 4 169 HOUSING ASM BUSHING PLUG RETAINER WASHER Transmission High Clutch Ser 5 6 8 9 10 11 8630922 1 HOUSING ASM f w drum direct clutch 4 51 Ser 5 6 8 9 10 11 8628973 1 HOUSING ASM forward c utchi 4 51 ff Ser 5 6 8 9 10 11 8628917 1 BUSHING hsg drum dir clutch rr 4 51 Ser 5 6 8 9 10 11 8628918 I1 BUSHING hsg drum dir clutch frt 4 51 Ser 5 6 8 9 10 11 8628145 1 PLUG cup turbine shaft 4 51 e Ser 5 6 8 9 10 11 8628064 1 RETAINER w ball check valve forward clutch 4 I 51 WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A REV 6 82 4 es 4 162 4 1 69 2s a A n 2 O
