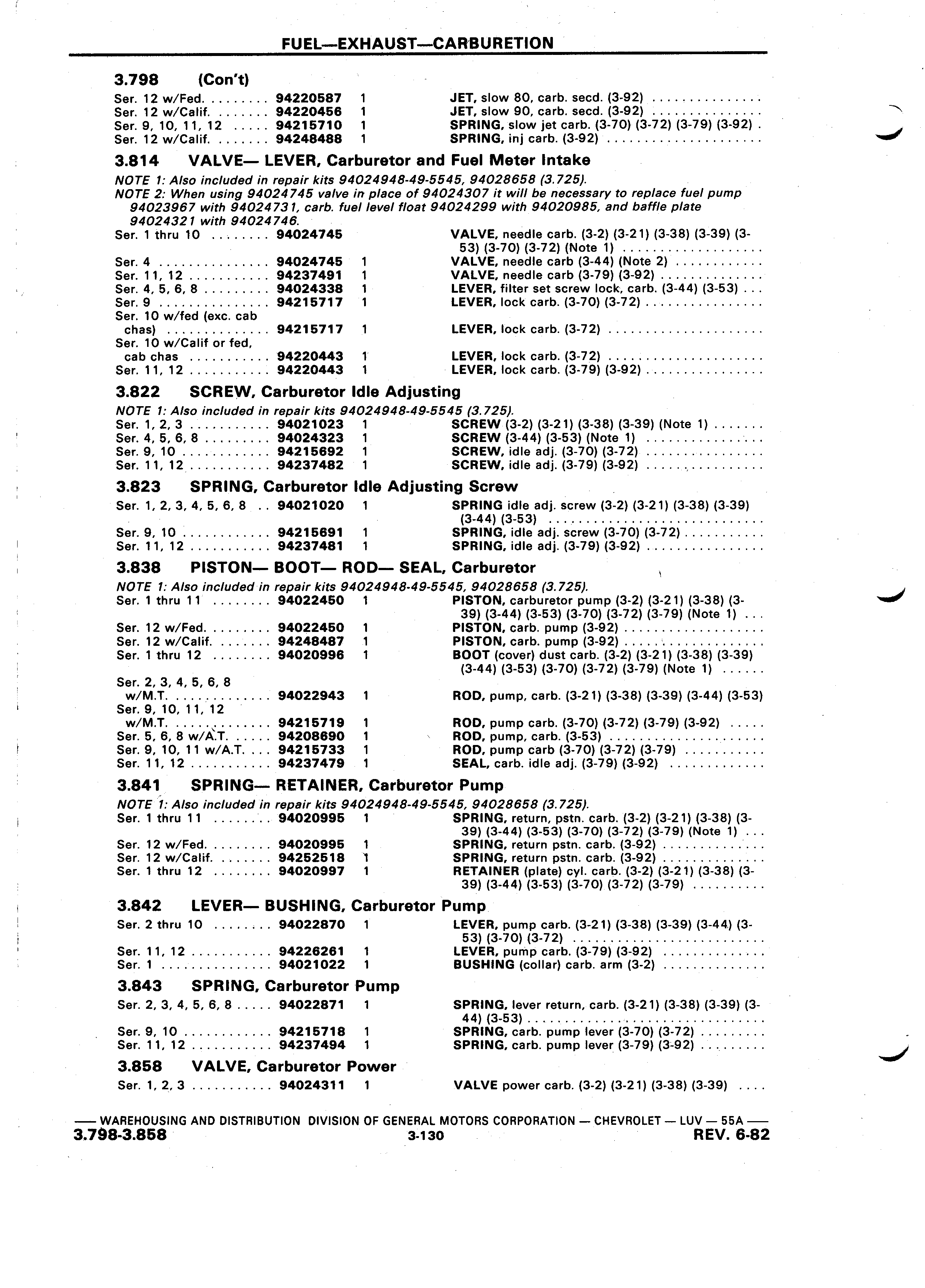

FUEL EXHAUST CARBURETION A 3 798 Con t A Ser 12 w Fed 94220587 1 JET slow 80 carb secd 3 92 Ser 12 w Calif 94220456 1 JET slow 90 carb secd 3 92 Ser 9 10 11 12 94215710 1 SPRING slow jet carb 3 70 3 72 3 79 3 92 Ser 12 w Calif 94248488 1 SPRING inj carb 3 92 J 3 814 VALVE LEVER Carburetor and Fuel Meter Intake NOTE 1 Also included in repair kits 94024948 49 5545 94028658 3 725 NOTE 2 When using 94024745 valve in place of 94024307 it will be necessary to replace fuel pump 94023967 with 94024731 carb fuel level float 94024299 with 94020985 and baffle plate 94024321 with 94024746 Ser 1 thru 10 94024745 VALVE needle carb 3 2 3 21 3 38 3 39 3 53 3 70 3 72 Note 1 Ser 4 94024745 1 VALVE needle carb 3 44 Note 2 Ser 11 12 94237491 1 VALVE needle carb 3 79 3 92 Ser 4 5 6 8 94024338 1 LEVER filter set screw lock carb 3 44 3 53 Ser 9 94215717 1 LEVER lock carb 3 70 3 72 Ser 10 w fed exc cab chas 94215717 1 LEVER lock carb 3 72 Ser 10 w Calif or fed cab chas 94220443 1 LEVER lock carb 3 72 Ser 11 12 94220443 1 LEVER lock carb 3 79 3 92 3 822 SCREW Carburetor Idle Adjusting NOTE 1 Also included in repair kits 94024948 49 5545 3 725 Ser 1 2 3 94021023 1 SCREW 3 2 3 21 3 38 3 39 Note 1 Ser 4 5 6 8 94024323 1 SCREW 3 44 3 53 Note 1 Ser 9 10 94215692 1 SCREW idle adj 3 70 3 72 Ser 1 1 12 94237482 1 SCREW idle adj 3 79 3 92 A 3 823 SPRING Carburetor Idle Adjusting Screw Ser 1 2 3 4 5 6 8 94021020 1 SPRING idle adj screw 3 2 3 21 3 38 3 39 3 44 3 53 Ser 9 10 94215691 1 SPRING idle adj screw 3 70 3 72 I Ser 11 12 94237481 1 SPRING idle adj 3 79 3 92 I 3 838 PlSTON BOOT ROD SEAL Carburetor NOTE 1 Also included in repair kits 94024948 49 5545 94028658 3 725 Ser 1 thru 11 94022450 1 PISTON carburetor pump 3 2 3 21 3 38 3 J I 39 3 44 3 53 3 70 3 72 3 79 Note 1 Ser 12 w Fed 94022450 1 PISTON carb pump 3 92 Ser 12 w Calif 94248487 1 PISTON carb pump 3 92 Ser 1 thru 12 94020996 1 BOOT cover dust carb 3 2 3 21 3 38 3 39 3 44 3 53 3 70 3 72 3 79 Note 1 Ser 2 3 4 5 6 8 I w M T V 94022943 1 ROD pump carb 3 21 3 38 3 39 3 44 3 53 I Ser 9 10 11 12 w M T 94215719 1 ROD pump carb 3 70 3 72 3 79 3 92 Ser 5 6 8 w A T 94208690 1 ROD pump carb 3 53 I Ser 9 10 11 w A T 94215733 1 ROD pump carb 3 70 3 72 3 79 Ser 1 1 12 94237479 1 SEAL carb idle adj 3 79 3 92 I 3 841 SPRING RETAINER Carburetor Pump NOTE 1 Also included in repair kits 94024948 49 5545 94028658 3 725 Ser 1 thru 1 1 94020995 1 SPRING return pstn carb 3 2 3 21 3 38 3 39 3 44 3 53 3 70 3 72 3 79 Note 1 Ser 12 w Fed 94020995 1 SPRING return pstn carb 3 92 Ser 12 w Calif 94252518 l SPRING return pstn carb 3 92 Ser 1 thru 12 94020997 1 RETAINER plate cyl carb 3 2 3 21 3 38 3 39 3 44 3 53 3 70 3 72 3 79 I 3 842 LEVER BUSHING Carburetor Pump l Ser 2 thru 10 94022870 1 LEVER pump carb 3 21 3 38 3 39 3 44 3 I 53 3 70 3 72 Ser 11 12 94226261 1 LEVER pump carb 3 79 3 92 Y Ser 1 94021022 1 BUSHING collar carb arm 3 2 3 843 SPRING Carburetor Pump Ser 2 3 4 5 6 8 94022871 1 SPRING lever return carb 3 21 3 38 3 39 3 44 3 53 Ser 9 10 94215718 1 SPRING carb pump lever 3 70 3 72 Ser 11 12 94237494 1 SPRING carb pump lever 3 79 3 92 3 858 VALVE Carburetor Power Ser 1 2 3 94024311 1 VALVE power carb 3 2 3 21 3 38 3 39 V WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A 3 798 3 858 3 130 REV 6 82
