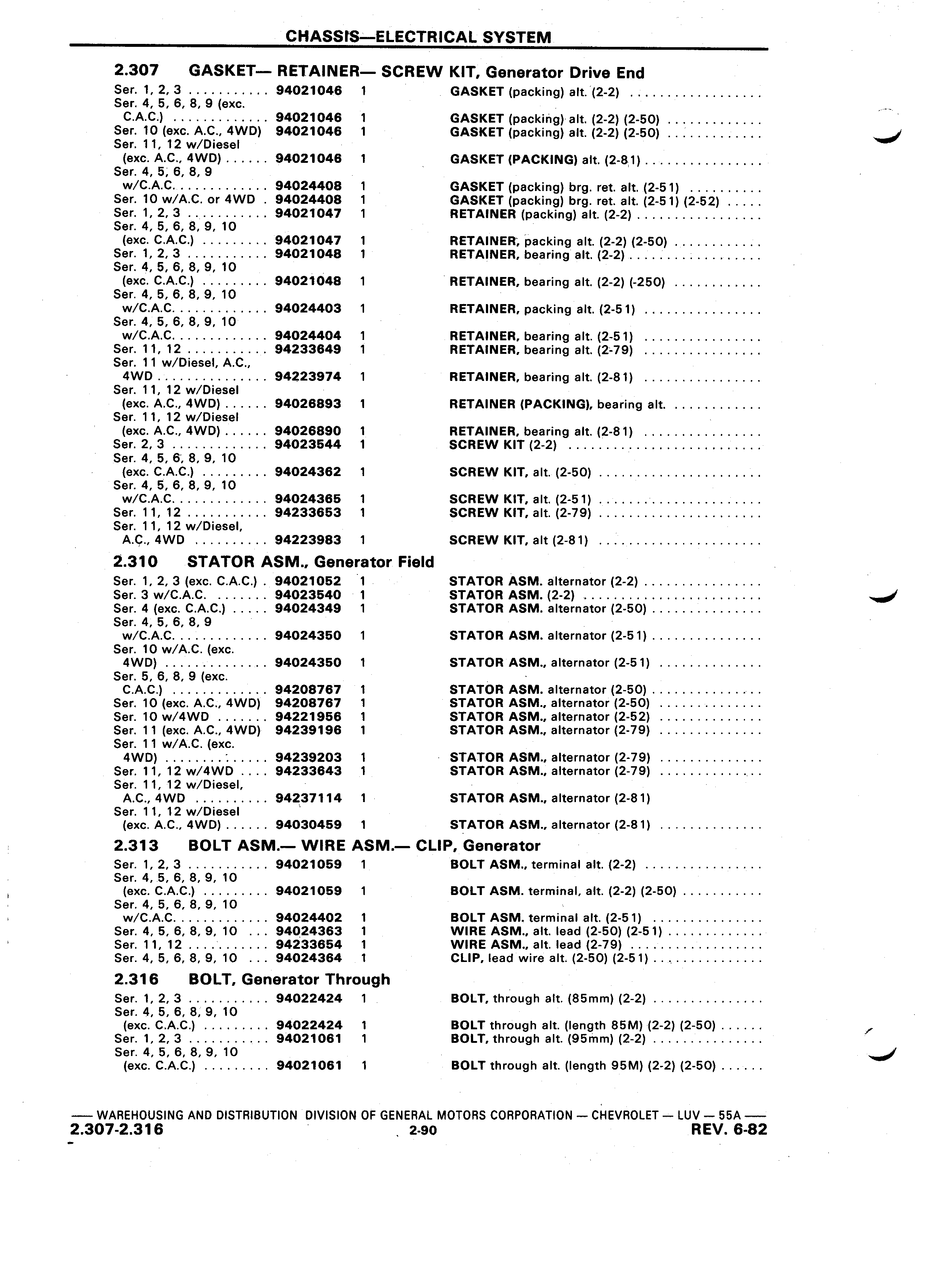

CHASSIS ELECTRlCAL SYSTEM 2 307 GASKET RETAINER SCREW KIT Generator Drive End Ser 1 2 3 94021046 1 GASKET packing alt 2 2 Ser 4 5 6 8 9 exc SC Ai 1 GASKET packing alt 2 2 2 50 er exc 1 GASKET ackin alt 2 2 2 50 Q Ser 11 12 w Diesel p 9 J exc A C 4WD 94021046 1 GASKET PACKING alt 2 81 Ser 4 5 6 8 9 w C A C 94024408 1 GASKET packing brg ret alt 2 51 Ser 10 w A C or 4WD 94024408 1 GASKET packing brg ret alt 2 51 2 52 Ser 1 2 3 94021047 1 RETAINER packing alt 2 2 Ser 4 5 6 8 9 10 exc C A C 94021047 1 RETAINERQ packing alt 2 2 2 50 Ser 1 2 3 94021048 1 RETAINER bearing alt 2 2 Ser 4 5 6 8 9 10 V exc C A C 94021048 1 RETAINER bearing alt 2 2 250 Ser 4 5 6 8 9 10 w C A C 94024403 1 RETAINER packing alt 2 51 Ser 4 5 6 8 9 10 w C A C 94024404 1 RETAINER bearing alt 2 51 Ser 11 12 94233649 1 RETAINER bearing alt 2 79 Ser 11 w Diesel A C V 4WD 94223974 1 RETAINER bearing alt 2 81 Ser 11 12 w Diesel exc A C 4WD 94026893 1 RETAINER PACKING bearing alt Ser 11 12 w Diesel exc A C 4WD 94026890 1 RETAINER bearing alt 2 81 Ser 2 3 94023544 1 SCREW KIT 2 2 Ser 4 5 6 8 9 10 exc C A C 94024362 1 SCREW KIT alt 2 50 Ser 4 5 6 8 9 10 w C A C 94024365 1 SCREW KIT alt 2 51 Ser 1 1 12 94233653 1 SCREW KIT alt 2 79 Ser 11 12 w Diesel V A C 4WD 94223983 1 SCREW KIT alt 2 81 2 310 STATOR ASM Generator Field Ser 1 2 3 exc C A C 94021052 1 STATOR ASM alternator 2 2 Ser 3 w C A C 94023540 1 STATOR ASM 2 2 J Ser 4 exc C A C 94024349 1 STATOR ASM alternator 2 50 Ser 4 5 6 8 9 w C A C 94024350 1 STATOR ASM alternator 2 51 Ser 10 w A C exc 4WD 94024350 1 STATOR ASM alternator 2 51 Ser 5 6 8 9 exc C A C 94208767 1 STATOR ASM alternator 2 50 Ser 10 exc A C 4WD 94208767 1 STATOR ASM alternator 2 50 Ser 10 w 4WD 94221956 1 STATOR ASM alternator 2 52 Ser 1 1 exc A C 4WD 94239196 1 STATOR ASM alternator 2 79 Ser 11 w A C exc 4WD 2 94239203 1 STATOR ASM alternator 2 79 Ser 11 12 w 4WD 94233643 1 STATOR ASM alternator 2 79 Ser 11 12 w Diesel A C 4WD 94237114 1 STATOR ASM alternator 2 81 Ser 11 12 w Diesel exc A C 4WD 94030459 1 STATOR ASM alternator 2 81 2 313 BOLT ASM WIRE ASM CLIP Generator Ser 1 2 3 94021059 1 BOLT ASM terminal alt 2 2 Ser 4 5 6 8 9 10 exc C A C 94021059 1 BOLT ASM terminal alt 2 2 2 50 Ser 4 5 6 8 9 10 w C A C 94024402 1 BOLT ASM terminal alt 2 51 Ser 4 5 6 8 9 10 94024363 1 WIRE ASM alt lead 2 50 2 51 Ser 1 1 12 94233654 1 WIRE ASM alt lead 2 79 Ser 4 5 6 8 9 10 94024364 1 CLIP lead wire alt 2 50 2 51 2 316 BOLT Generator Through Ser 1 2 3 94022424 1 BOLT through alt 85mm 2 2 Ser 4 5 6 8 9 10 exc C A C 94022424 1 BOLT through alt length 85M 2 2 2 50 J Ser 1 2 3 94021061 1 BOLT through alt 95mm 2 2 Ser 4 5 6 8 9 10 j exc C A C 94021061 1 BOLT through alt length 95M 2 2 2 50 WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A 2 307 2 316 2 90 REV 6 82
