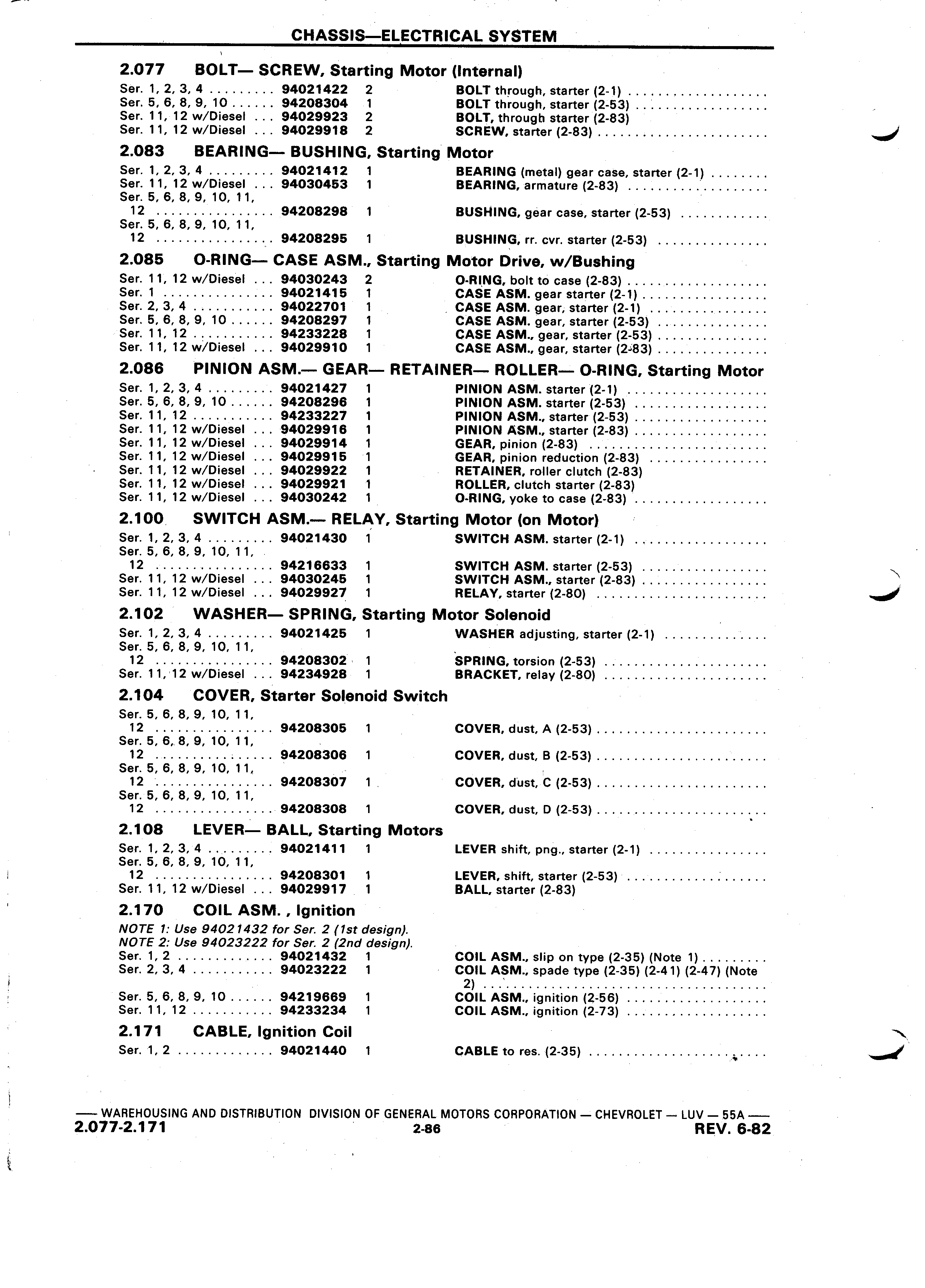

CHASSlS ELECTRICAL SYSTEM 2 077 BOLT SCREW Starting Motor Internal Ser 1 2 3 4 94021422 2 BOLT through starter 2 1 Ser 5 6 8 9 10 94208304 1 BOLT through starter 2 53 Q Ser 11 12 w Diesel 94029923 2 BOLT through starter 2 83 Ser 11 12 w Diesel 94029918 2 SCREW starter 2 83 2 083 BEARING BUSHING Starting Motor Ser 1 2 3 4 94021412 1 BEARING metal gear case starter 2 1 Ser 11 12 w Diesel 94030453 1 BEARING armature 2 83 Ser 5 6 8 9 10 11 V 12 94208298 1 BUSHING gear case starter 2 53 Ser 5 6 8 9 10 11 12 94208295 1 BUSHING rr cvr starter 2 53 2 085 O RING CASE ASM Starting Motor Drive w Bushing Ser 11 12 w Diesel 94030243 2 O RING bolt to case 2 83 Ser 1 94021415 1 CASE ASM gear starter 2 1 Ser 2 3 4 94022701 1 CASE ASM gear starter 2 1 Ser 5 6 8 9 10 94208297 1 CASE ASM gear starter 2 53 Ser 1 1 12 94233228 1 CASE ASM gear starter 2 53 Ser 1 1 12 w Diesel 94029910 1 CASE ASM gear starter 2 83 2 086 PINION ASM GEAR RETAINER ROLLER O RING Starting Motor Ser 1 2 3 4 94021427 1 PINION ASM starter 2 1 Ser 5 6 8 9 10 94208296 1 PINION ASM starter 2 53 Ser 11 12 94233227 1 PINION ASM starter 2 53 Ser 11 12 w Diesel 94029916 1 PINION ASM starter 2 83 Ser 11 12 w Diesel 94029914 1 GEAR pinion 2 83 Ser 11 12 w Diesel 94029915 1 GEAR pinion reduction 2 83 Ser 11 12 w Diesel 94029922 1 RETAINER roller clutch 2 83 Ser 1 1 12 w Diesel 94029921 1 ROLLER clutch starter 2 83 Ser 11 12 w Diesel 94030242 1 0 RING yoke to case 2 83 2 100 SWITCH ASM RELAY Starting Motor on Motor Ser 1 2 3 4 94021430 1 SWITCH ASM starter 2 1 Ser 5 6 8 9 10 11 12 94216633 1 SWITCH ASM starter 2 53 Ser 11 12 w Diesel 94030245 1 SWITCH ASM starter 2 83 Ser 11 12 w Diesel 94029927 1 RELAY starter 2 80 C 2 102 WASHER SPRING Starting Motor Solenoid Ser 1 2 3 4 94021425 1 WASHER adjusting starter 2 1 Ser 5 6 8 9 10 11 12 94208302 I 1 SPRING torsion 2 53 Ser 11 12 w Diesel 94234928 1 BRACKET relay 2 80 2 104 COVER Starter Solenoid Switch Ser 5 6 8 9 10 11 12 94208305 1 COVER dust A 2 53 Ser 5 6 8 9 10 11 12 94208306 1 COVER dust B 2 53 Ser 5 6 8 9 10 11 12 94208307 1 COVER dust C 2 53 Ser 5 6 8 9 10 11 12 94208308 1 COVER dust D 2 53 2 108 LEVER BALL Starting Motors Ser 1 2 3 4 94021411 1 LEVER shift png starter 2 1 Ser 5 6 8 9 10 11 I 12 94208301 1 LEVER shift starter 2 53 Ser 11 12 w Diesel 94029917 1 BALL starter 2 83 2 170 COIL ASM Ignition S NOTE 1 Use 94021432 for Ser 2 1st design NOTE 2 Use 94023222 for Ser 2 2nd design Ser 1 2 94021432 1 COIL ASM slip on type 2 35 Note 1 Ser 2 3 4 94023222 1 COIL ASM spade type 2 35 2 41 2 47 Note i 2 Q Ser 5 6 8 9 10 94219669 1 COIL ASM ignition 2 56 Ser 1 1 12 94233234 1 COIL ASM ignition 2 73 I 2 171 CABLE Ignition Coil Ser 1 2 94021440 1 CABLE to res 2 35 I I WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET LUV 55A 2 077 2 1 71 2 86 I REV 6 82
