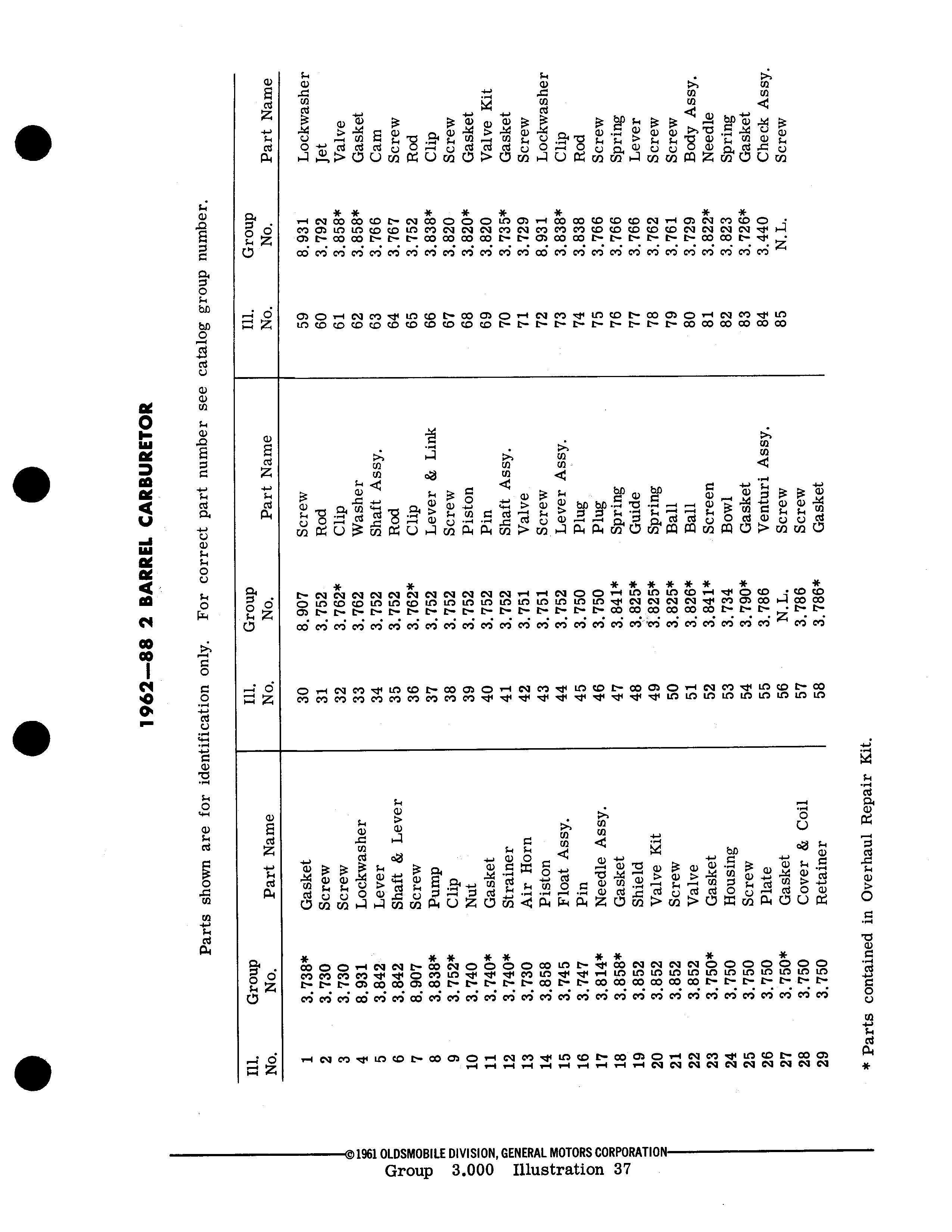

1962 88 Z BARREL CARBURETOR Parts shown are for identification only For correct part number see catalog Ill Group Ill Group I No No Part Name No No Part Name P 1 3 738 Gasket 30 8 907 Screw 2 3 730 Screw 31 3 752 Rod f 3 3 730 Screw 32 3 762 Clip E 4 8 931 Lockwasher 33 3 762 Washer f 0 5 3 842 Lever 34 3 752 Shaft Assy E 6 3 842 Shaft Lever 35 3 752 Rod f 7 8 907 Screw 36 3 762 Clip f 8 3 838 Pump 37 3 752 Lever Link E w s 9 3 752 Clip 38 3 752 Screw E o y 10 3 740 Nut 39 3 752 Piston E o 11 3 740 Gasket 40 3 752 Pin f 12 3 740 Strainer 41 3 752 Shaft Assy 13 3 730 Air Horn 42 3 751 Valve 14 3 858 Piston 43 3 751 Screw 15 3 745 Float Assy 44 3 752 Lever Assy 0 16 3 747 Pin 45 3 750 Plug 17 3 814 Needle Assy 46 3 750 Plug C4 M 18 3 858 Gasket 47 3 841 Spring 19 3 852 Shield 48 3 825 Guide 20 3 852 Valve Kit 49 3 825 Spring 21 3 852 Screw 50 3 825 Ball 22 3 852 Valve 51 3 826 Ball 23 3 750 Gasket 52 3 841 Screen 24 3 750 Housing 53 3 734 Bowl 25 3 750 Screw 54 3 790 Gasket 26 3 750 Plate 55 3 786 Venturi Assy 27 3 750 Gasket 56 N L Screw 28 3 750 Cover Coil 57 3 786 Screw 29 3 750 Retainer 58 3 786 Gasket Parts contained in Overhaul Repair Kit
