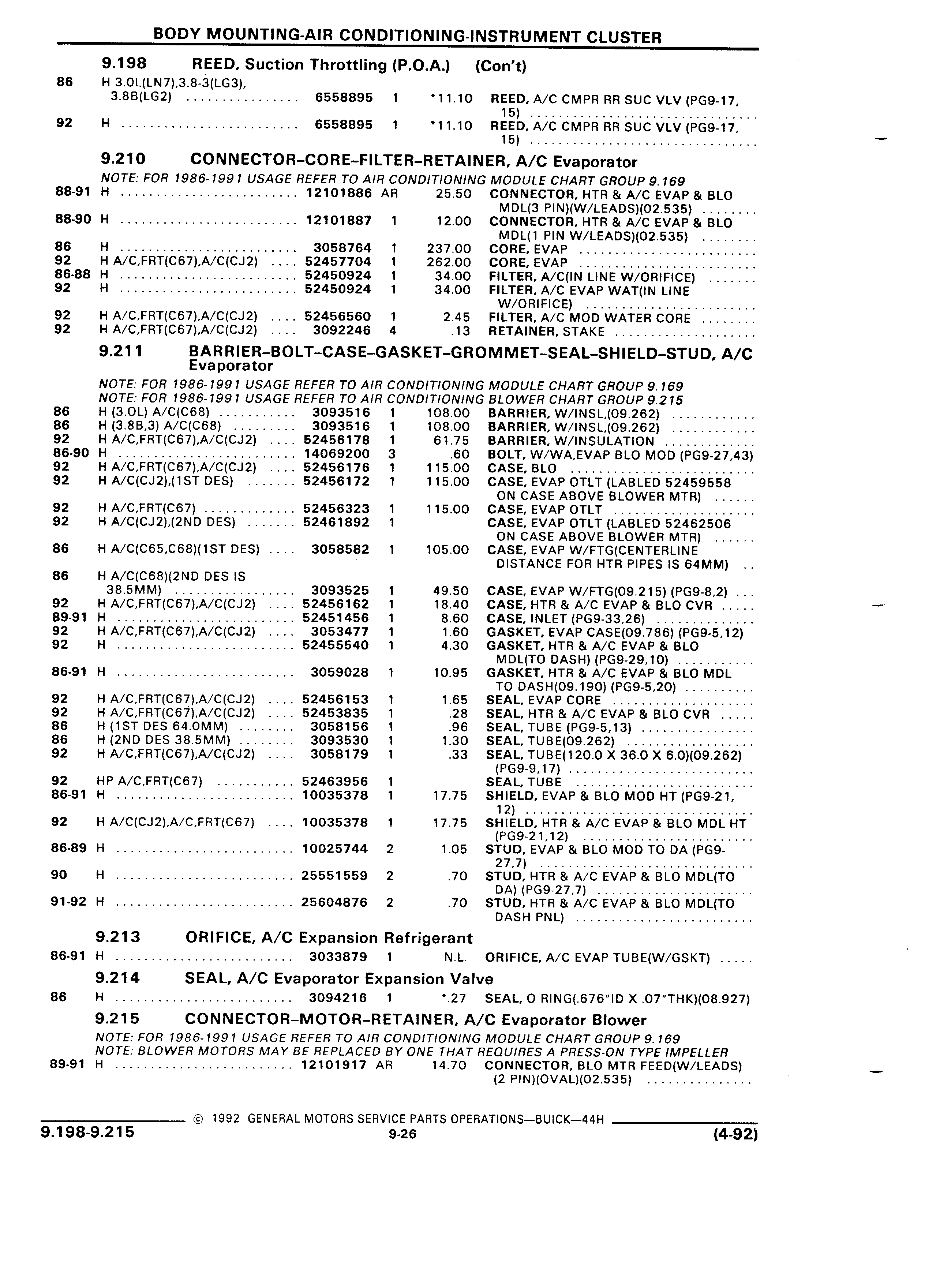

BODY MOUNTING AIR CONDITIONING INSTRUMENT CLUSTER 9 198 REED Suction Throttling P O A Con t 86 H 3 0L LN7 3 8 3 LG3 3 8B LG2 6558895 1 11 10 REED A C CMPR RR SUC VLV PG9 17 15 92 H 6558895 1 11 10 REED A C CMPR RR SUC VLV PG9 17 15 9 210 CONNECTOR CORE FILTER RETAINER A C Evaporator NOTE FOR 1986 1991 USAGE REFER TO AIR CONDITIONING MODULE CHART GROUP 9 169 88 91 H 12101886 AR 25 50 CONNECTOR HTR A C EVAP BLO MDL 3 PIN W LEADS 02 535 88 90 H 12101887 1 12 00 CONNECTOR HTR A C EVAP BLO MDL 1 PIN W LEADS 02 535 86 H 3058764 1 237 00 CORE EVAP 92 H A C FRT C67 A C CJ2 52457704 1 262 00 CORE EVAP 86 88 H 52450924 1 34 00 FILTER A C IN LINE W ORIFICE 92 H 52450924 1 34 00 FILTER A C EVAP WAT IN LINE W ORIFICE 92 H A C FRT C67 A C CJ2 52456560 1 2 45 FILTER A C MOD WATER CORE 92 H A C FRT C67 A C CJ2 3092246 4 13 RETAINER STAKE 9 211 BARRIER BOLT CASE GASKET GROMMET SEAL SHIELD STUD A C Evaporator NOTE FOR 1986 1991 USAGE REFER TO AIR CONDITIONING MODULE CHART GROUP 9 169 NOTE FOR 1986 1991 USAGE REFER TO AIR CONDITIONING BLOWER CHART GROUP 9 215 86 H 3 0L A C C68 3093516 1 108 00 BARRIER W NSL 09 262 86 H 3 8B 3 A C C68 3093516 1 108 00 BARRIER W INSL 09 262 92 H A C FRT C67 A C CJ2 52456178 1 61 75 BARRIER W INSULATION 86 90 H 14069200 3 60 BOLT W WA EVAP BLO MOD PG9 27 43 92 H A C FRT C67 A C CJ2 52456176 1 115 00 CASE BLO 92 H A C CJ2 1ST DES 52456172 1 115 00 CASE EVAP OTLT LABLED 52459558 ON CASE ABOVE BLOWER MTR 92 H A C FRT C67 52456323 1 115 00 CASE EVAP OTLT 92 H A C CJ2 2ND DES 52461892 1 CASE EVAP OTLT LABLED 52462506 ON CASE ABOVE BLOWER MTR 86 H A C C65 C68 1ST DES 3058582 1 105 00 CASE EVAP W FTG CENTERL NE DISTANCE FOR HTR PIPES IS 64MM 86 H A C C68 2ND DES IS 38 5MM 3093525 1 49 50 CASE EVAP W FTG 09 215 PG9 8 2 92 H A C FRT C67 A C CJ2 52456162 1 18 40 CASE HTR A C EVAP BLO CVR 89 91 H 52451456 1 8 60 CASE INLET PG9 33 26 92 H A C FRT C67 A C CJ2 3053477 1 1 60 GASKET EVAP CASE 09 786 PG9 5 12 92 H 52455540 1 4 30 GASKET HTR A C EVAP BLO MDL TO DASH PG9 29 10 86 91 H 3059028 1 10 95 GASKET HTR A C EVAP BLO MDL TO DASH 09 190 PG9 5 20 92 H A C FRT C67 A C CJ2 52456153 1 1 65 SEAL EVAP CORE 92 H A C FRT C67 A C CJ2 52453835 1 28 SEAL HTR A C EVAP BLO CVR 86 H 1ST DES 64 0MM 3058156 1 96 SEAL TUBE PG9 5 13 86 H 2ND DES 38 5MM 3093530 1 1 30 SEAL TUBE 09 262 92 H A C FRT C67 A C CJ2 3058179 1 33 SEAL TUBE 120 0 X 36 0 X 6 0 09 262 PG9 9 17 92 HP A C FRT C67 52463956 1 SEAL TUBE 86 91 H 10035378 1 17 75 SHIELD EVAP BLO MOD HT PG9 21 12 92 H A C CJ2 A C FRT C67 10035378 1 17 75 SHIELD HTR A C EVAP BLO MDL HT PG9 21 12 86 89 H 10025744 2 1 05 STUD EVAP BLO MOD TO DA PG9 27 7 90 H 25551559 2 70 STUD HTR A C EVAP BLO MDL TO DA PG9 27 7 91 92 H 25604876 2 70 STUD HTR A C EVAP BLO MDL TO DASH PNL 9 213 ORIFICE A C Expansion Refrigerant 86 91 H 3033879 1 N L ORIFICE A C EVAP TUBE W GSKT 9 214 SEAL A C Evaporator Expansion Valve 86 H 3094216 1 27 SEAL O RING 676 D X 07 THK 08 927 9 215 CONNECTOR MOTOR RETAINER A C Evaporator Blower NOTE FOR 1986 1991 USAGE REFER TO A R CONDITIONING MODULE CHART GROUP 9 169 NOTE BLOWER MOTORS MAY BE REPLACED BY ONE THAT REOU RES A PRESS ON TYPE IMPELLER 89 91 H 12101917 AR 14 70 CONNECTOR BLO MTR FEED W LEADS 2 PIN OVAL 02 535 I T i 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS BUICK 44H 9 198 9 215 9 26 4 92
