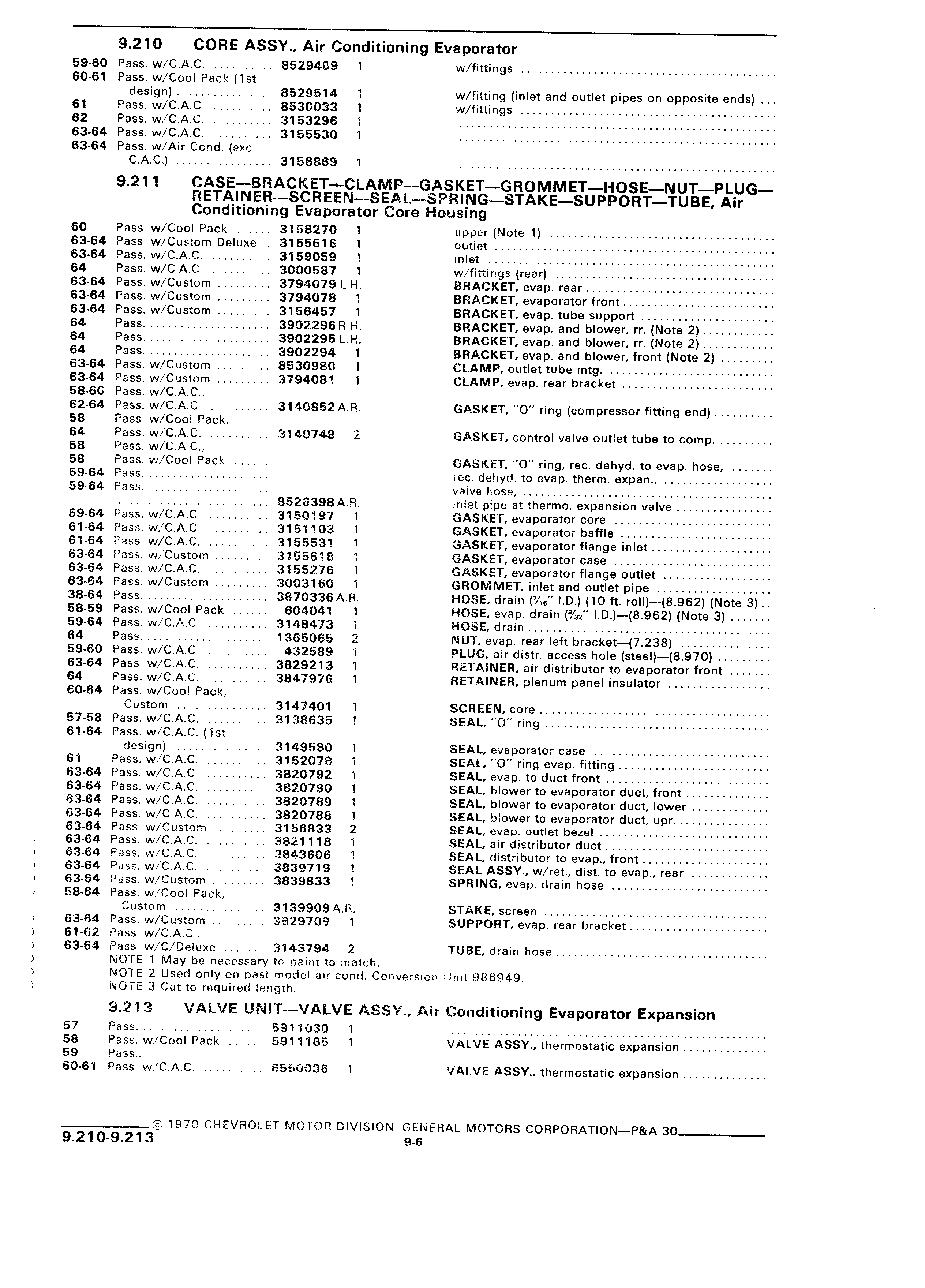

9 210 CORE ASSY Air Conditioning Evaporator 59 60 Pass w C A C 8529409 1 w fittings 60 61 Pass w Cool Pack 1st design 8529514 1 w fitting inlet and outlet pipes on opposite ends 61 Pass w C A C 8530033 1 w fittings 62 Pass w C A C 3153296 1 63 64 Pass w C A C 3155530 1 v 63 64 Pass w Air Cond exc C A C 3156869 1 9 211 CASE BRACKET CLAMP GASKET GROMMET HOSE NUT PLUG RETAINER SCREEN SEAL SPRlNG STAKE SUPPORT TUBE Air Conditioning Evaporator Core Housing 60 Pass w Cool Pack 3158270 1 upper Note 1 63 64 Pass w Custom Deluxe 3155616 1 outlet 63 64 Pass w C A C 3159059 1 inlet 64 Pass w C A C 3000587 1 vv fittings rear 63 64 Pass w Custom 3794079 L H BRACKET evap rear 63 64 Pass w Custom 3794078 1 BRACKET evaporator front 63 64 Pass w Custom 3156457 1 BRACKET evap tube support 64 Pass 3902296 R H BRACKET evap and blower rr Note 2 64 Pass 3902295 L l l BRACKET evap and blower rr Note 2 64 Pass 3902294 1 BRACKET evap and blower front Note 2 63 64 Pass w Custom 8530980 1 CLAMP outlet tube mtg 63 64 Pass w Custom 3794081 1 CLAMP evap rear bracket 58 60 Pass w C A C 62 64 Pass w C A C 3140852 A F1 GASKET O ring compressor fitting end 58 Pass w Cool Pack 64 Pass w C A C 3140748 2 GASKET control valve outlet tube to comp 58 Pass w C A C 58 Pass vv Cool Pack GASKET O ring rec dehyd to evap hose 59 64 Pass rec dehyd to evap therm expan 59 64 Pass valve hose 8526398 A R inlet pipe at thermo expansion valve 59 64 Pass w C A C 3150197 1 GASKET evaporator core 61 64 Pass w C A C 3151103 1 GASKET evaporator baffle 61 64 Pass w C A C 3155531 1 GASKET evaporator flange inlet 63 64 Pass w Custom 3155618 1 GASKET evaporator case 63 64 Pass w C A C 3155276 1 GASKET evaporator flange outlet 63 64 Pass w Custom 3003160 1 GROMMET inlet and outlet pipe 38 64 Pass 3870336 AP HOSE drain Via l D 10 ft ro I 8 962 Note 3 58 59 Pass w Cool Pack 604041 1 HOSE evap drain D 8 962 Note 3 59 64 Pass w C A C 3148473 1 HOSE drain 64 Pass 1365065 2 NUT evap rear left bracket 7 238 59 60 Pass w C A C 432589 1 PLUG air distr access hole stee 8 970 63 64 Pass w C A C 3829213 1 RETAINER air distributor to evaporator front 64 Pass w C A C 3847976 1 RETAINER plenum panel insulator 60 64 Pass w Cool Pack Custom 3147401 1 SCREEN core 57 58 Pass w C A C 3138635 1 SEAL O ring 61 64 Pass w C A C 1st design 3149580 1 SEAL evaporator case 61 Pass w C A C 3152078 1 SEAL O ring evap fitting 1 63 64 Pass w C A C 3820792 1 SEAL evap to duct front 63 64 Pass w C A C 3820790 1 SEAL blower to evaporator duct front 63 64 Pass w C A C 3820789 1 SEAL blower to evaporator duct lower 63 64 Pass w C A C 3820788 1 SEAL blower to evaporator duct upr i 63 64 Pass w Custom 3156833 2 SEAL evap outlet bezel 63 64 Pass w C A C 3821118 1 SEAL air distributor duct i 63 64 Pass w C A C 3843606 1 SEAL distributor to evap front i 63 64 Pass w C A C 3839719 1 SEAL ASSY w ret dist to evap rear i 63 64 Pass w Custom 3839833 1 SPRING evap drain hose i 58 64 Pass w Cool Pack Custom 3139909 A B STAKE screen 63 64 Pass w Custom 3829709 1 SUPPORT evap rear bracket 61 62 Pass w C A C 63 64 Pass w C Deluxe 3143794 2 TUBE drain hose J NOTE 1 l lay be necessary to paint to match 1 NOTE 2 Used only on past model air cond Conversion Unit 986949 1 NOTE 3 Cut to required length 9 213 VALVE UNIT VALVE ASSY Air Conditioning Evaporator Expansion 57 Pass 5911030 1 58 Pass w Cool Pack 5911185 1 VALVE ASSY thermostatic expansion 59 Pass 60 61 Pass w C A C 6550036 1 VALVE ASSY thermostatic expansion 1970 CHEVROLET MOTOR DlVlSlON GENERAL MOTORS CORPORATION P A 30 9 210 9 213 9 6
