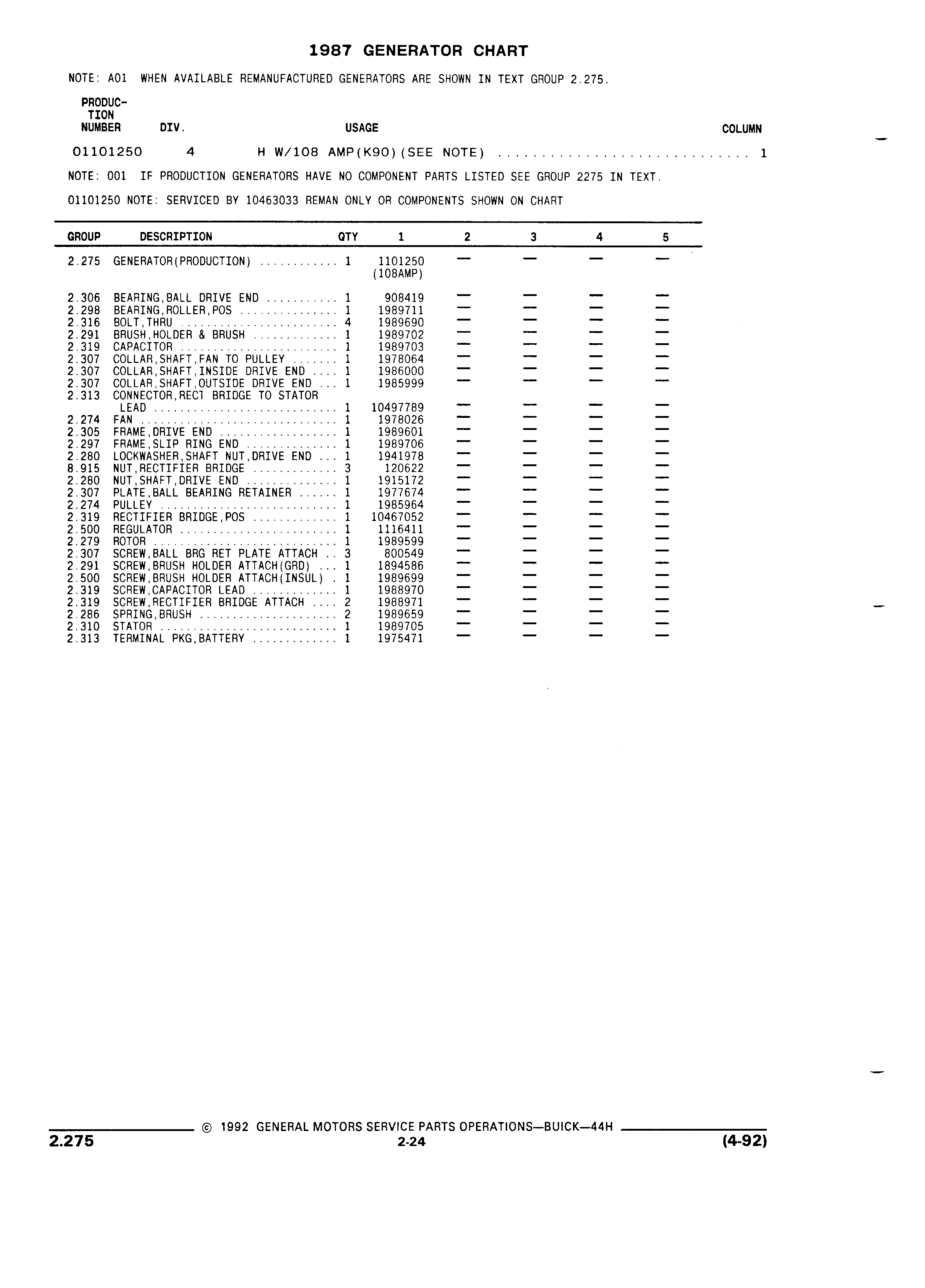

1987 GENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01101250 4 H W 108 AMP K90 SEE NOTE 1 NOTE 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01101250 NOTE SERVICED BY 10463033 REMAN ONLY OR COMPONENTS SHOWN ON CHART GROUP DESCRIPTION QTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1101250 108AMP 2 306 BEARING BALL DRIVE END 1 908419 2 298 BEARING ROLLER POS 1 1989711 2 316 BOLT THRU 4 1989690 2 291 BRUSH HOLDER BRUSH 1 1989702 2 319 CAPACITOR 4 1 1989703 2 307 COLLAR SHAFT FAN T0 PULLEY 1 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 2 307 COLLAR SHAFT OUTSIDE DRIVE END 1 1985999 2 313 CONNECTOR REC1 BRIDGE T0 STATOR LEAD 1 10497789 2 274 FAN 1 1978026 2 305 FRAME DRIVE END 1 1989601 2 297 FRAME SLIP RING END 1 1989706 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1985964 2 319 RECTIFIER BRIDGE POS 1 10467052 2 500 REGULATOR 1 1116411 2 279 ROTOR 1 1989599 2 307 SCREW BALL BRG RET PLATE ATTACH 3 800549 2 291 SCREW BRUSH HOLDER ATTACH GRD 1 1894586 2 500 SCREW BRUSH HOLDER ATTACH INSUL 1 1989699 2 319 SCREW CAPACITOR LEAD 1 1988970 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 1988971 2 286 SPRING 8RUSH 2 1989659 2 310 STATOR 1 1989705 2 313 TERMINAL PKG BATTERY 1 1975471 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS BU CK 44H 2 275 2 24 4 92
