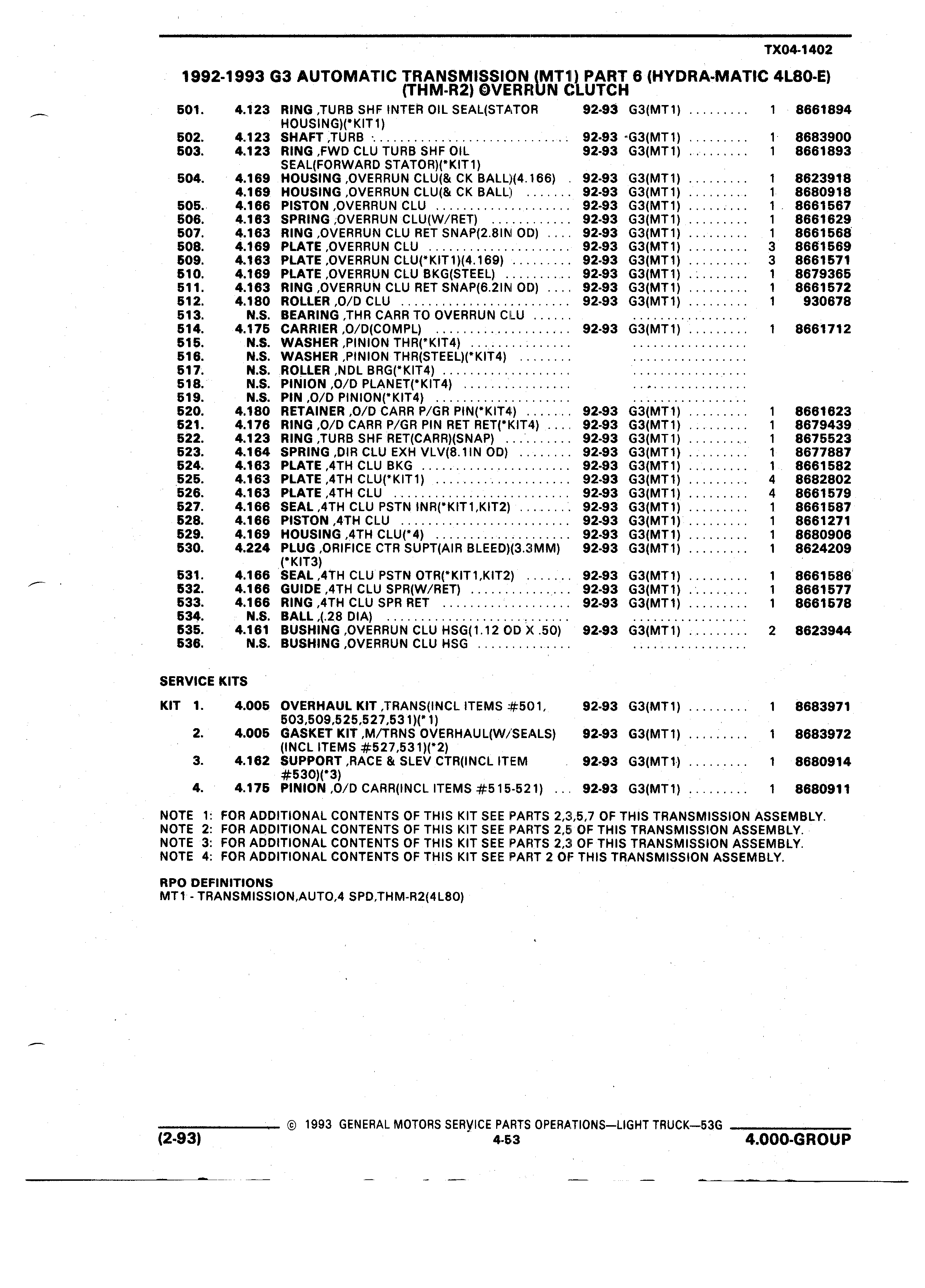

I I TX04 1402 1992 1993 G3 AUTOMATIC TRANSMISSION iI I T1 LPART 6 HYDRA MATIC 4L80 E THM R2 OVERR N C UTCH A 501 4 123 RING TURB SHF INTER OIL SEALISTATOR 92 93 G3 MT1 1 8661894 HOUSING K T1 502 4 123 SHAFT TURB 92 93 G3 MT1 1 8683900 503 4 123 RING FWD CLU TURB SHF OIL 92 93 G3 MT1 1 8661893 SEAL FORWARD STATOR KIT1 504 I 4 169 HOUSING OVERRUN CLU CK BALL 4 166 92 93 G3 MT1 1 8623918 4 169 HOUSING OVERRUN CLU CK BALL 92 93 G3 MT1 1 8680918 505 4 166 PISTON OVERRUN CLU 92 93 G3 MT1 1 8661567 506 4 163 SPRING OVERRUN CLU W RET 92 93 G3 MT1 1 8661629 507 4 163 RING OVERRUN CLU RET SNAP 2 8II I OD 92 93 G3 MT1 1 8661568 508 4 169 PLATE OVERRUN CLU 92 93 G3 MT1 3 8661569 509 4 163 PLATE OVERRUN CLU KIT1 4 169 92 93 G3 MT1 3 8661571 510 4 169 PLATE OVERRUN CLU BKG STEEL 92 93 G3 MT1 L 1 8679365 511 4 163 RING OVERRUN CLU RET SNAP 6 2 N OD 92 93 G3 MT1 1 8661572 512 4 180 ROLLER 0 D CLU 92 93 G3 MT1 1 930678 513 N S BEARING THR CARR TO OVERRUN CILU 514 4 175 CARRIER 0 D COMPL 92 93 G3 MT1 1 8661712 515 N S WASHER PINION THR KIT4 518 N S WASHER PINION THR STEEL KIT4 517 N S ROLLER NDL BRG K T4 518 N S PINION O D PLANET KIT4 I 519 N S PIN 0 D PINION KIT4 520 4 180 RETAINER 0 D CARR P GR PIN KIT4 92 93 G3 MT1 1 8681623 521 4 176 RING O D CARR P GR PIN RET RET KIT4 92 93 G3 MT1 1 8679439 522 4 123 RING TURB SHF RET CARR SNAP 92 93 G3 MT1 1 8675523 523 4 164 SPRING DIR CLU EXH VLV 8 1IN OD 92 93 G3 MT1 1 8677887 524 4 163 PLATE 4TH CLU BKG 92 93 G3 MT1 1 8661582 525 4 163 PLATE 4TH CLU KIT1 92 93 G3 MT1 4 8682802 526 4 163 PLATE 4TH CLU 92 93 G3 MT1 4 8661579 527 4 166 SEAL 4TH CLU PSTN INR KIT1 KIT2 92 93 G3 MT1 1 8661587 528 4 166 PISTON 4TH CLU 92 93 G3 MT1 1 8661271 529 4 169 HOUSING 4TH CLU 4 92 93 G3 MT1 1 8680906 530 4 224 PLUG ORIFICE CTR SUPT AIR BLEED 3 EIMM 92 93 G3 MT1 1 8624209 K T3 I 531 4 166 SEAL 4TH CLU PSTN OTR KIT1 KIT2 92 93 G3 MT1 1 8661586 532 4 166 GUIDE 4TH CLU SPR W RET 4 92 93 G3 MT1 I 1 8661577 533 4 166 RING 4TH CLU SPR RET 92 93 G3 MT1 1 8661578 1 534 N S BALL 28 DIA 535 4 161 BUSHING OVERRUN CLU HSG 1 12 OD X 50 92 93 G3 MT1 2 8623944 536 N S BUSHING OVERRUN CLU HSG SERVICE KITS W KIT 1 4 005 OVERHAUL KIT TRANS INCL ITEMS 501 92 93 G3 MT1 1 8683971 503 509 525 527 531 1 2 4 005 GASKET KIT M TRNS OVERHAULIW SEALS 92 93 G3 MT1 1 8683972 I INCL ITEMS 527 531 2 3 4 162 SUPPORT RACE SLEV CTR INCL ITEM 92 93 G3 MT1 1 8680914 530I 3 4 4 175 PINION 0 D CARR INCL ITEMS 515 521 92 93 G3 MT1 1 8680911 NOTE 1 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2 3 5 7 OF THIS TRANSMISSION ASSEMBLY NOTE 2 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2 5 OF THIS TRANSMISSION ASSEMBLY NOTE 3 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2 3I OF THIS TRANSMISSION ASSEMBLY NOTE 4 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PART 2 OF THIS TRANSMISSION ASSEMBLY RPO DEFINITIONS MT1 TRANSMISSION AUTO 4 SPD THM R2 4L80 1993 GENERAL MOTORS SER ICE PARTS OPERATIONS LIGHT TRUCK 53G I2 93 4 53 4 000 GROUP
