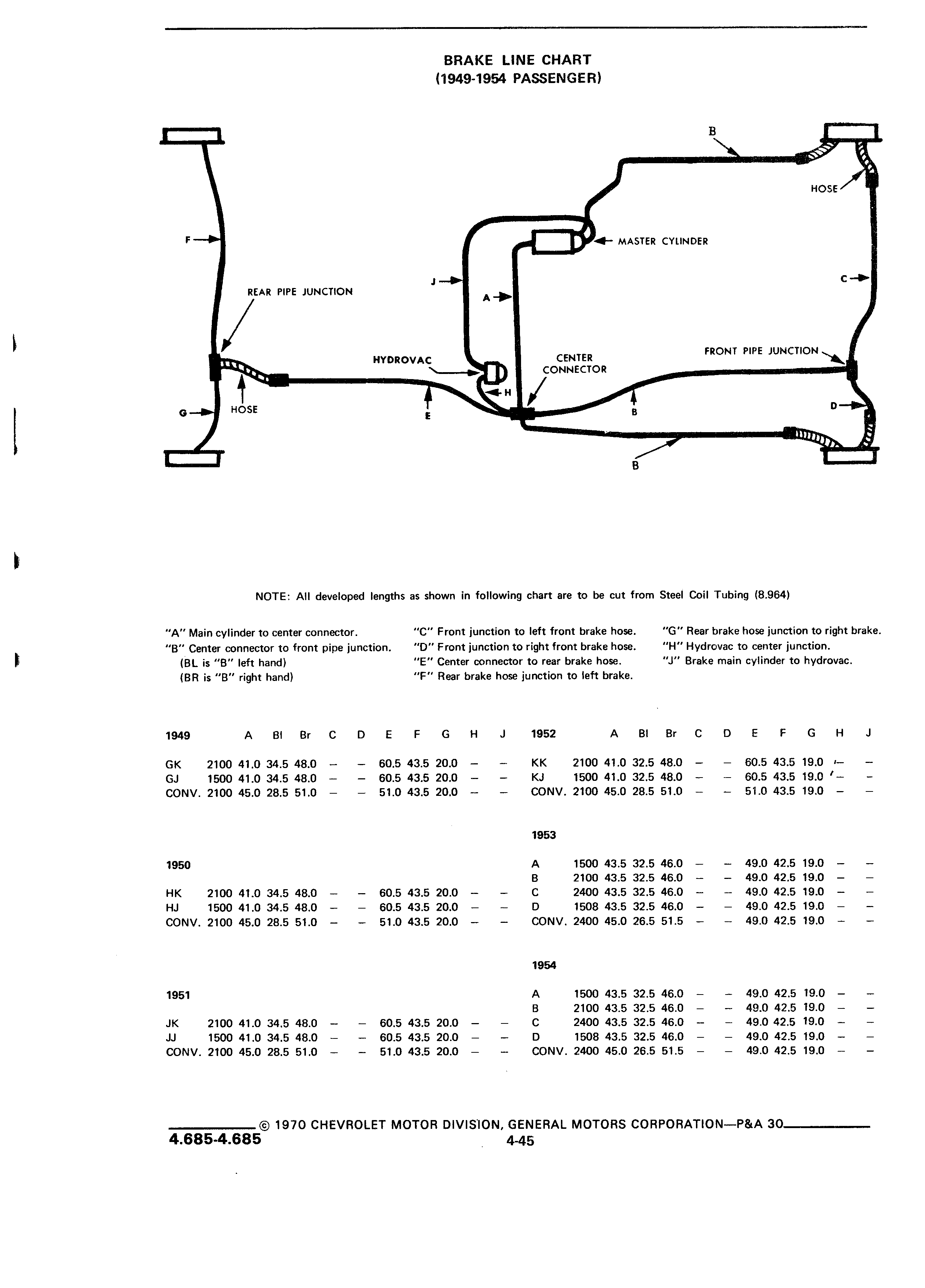

BRAKE LINE CHART 1949 1954 PASSENGER B Y l rs 2 HOSE 4 MASTER CYLINDER F I C REAR PIPE JUNCTION HYDR vAc CENTER FRONT PIPE JUNCTION CONNECTOR l u i B 1 NOTE All developed lengths as shown in following chart are to be cut from Steel Coil Tubing 8 964 A Main cylinder to center connector C Front junction to left front brake hose G Rear brake hose junction to right brake B Center connector to front pipe junction D Front junction to right front brake hose H Hydrovac to center junction R BL is B left hand E Center connector to rear brake hose J Brake main cylinder to hydrovac BR is B right hand F Rear brake hose junction to left brake 1949 A Bl Br C D E F G H J 1952 A Bl Br C D E F G H J GK 2100 41 0 34 5 48 0 60 5 43 5 20 0 KK 2100 41 0 32 5 48 0 60 5 43 5 19 0 GJ 1500 41 0 34 5 48 0 60 5 43 5 20 0 KJ 1500 41 0 32 5 48 0 60 5 43 5 19 0 CONV 2100 45 0 28 5 51 0 51 0 43 5 20 0 CONV 2100 45 0 28 5 51 0 51 0 43 5 19 0 1953 1950 A 1500 43 5 32 5 46 0 49 0 42 5 19 0 B 2100 43 5 32 5 46 0 49 0 42 5 19 0 HK 2100 41 0 34 5 48 0 60 5 43 5 20 0 C 2400 43 5 32 5 46 0 49 0 42 5 19 0 HJ 1500 41 0 34 5 48 0 60 5 43 5 20 0 D 1508 43 5 32 5 46 0 49 0 42 5 19 0 CONV 2100 45 0 28 5 51 0 51 0 43 5 20 0 CONV 2400 45 0 26 5 51 5 49 0 42 5 19 0 1954 1951 A 1500 43 5 32 5 46 0 49 0 42 5 19 0 B 2100 43 5 32 5 46 0 49 0 42 5 19 0 JK 2100 41 0 34 5 48 0 60 5 43 5 20 0 C 2400 43 5 32 5 46 0 49 0 42 5 19 0 JJ 1500 41 0 34 5 48 0 60 5 43 5 20 0 D 1508 43 5 32 5 46 0 49 0 42 5 19 0 CONV 2100 45 0 28 5 51 0 51 0 43 5 20 0 CONV 2400 45 0 26 5 51 5 49 0 42 5 19 0 1970 CHEVROLET MOTOR DIVIS ION GENERAL MOTORS CORPORATION P A 01 1 4 685 4 685 4 45
