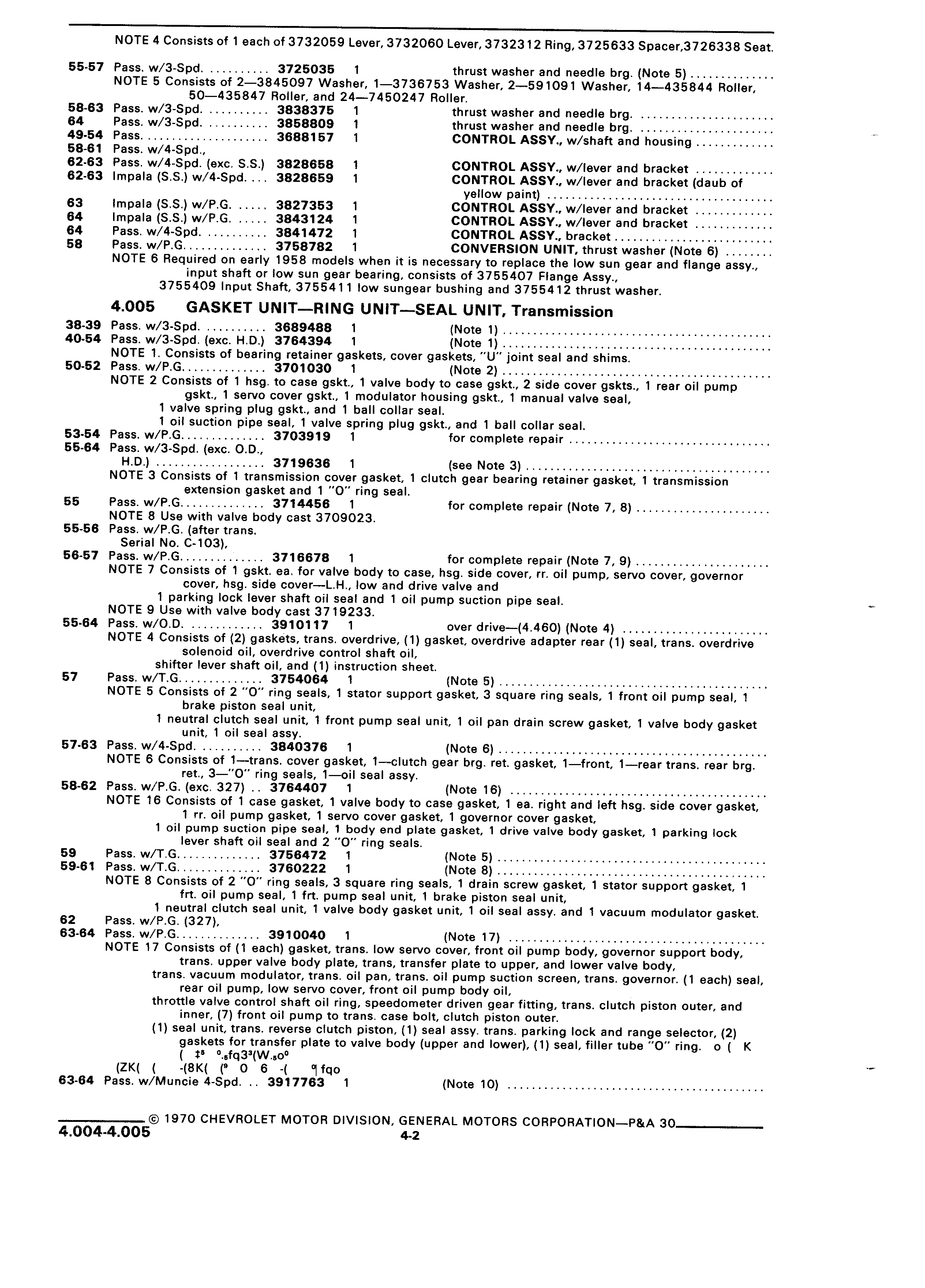

NOTE 4 Consists of 1 each of 3732059 Lever 3732060 Lever 3732312 Ring 3725633 Spacer 3726338 Seat 55 57 Pass w 3 Spd 3725035 1 thrust washer and needle brg Note 5 NOTE 5 Consists of 2 3845097 Washer 1 3736753 Washer 2 591091 Washer 14 435844 Roller 50 435847 Roller and 24 7450247 Roller 58 63 Pass w 3 Spd 3838375 1 thrust washer and needle brg 64 Pass w 3 Spd 3858809 1 thrust washer and needle brg 49 54 Pass 3688157 1 CONTROL ASSY w shaft and housing 58 61 Pass w 4 Spd 62 63 Pass w 4 Spd exc S S 3828658 1 CONTROL ASSY w lever and bracket 62 63 Impala S S w 4 Spd 3828659 1 CONTROL ASSY w lever and bracket daub of yellow paint 63 Impala S w P G 3827353 1 CONTROL ASSY w lever and bracket 64 Impala S S w P G 3843124 1 CONTROL ASSY w lever and bracket 64 Pass w 4 Spd 3841472 1 CONTROL ASSY bracket 58 Pass w P G 3758782 1 CONVERSION UNIT thrust washer Note 6 NOTE 6 Required on early 1958 models when it is necessary to replace the low sun gear and flange assy input shaft or low sun gear bearing consists of 3755407 Flange Assy 3755409 Input Shaft 3755411 low sungear bushing and 3755412 thrust washer 4 005 GASKET UNIT RING UNIT SEAL UNIT Transmission 38 39 Pass w 3 Spd 3689488 1 Note 1 40 54 Pass w 3 Spd exc H D 3764394 1 Note 1 NOTE 1 Consists of bearing retainer gaskets cover gaskets U joint seal and shims 50 52 Pass w P G 3701030 1 Note 2 NOTE 2 Consists of 1 hsg to case gskt 1 valve body to case gskt 2 side cover gskts 1 rear oil pump gskt 1 servo cover gskt 1 modulator housing gskt 1 manual valve seal 1 valve spring plug gskt and 1 ball collar seal 1 oil suction pipe seal 1 valve spring plug gskt and 1 ball collar seal 53 54 Pass w P G 3703919 1 for complete repair 55 64 Pass w 3 Spd exc O D H D 3719636 1 see Note 3 NOTE 3 Consists of 1 transmission cover gasket 1 clutch gear bearing retainer gasket 1 transmission extension gasket and 1 O ring seal 55 Pass w P G 3714456 1 for complete repair Note 7 8 NOTE 8 Use with valve body cast 3709023 55 56 Pass w P G after trans Serial No C 103 56 57 Pass w P G 3716678 1 for complete repair Note 7 9 NOTE 7 Consists of 1 gskt ea for valve body to case hsg side cover rr oil pump servo cover governor cover hsg side cover L H low and drive valve and 1 parking lock lever shaft oil seal and 1 oil pump suction pipe seal NOTE 9 Use with valve body cast 3719233 55 64 Pass w 0 D 3910117 1 over drive 4 460 Note 4 NOTE 4 Consists of 2 gaskets trans overdrive 1 gasket overdrive adapter rear 1 seal trans overdrive solenoid oil overdrive control shaft oil shifter lever shaft oil and 1 instruction sheet 57 Pass w T G 3754064 1 Note 5 NOTE 5 Consists of 2 O ring seals 1 stator support gasket 3 square ring seals 1 front oil pump seal 1 brake piston seal unit 1 neutral clutch seal unit 1 front pump seal unit 1 oil pan drain screw gasket 1 valve body gasket unit 1 oil seal assy 57 63 Pass w 4 Spd 3840376 1 Note 6 NOTE 6 Consists of 1 trans cover gasket 1 clutch gear brg ret gasket 1 front 1 rear trans rear brg ret 3 O ring seals 1 oil seal assy 58 62 Pass w P G exc 327 3764407 1 Note 16 NOTE 16 Consists of 1 case gasket 1 valve body to case gasket 1 ea right and left hsg side cover gasket 1 rr oil pump gasket 1 servo cover gasket 1 governor cover gasket 1 oil pump suction pipe seal 1 body end plate gasket 1 drive valve body gasket 1 parking lock lever shaft oil seal and 2 O ring seals 59 Pass w T G 3756472 1 Note 5 59 61 Pass w T G 3760222 1 Note 8 NOTE 8 Consists of 2 0 ring seals 3 square ring seals 1 drain screw gasket 1 stator support gasket 1 frt oil pump seal 1 frt pump seal unit 1 brake piston seal unit 1 neutral clutch seal unit 1 valve body gasket unit 1 oil seal assy and 1 vacuum modulator gasket 62 Pass w P G 327 63 64 Pass w P G 3910040 1 Note 17 NOTE 17 Consists of 1 each gasket trans low servo cover front oil pump body governor support body trans upper valve body plate trans transfer plate to upper and lower valve body trans vacuum modulator trans oil pan trans oil pump suction screen trans governor 1 each seal rear oil pump low servo cover front oil pump body oil throttle valve control shaft oil ring speedometer driven gear fitting trans clutch piston outer and inner 7 front oil pump to trans case bolt clutch piston outer 1 seal unit trans reverse clutch piston 1 seal assy trans parking lock and range selector 2 gaskets for transfer plate to valve body upper and lower 1 seal filler tube O ring 0 K I fq3 W o IZl l I l8l l l 0 6 l If 63 64 Pass w Muncie 4 Spd 3917763 1 Note 10 t 1970 CHEVROLET MOTOR DIVISION GENERAL MOTORS CORPORATION P A 30 j 4 004 4 005 4 2
