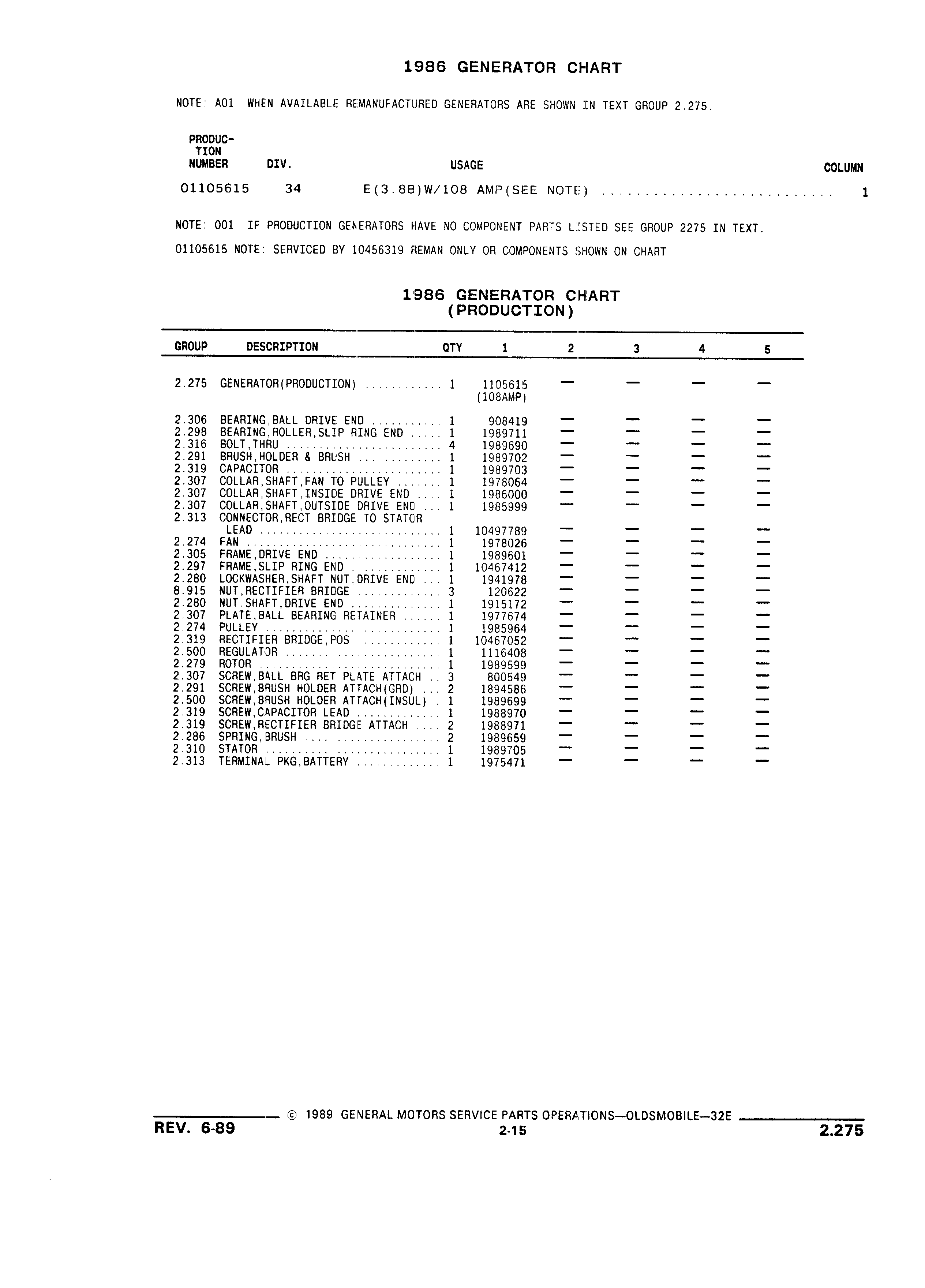

19816 GEENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENEFIATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGBE COLUMN 01105615 34 E 3 8B W 108 AMP S1EE NOTES 1 NOTE 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01105615 NOTE SERVICED BV 10456319 REMAN ONLY OR COMPONENTS SHOWN ON CHART 1 9815 GENERATOR CHART PRODUCTION GROUP DESCRIPTION OTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1105615 108 AMP 2 306 BEARING BALL DRIVE END 1 908419 2 298 BEARING ROLLER SL1 P RING END 1 19897111 2 316 BOLT THRU 4 1989690 2 291 BRUSH HOLDER BRUSH 1 1989702 2 319 CAPACITOR 1 1989703 2 307 COLLAR SHAFT FAN TO PULLEY 1 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 2 307 COLLAR SHAFT OUTSIDE DRIVE END 1 1985999 2 313 CDNNECTOR RECT BRIDGE TO STATOR LEAD 1 10497789 2 274 FAN 1 1978026 2 305 FRAME DRIVE END 1 1989601 2 297 FRAME SLIP RING END 1 10467412 2 280 LOCKWASHER SHAFT NUTADRIVE END 1 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1985964 2 319 RECTIFIER BRIOGE POS 1 10467052 2 500 REGULATOR 1 1116408 2 279 ROTOR 1 1989599 2 307 SCREW B ALL BRG RET PLATE ATTACH 3 800549 2 291 SCREW BRUSH HOLDER ATTACH GRD 2 1894586 2 500 SCREW BRUSH HOLDER ATTACH 1NSUL 1 1989699 2 319 SCREW CAPACITOR LEAD 1 1988970 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 1988971 2 286 SPRING 8RUSH 2 1989659 2 310 STATOR 1 1989705 2 313 TERMINAL PKG BATTERY 1 1975471 i 1989 GENERA1 MOTORS SERVICE PARTS O PERAT IONS OLDSMOB LE 32E REV 6 89 2 1 2 275
