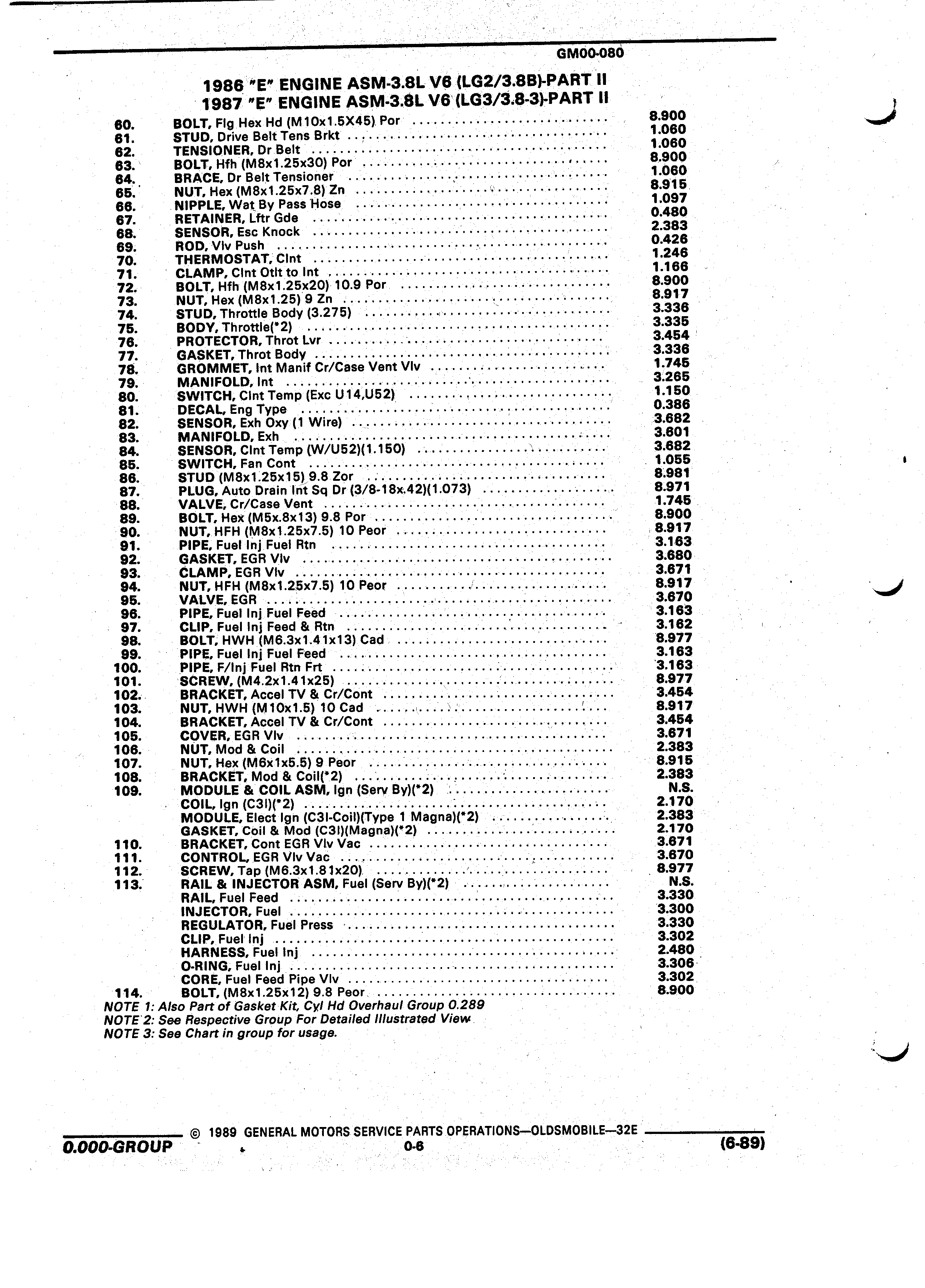

I E I GM00e080 1986 E ENGINE ASM 3 8L V6 LG2 3 88 PART II B I 1987 E ENGINE ASM 3 8L V6 LG3 3 8 3I PART Il 60 BOLT FIg Hex Hd M 10x1 5X45 Por 8 900 61 STUD Drive Belt Tens Brkt 1 060 62 TENSIONER Dr Belt 1 060 V 63 BOLT Hfh M8x1 25x30 Por V 8 900 64 BRACE Dr Belt Tensioner 1 060 65 NUT Hex M8x1 25x7 8 Zn ie 8 915 66 NIPPLE Wat By Pass Hose e 1 097 4 67 RETAINER Lftr Gde G 0 480 68 SENSOR Esc Knock I 2 383 69 ROD Vlv Push 0 426 70 THERMOSTAT Clnt 1 246 71 CLAMP Clnt Otlt to Int 1 166 72 BOLT Hfh M8x1 25x20 10 9 Por 8 900 73 NUT Hex M8x1 25 9 Zn 8 917 74 STUD Throttle Body 3 275 3 336 75 BODY Throttle 2 3 335 76 PROTECTOR Throt Lvr 3 454 l 77 GASKET Throt Body 3 336 78 GROMMET Int Manif Cr Case Vent Vlv 1 745 79 MANIFOLD Int 3 265 E 80 SWITCH Clnt Temp Exc U14 U52 1 150 81 DECAL Eng Type V 0 386 82 SENSOR Exh Oxy 1 Wire 3 682 83 I MANIFOLD Exh 3 601 84 SENSOR Clnt Temp W U52 1 150 2 3 682 I 85 SWITCH Fan Cont 1 055 I 86 STUD M8x1L25x15 9 8 Zor 8 981 87 PLUG Auto Drain Int Sq Dr 3 8 18x 42 1 073 I 8 971 A 88 VALVE Cr Case Vent 1 745 89 BOLT Hex M5x 8x13 9 8 Por A I 8 900 90 NUT HFH M8x1 25x7 5 10 Peor 8 917 91 PIPE Fuel Inj Fuel Rtn 3 1 63 92 GASKET EGR Vlv Q 3 680 93 CLAMP EGR Vlv 3 671 94 NUT HFH M8x1 25x7 5 10 Peor 8 917 I 95 VALVE EGR Q I 3 670 96 PIPE Fuel Inj Fuel Feed I 9 3 163 97 CLIP Fuel Inj Feed Rtn Q 3 162 i I 98 BOLT HWH M6 3x1 41x13 Cad 8 977 99 T PIPE Fuel Inj Fuel Feed 3 163 100 PIPE F Inj Fuel Rtn Frt 3 163 101 SCREW M4 2x1 41x25 8 977 102 BRACKET Accel TV Cr Cont 3 454 103 NUT HWH M10x1 5 10 Cad is C 8 917 104 BRACKET Accel TV Cr Cont 3 454 105 COVER EGR Vlv s 3 671 106 NUT Mod Coil 2 383 e 107 NUT Hex M6x1x5 5 9 Peor V I l 8 915 A 108 BRACKET Mod Coil 2 L 2 383 109 MODULE COIL ASM Ign Serv By 2 L N S COIL Ign C3l 2 A 1 2 170 I I MODULE Elect Ign CSI Coil Type 1 Magna 2 2 383 GASKET Coil Mod C3l Magna 2 2 170 1 10 BRACKET Cont EGR Vlv Vac 3 671 1 1 1 CONTROL EGR Vlv Vac I r S 3 670 112 SCREW Tap M6 3x1 81x20 l I l 8 977 113 RAIL INJECTOR ASM Fuel Serv By 2 N S RAIL Fuel Feed Q Q 4 3 330 INJECTOR Fuel I 3 300 I REGULATOR Fuel Press 3 330 CLIP Fuel Inj 3 302 I HARNESS Fuel Inj I 2 480 O RING Fuel Inj 3 306 CORE Fuel Feed Pipe Vlv 3 302 114 BOLT M8x1 25x12 9 8 Peor 8 900 NOTE 1 Also Part of Gasket Kit Cyl Hd Overhaul Group 0 289 I NOTE 2 See Respective Group For Detailed Illustrated View j NOTE 3 See Chart in group for usage 1989 GENERAL MOTORS SERVICE PARTS OPERATIONS 0LDSMOBlLE 32E L i L 0 000 GROUP 0 e I 6 89I
