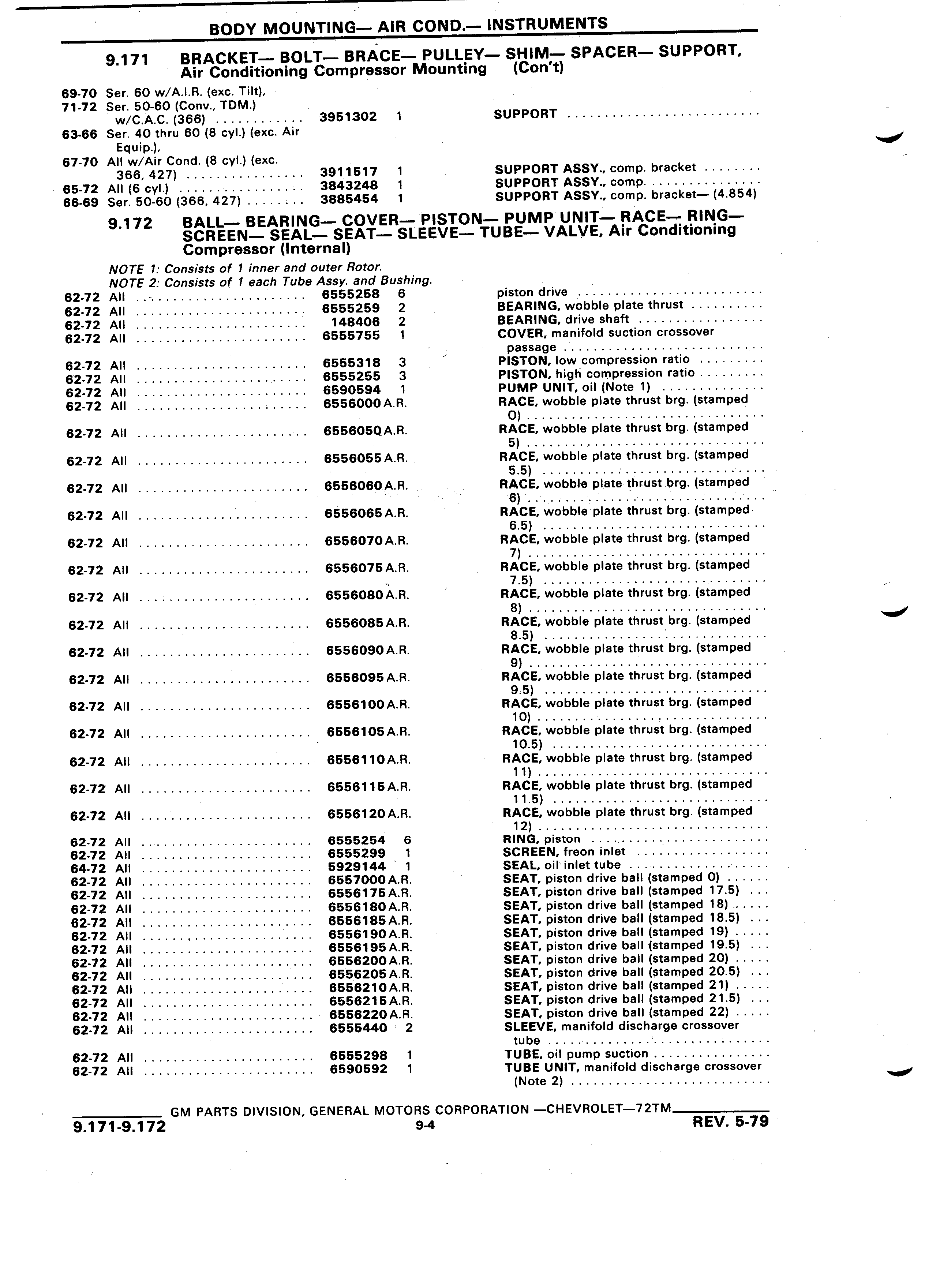

l i BODY MOUNTING AIR COND INSTRUMENTS 9 171 BRACKET BOLT BRACE PULLEY SHIM SPACER SUPPORT Air Conditioning Compressor Mounting Con t 69 70 Ser 60 w A l Fl exc Tilt r V 71 72 Ser 50 60 Conv TDM w C A C 366 3951302 1 SUPPORT 63 66 Ser 40 thru 60 8 cyl exc Air Equip 67 70 All w Air Cond 8 cyl exc 366 427 3911517 1 SUPPORT ASSY comp bracket 65 72 All 6 cyl 3843248 1 SUPPORT ASSY comp 66 69 Ser 50 60 366 427 3885454 1 SUPPORT ASSY comp bracket 4 854 9 172 BALL BEARING COVER PISTON PUMP UNIT RACE RING SCREEN SEAL SEAT SLEEVE TUBE VALVE Air Conditioning Compressor Internal i NOTE 1 Consists of 1 inner and outer Rotor NOTE 2 Consists of 1 each Tube Assy and Bushing 62 72 All 6555258 6 piston drive 62 72 All 6555259 2 BEARING wobble plate thrust 62 72 All 148406 2 BEARING drive shaft 62 72 All 6555755 1 COVER manifold suction crossover A passage 62 72 All 6555318 3 PISTON low compression ratio 6 2 72 All 6555255 3 PISTON high compression ratio 62 72 All 6590594 1 PUMP UNIT oil Note 1 62 72 All 6556000 A R RACE wobble plate thrust brg stamped O 62 72 All 655605QA R RACE wobble plate thrust brg stamped 5 62 72 All 6556055 A R RACE wobble plate thrust brg stamped 5 5 V 62 72 All 6556060A R RACE wobble plate thrust brg stamped 6 I 62 72 All 6556065 A R RACE wobble plate thrust brg stamped 6 5 62 72 All 6556070 A R RACE wobble plate thrust brg stamped 7 62 72 All 6556075 A R RACE wobble plate thrust brg stamped 7 5 62 72 All 6556080 A R RACE wobble plate thrust brg stamped f 8 62 72 All 6556085 A R RACE wobble plate thrust brg stamped 8 5 62 72 All 6556090 A R RACE wobble plate thrust brg stamped 9 62 72 All 6556095 A R RACE wobble plate thrust brg stamped 9 5 62 72 All 6556100A R RACE wobble plate thrust brg stamped 10 62 72 All 6556105 A R RACE wobble plate thrust brg stamped 10 5 62 72 All 6556110A R RACE wobble plate thrust brg stamped 1 1 62 72 All 6556115A R RACE wobble plate thrust brg stamped 1 1 5 62 72 All 6556120 A R RACE wobble plate thrust brg stamped 12 62 72 All 6555254 6 RING piston 62 72 All 6555299 1 SCREEN freon inlet 64 72 All 5929144 1 SEAL oilinlet tube 62 72 All 6557000A R SEAT piston drive ball stamped 0 62 72 All 6556175A R SEAT piston drive ball stamped 17 5 62 72 All 6556180 A R SEAT piston drive ball stamped 18 62 72 All 6556185 A R SEAT piston drive ball stamped 18 5 62 72 All 6556190A R SEAT piston drive ball stamped 19 62 72 All 6556195 A R SEAT piston drive ball stamped 19 5 62 72 All 6556200A R SEAT piston drive ball stamped 20 62 72 All 6556205 A R SEAT piston drive ball stamped 20 5 62 72 All 6556210A R SEAT piston drive ball stamped 21 L 62 72 All 6556215A R SEAT piston drive ball stamped 21 5 62 72 All 6556220 A Fl SEAT piston drive ball stamped 22 62 72 All 6555440 2 SLEEVE manifold discharge crossover tube 62 72 All 6555298 1 TUBE oil pump suction 62 72 All 6590592 1 TUBE UNIT manifold discharge crossover Note 2 GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 72TM 9 171 9 172 9 4 REV 5 79
