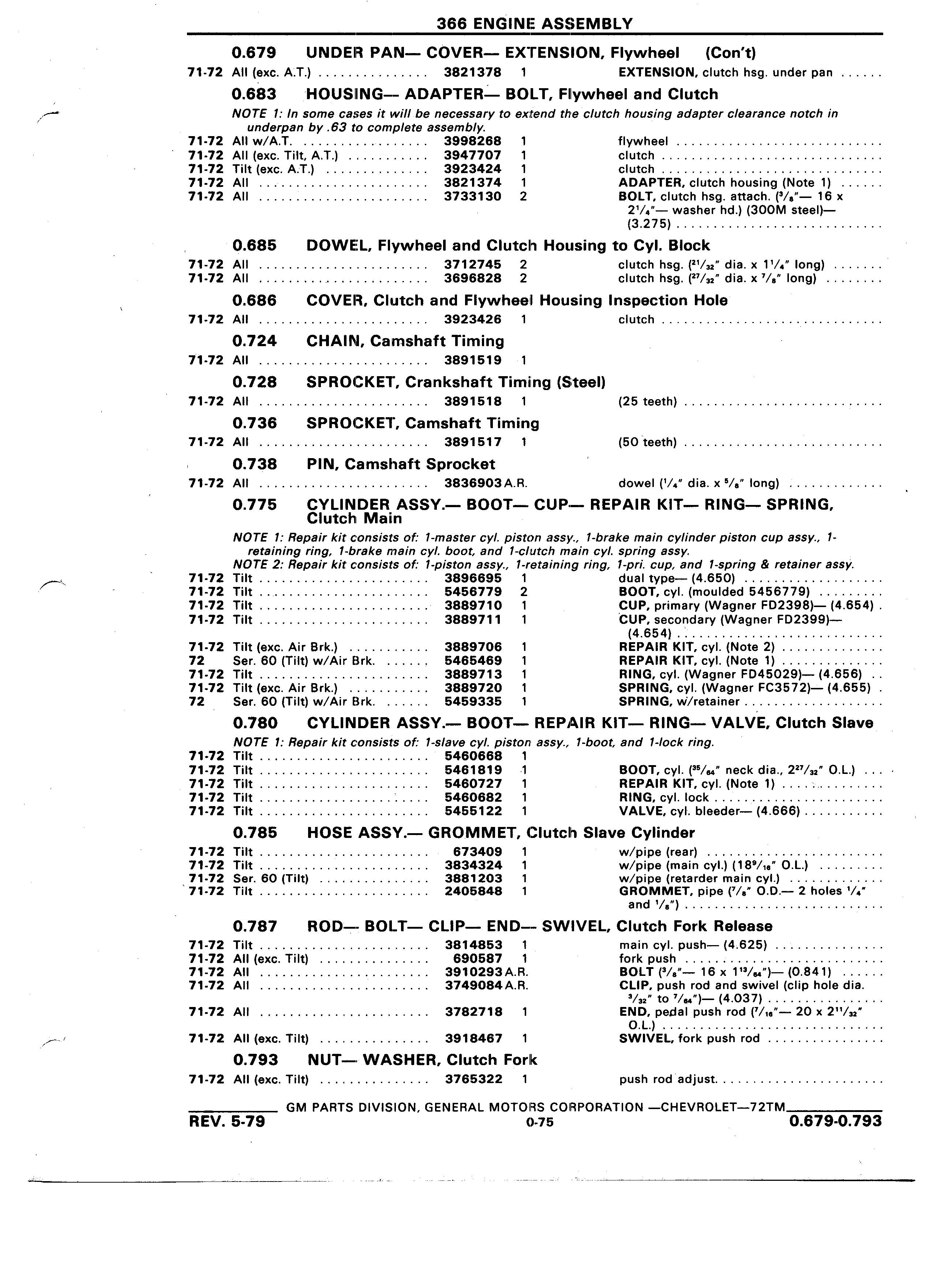

366 ENGINIE ASSEMBLY 0 679 UNDEIFI PAN COVER EX l ENSlON Flywheel Con t 71 72 All exc A T 3821378 1 EXTENSION clutch hsg under pan I 0 683 HOUSIING ADAPTER BOLT Fllywheel and Clutch NOTE 1 ln some cases it will be necessary to extend the clutch housing adapter clearance notch in underpan by 63 to complete assembly 71 72 All w A T 3998268 1 flywheel 71 72 All exc Tilt A T 3947707 1 clutch 71 72 Tilt exc A T 3923424 1 clutch 71 72 All 3821374 1 ADAPTER clutch housing Note 1 71 72 All 3733130 2 BOLT clutch hsg attach 16 x 2 4 washer hd 30OM steel 3 275 g 0 685 DOWEEL Flywheel and Clutclh Housing to Cyl Block 1 71 72 All 3712745 2 clutch hsg I u dia x 1 long 71 72 All 3696828 2 clutch hsg 7 az dia x long 0 686 COVER Clutch and Flywheel Housing Inspection Hole 71 72 All 3923426 1 clutch 0 724 CHAIN Camshaft Timing A 71 72 All 3891519 1 0 728 SPROCKET Crankshaft Timing Sateel 71 72 All 3891518 1 25 teeth 0 736 SPROCKET Camshaft Timing 71 72 All 3891517 1 5OIteeth l 0 738 PIN Camshaft Sprocket 71 72 All 3836903A R dowel dia x long 0 775 CYLlNDER ASSY BOOT CUP REPAIR KIT RING SPRING Clutch Main NOTE 1 Repair kit c onsists of 1 master cyl piston assy 1 brake main cylinder piston cup assy 1 retaining ring 1 brake main cyl boot and 1 clutch main cyl spring assy NOTE 2 Repair kit consists ok 1 piston assy 1 retaining ring 1 pri cup and 1 spring retainer assy 71 72 Tilt 3896695 1 dual type 4 650 r 71 72 Tilt 5456779 2 BOOT cyl moulded 5456779 71 72 Tilt 3889710 1 CUP primary Wagner FD2398 4 654 71 72 Tilt 3889711 1 CUP secondary Wagner FD2399 4 654 L 71 72 Tilt exc Air Brk 3889706 1 REPAIR KIT cyl Note 2 72 Ser 60 Tilt w Air Brk 5465469 1 REPAIR KIT cyl Note 1 71 72 Tilt 3889713 1 RING cyl Wagner FD45029 4 656 71 72 Tilt exc Air Brk 3889720 1 SPRING cyl Wagner FC3572 4 655 72 Ser 60 Tilt w Air Brk 5459335 1 SPRING vii retainer 0 780 CYLINDER ASSY BOOT REPAIR KIT RING VALVE Clutch Slave NOTE 1 Repair kit consists of 1 slave cyl piston assy 1 boot and 1 lock ring 71 72 Tilt 5460668 1 71 72 Tilt 5461819 1 BOOT cyl neck dia 2 u O L 71 72 Tilt 5460727 1 REPAIR KIT cyl Note 1 71 72 Tilt 5 460682 1 RING cyl lock 71 72 Tilt 5455122 1 VALVE cyl bleeder 4 666 0 785 HOSE ASSY GROMMET Clutclh Slave Cylinder 71 72 Tilt 673409 1 w pipe rear 71 72 Tilt 3834324 1 w pipe main cyl 18 i O L 71 72 Ser 60 Tilt 3881203 1 w pipe retarder main cyl 71 72 Tilt 2405848 1 GROMMET pipe O D 2 holes and gl 0 787 ROD BOLT CLIP END SWIVEL Clutch Fork Release 71 72 Tilt 3814853 1 main cyl push 4 625 71 72 All exc Tilt 690587 1 fork push 71 72 All 3910293A R BOLT 16 x 1 0 841 71 72 All 3749084A R CLIP push rod and swivel clip hole dia 2 to 4 037 71 72 All 3782718 1 END pedal push rod l 20 x 2 n 0 L 71 72 All exc Tilt 3918467 1 SWIVEL fork push rod 0 793 NUT WASHER Clutch Forlk 71 72 All exc Tilt 3765322 1 push rodiadjust GM PARTS DIVISION GENERAL MOTOIRS COIRPORATION CHEVROLET 72TM REV 5 79 0 75 0 679 0 793
