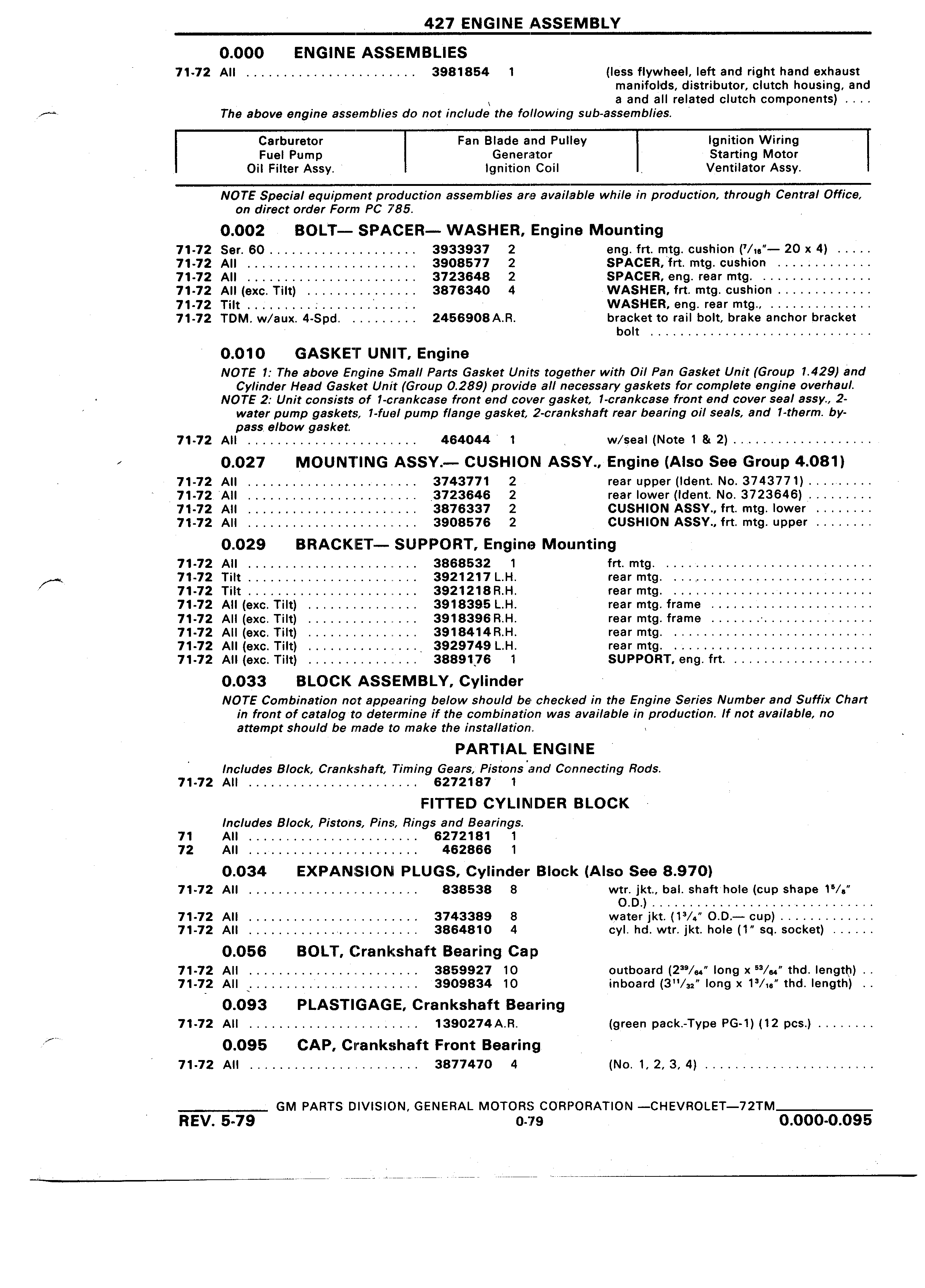

A 427 ENGINE ASSEMBLY 0 000 ENGINE ASSEMBLIES i 71 72 All 3981854 1 less flywheel left and right hand exhaust manifolds distributor clutch housing and a and all related clutch components rn The above engine assemblies do not include the following sub assemb ies A Carburetor Fan Blade and Pulley Ignition Wiring Fuel Pump Generator Starting Motor I Oil Filter Assy Ignition Coil Ventilator Assy NOTE Special equipment production assemblies are available while in production through Central Office on direct order Form PC 785 A 0 002 BOLT SPACER WASHER Engine Mounting 71 72 Ser 60 3933937 2 eng frt mtg cushion ii 20 x 4 71 72 All 3908577 2 SPACER frt mtg cushion 71 72 All 3723648 2 SPACER eng rear mtg 71 72 All exc Tilt 3876340 4 WASHER frt mtg cushion 71 72 Tilt A WASHER eng rear mtg 71 72 TDM w aux 4 Spd 2456908 A R bracket to rail bolt brake anchor bracket bolt 0 010 GASKET UNIT Engine NOTE 1 The above Engine Small Parts Gasket Units together with Oil Pan Gasket Unit Group 1 429 and Cylinder Head Gasket Unit Group 0 289 provide all necessary gaskets for complete engine overhaul NOTE 2 Unit consists of 1 crankcase front end cover gasket 1 crankcase front end cover seal assy 2 water pump gaskets 1 fue pump flange gasket 2 crankshaft rear bearing oil seals and 1 therm by pass elbow gasket 71 72 All 464044 I 1 w seal Note 1 2 r 0 027 MOUN I lNG ASSY CUSHION ASSY Engine Also See Group 4 081 71 72 All 3743771 2 rear upper ldent No 3743771 71 72 All 3723646 2 rear lower ldent No 3723646 71 72 All 3876337 2 CUSHION ASSY frt mtg lower 71 72 All 3908576 2 CUSHION ASSY frt mtg upper 0 029 BRACKIET SUPPORT Engine Mounting 71 72 All 3868532 1 frt mtg t 71 72 Tilt 3921217 L H rear mtg 71 72 Tilt 3921218R H rear mtg 71 72 All exc Tilt 3918395 L H rear mtg frame 71 72 All exc Tilt 3918396 R H rear mtg frame 71 72 All exc Tilt 3918414R H rear mtg 71 72 All exc Tilt 3929749 L H rear mtg 71 72 All exc Tilt 3889176 1 SUPPORT eng frt 0 033 BLOCK ASSEMBLY Cylinder NOTE Combination not appearing below should be checked in the Engine Series Number and Suffix Chart in front of catalog to determine if the combination was available in production lf not available no attempt should be made to make the installation I PARTIAL ENGIINE A Includes Block Crankshaft Timing Gears Pistons and Connecting Rods 71 72 All 6272187 1 L FITTED CYLINIDER BLOCK Includes Block Pistons Pins Rings and Bearings 71 All 6272181 1 72 All 462866 1 0 034 EXPANSION PLUGS Cylinder Block Also See 8 970 71 72 All 838538 8 wtr jkt bal shaft hole cup shape 1 0 D 71 72 All 3743389 8 water jkt 1 4 O D cup 71 72 All 3864810 4 cyl hd wtr jkt hole 1 sq socket 0 056 BOLT Crankshaft Bearing Cap 71 72 All 3859927 10 outboard 2 M long x 5 M thd length 71 72 All 3909834 10 inboard 3 a2 long x 1 w thd length 0 093 PLASTIGAGE Crankshaft Bearing 71 72 All 1390274A R green pack Type PG 1 12 pcs A 0 095 CAP Crankshaft Front Bearing 4 71 72 All 3877470 4 No 1 2 3 4 V GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 72TM REV 5 79 0 79 0 000 0 095
