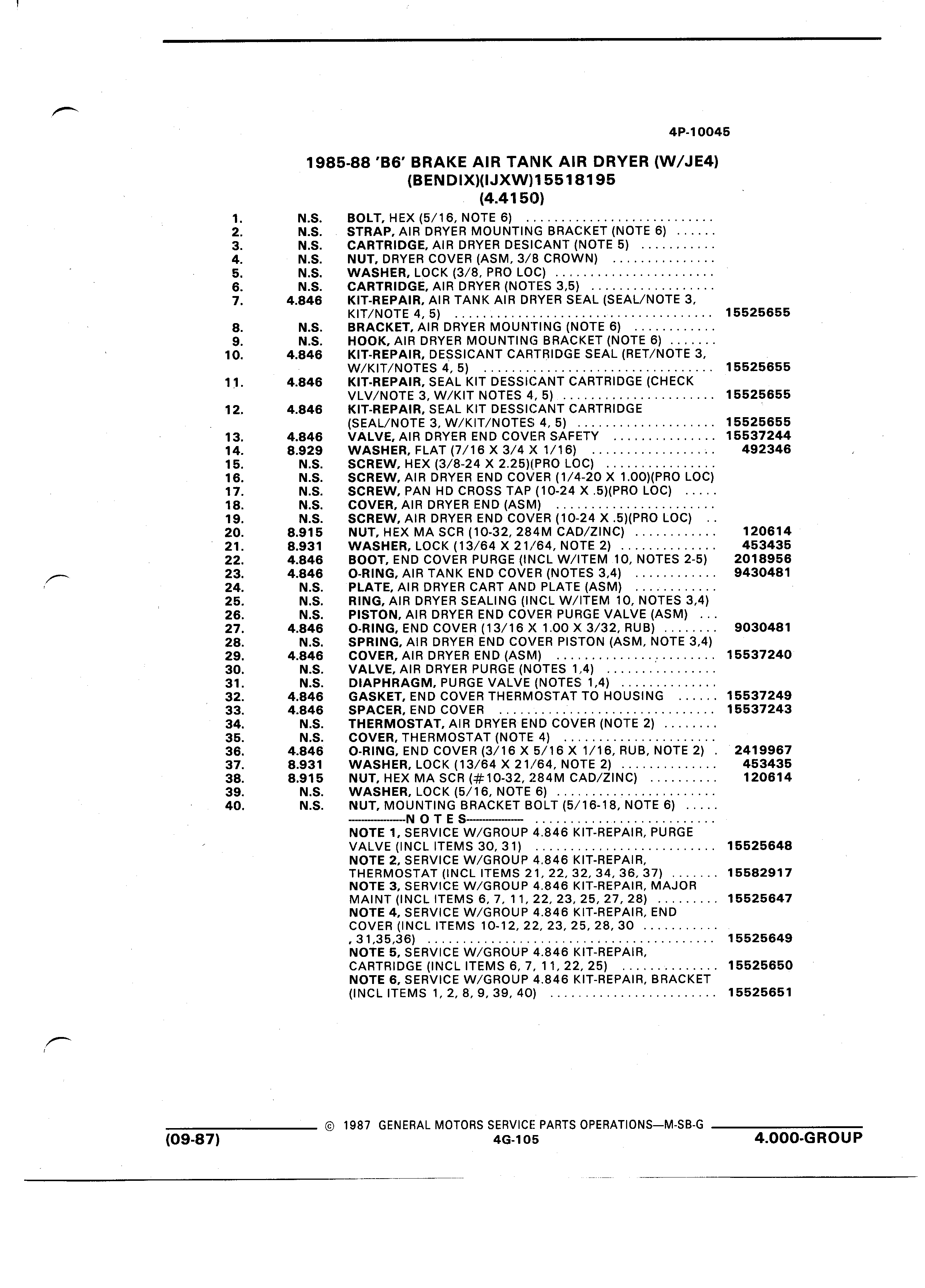

I f 4P 10045 1985 88 B6 BRAKE AIR TANK AIR DRYER W JE4 BENDIX IJXW 155181 95 8 4 4150 1 N S BOLT HEX 5 16 NOTE 6 2 N S STRAP AIR DRYER MOUNTING BRACKET NOTE 6 3 N S CARTRIDGE AIR DRYER DESICANT NOTE 5 4 N S NUT DRYER COVER ASM 3 B CROWN I 5 N S WASHER LOCK 3 8 PRO LOC 6 N S CARTRIDGE AIR DRYER NOTES 3 5 7 4 846 KIT REPAIR AIR TANK AIR DRYER SEAL SEAL NOTE 3 KIT NOTE 4 5 15525655 I 8 N S BRACKET AIR DRYER MOUN I NG NOTE 6 9 N S HOOK AIR DRYER MOUNTING BRACKET NOTE 6 10 4 846 KIT REPAIR DESSICANT CARTRIDGE SEAL RET NOTE 3 W KIT NOTES 4 5 15525655 11 4 846 KIT REPAIR SEAL KIT DESSICANT CARTRIDGE CHECK VLV NOTE 3 W KIT NOTES 4 5 15525655 12 4 846 KIT REPAIR SEAL KIT DESSICANT CARTRIDGE SEAL NOTE 3 W KIT NOTES 4 5 15525655 I 13 4 846 VALVE AIR DRYER END COVER SAFETY 15537244 14 8 929 WASHER FLAT 7 16 X 3 4 X 1 16 492346 15 N S SCREW HEX 3 8 24 X 2 25 PRO LOC 16 N S SCREW AIR DRYER END COVER 1 4 20 X 1 00 PRO LOC 17 N S SCREW PAN HD CROSS TAP 10 24 X 5 PRO LOC 18 N S COVER AIR DRYER END ASM 19 N S SCREW AIR DRYER END COVER 10 24 X 5 PRO LOC 20 8 915 NUT HEX MA SCR 10 32 284M CAD ZINC 120614 21 8 931 WASHER LOCK 13 64 X 21 64 NOTE 2 453435 22 4 846 BOOT END COVER PURGE INCL W ITEM 10 NOTES 2 5 2018956 23 4 846 O R NG AIR TANK END COVER NOTES 3 4 9430481 24 N S PLATE AIR DRYER CART AND PLATE ASM 25 N S RING AIR DRYER SEALING INCL W ITEM 10 NOTES 3 4 26 N S PISTON AIR DRYER END COVER PURGE VALVE ASM 27 4 846 O RING END COVER 13 16 X 1 00 X 3 32 RUB 9030481 28 N S SPRING AIR DRYER END COVER PISTON ASM NOTE 3 4 29 4 846 COVER AIR DRYER END ASM A 15537240 30 N S VALVE AIR DRYER PURGE NOTES 1 4 31 N S DIAPHRAGM PURGE VALVE NOTES 1 4 I 32 4 846 GASKET END COVER THERMOSTAT TO HOUSING 15537249 33 4 846 SPACER END COVER 15537243 34 N S THERMOSTAT AIR DRYER END COVER NOTE 2 35 N S COVER THERMOSTAT NOTE 4 36 4 846 O RING END COVER 3 16 X 5 16 X 1 16 RUB NOTE 2 2419967 37 8 931 WASHER LOCK 13 64 X 21 64 NOTE 2 453435 38 8 915 NUT HEX MA SCR 10 32 284M CAD ZINC 120614 39 N S WASHER LOCK 5 16 NOTE 6 40 N S NUT MOUNTING BRACKET BOLT 5 16 18 NOTE 6 N O T E S NOTE 1 SERVICE W GROUP 4 846 K T REPA R PURGE VALVE INCL ITEMS 30 31 15525648 NOTE 2 SERVICE W GROUP 4 846 KIT REPAIR THERMOSTAT INCL ITEMS 21 22 32 34 36 37 15582917 NOTE 3 SERVICE W GROUP 4 846 KIT REPAIR MAJOR MAINT INCL ITEMS 6 7 11 22 23 25 27 28 15525647 NOTE 4 SERVICE W GROUP 4 846 KIT REPA R END COVER INCL ITEMS 10 12 22 23 25 28 30 31 35 36 15525649 NOTE 5 SERVICE W GROUP 4 846 KIT REPAIR CARTRIDGE INCL ITEMS 6 7 11 22 25 15525650 NOTE 6 SERVICE W GROUP 4 846 KIT REPAIR BRACKET INCL ITEMS 1 2 8 9 39 40 15525651 1987 GENERAL MOTORS SERVICE PARTS OPERATIONS M SB G t 09 87 4G 105 4 000 GROUP
