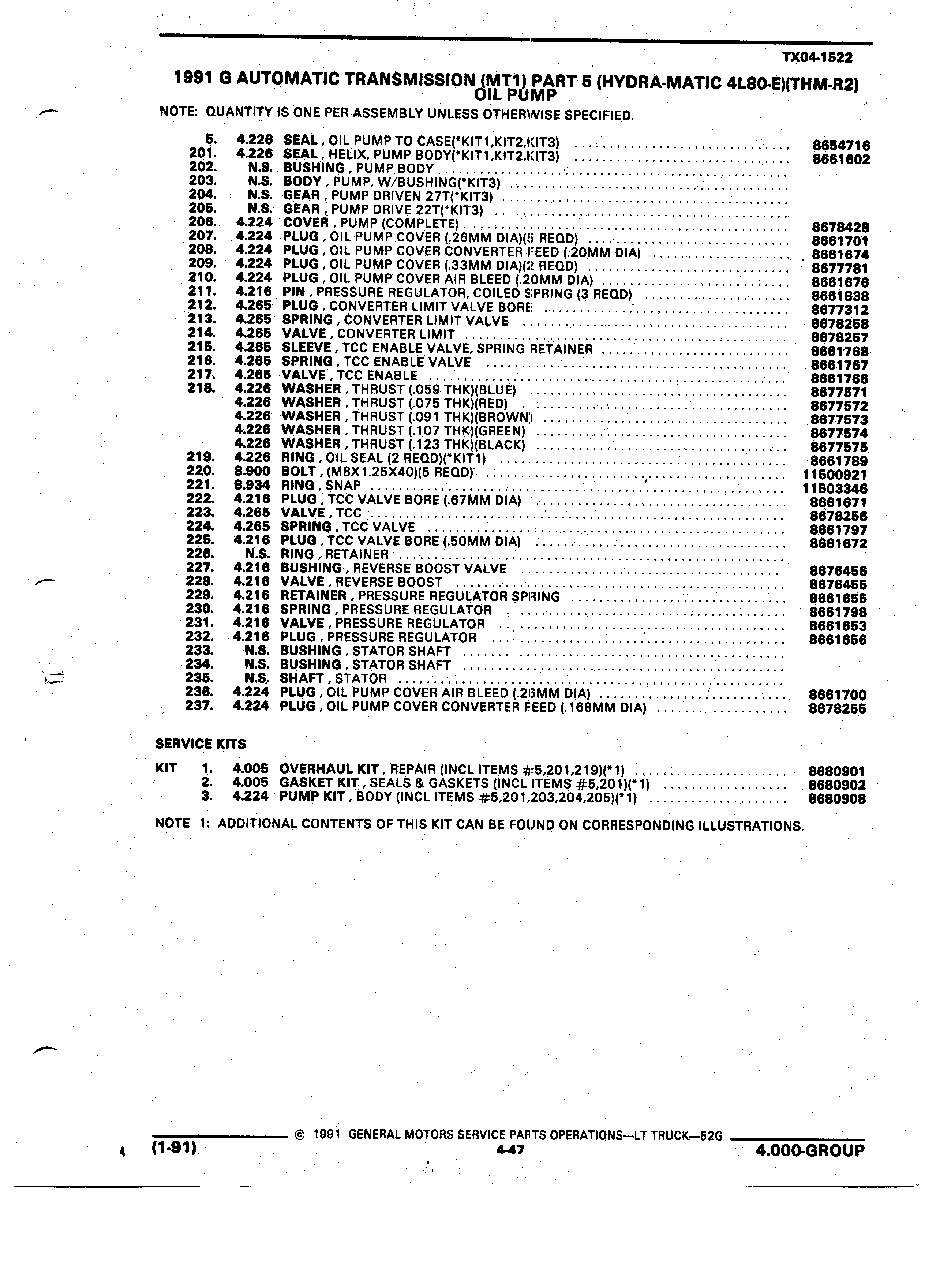

I A TX04 1522 1991 G AUTOMATIC TRANSMISSION 5 HYDRA MATIC 4L80 E THM R2 NOTE QUANTITY IS ONE PER ASSEMBLY UNLESS OTHERWISE SPECIFIED 5 4 226 SEAL OIL PUMP TO CASE KIT1 KIT2 I IT3 I 8654718 201 4 226 SEAL HELIX PUMP BODY KIT1 KIT2 KIT3 8661602 I 202 N S BUSHING PUMP BODY I Q 203 N S BODY PUMP W BUSHING KIT3 204 N S GEAR PUMP DRIVEN 27T KlT3 II 205 N S GEAR PUMP DRIVE 22T KIT3 206 4 224 COVER PUMP COMPLETE 8678428 207 4 224 PLUG OIL PUMP COVER 26MM DIA 5 REQD 8661701 208 4 224 PLUG OIL PUMP COVER CONVERTER FEED 2OMM DIA 8661674 209 4 224 PLUG OIL PUMP COVER 33MM DIA iZ REOD 8677781 210 4 224 PLUG OIL PUMP COVER AIR BLEED 20MM DIA I 8661676 I 211 4 216 PIN PRESSURE REGULATOR COILED SPRING 3 REOD 8661838 212 4 265 PLUG CONVERTER LIMIT VALVE BORE I 8677312 213 4 265 SPRING CONVERTER LIMIT VALVE 8678258 214 4 265 VALVE CONVERTER LIMIT L V 6676257 215 4 265 SLEEVE TCC ENABLE VALVE SPRING RETAINER 8661768 216 4 265 SPRING TCC ENABLE VALVE 8661767 217 4 265 VALVE TCC ENABLE 8661766 218 4 226 WASHER THRUST 059 THK BLUEE 8677571 4 226 WASHER THRUST 075 THK RED 8677572 4 226 WASHER THRUST 091 THK BROWN 8677573 4 226 WASHER THRUST 107 THK G RE EN 8677574 I 4 226 WASHER THRUST 123 THK BLACK 8677575 219 4 226 RING OIL SEAL 2 REOD KIT1 8661789 220 8 900 BOLT M8X1 25X40 5 REQD I 11500921 221 8 934 RING SNAP I 11503346 I 222 4 216 PLUG TCC VALVE BORE 67 MM DIA I 8661671 223 4 265 VALVE TCC 8678256 I 224 4 265 SPRING TCC VALVE 8661797 225 4 216 PLUG TCC VALVE BORE 5OMM DIA 8661672 226 N S RING RETAINER A V I 227 4 216 BUSHING REVERSE BOOST VALVE 8676456 228 4 216 VALVE REVERSE BOOST 8676455 229 4 216 RETAINER PRESSURE REGULATOR SPIRING I 8861655 230 4 216 SPRING PRESSURE REGULATOR I 8661798 V 231 4 216 VALVE PRESSURE REGULATOR Q 8661653 232 4 216 PLUG PRESSURE REGULATOR I 8661656 233 N S BUSHING STATOR SHAFT 0 234 N S BUSHING STATOR SHAFT I I YZ 235 N S SHAFT STATOR I 236 4 224 PLUG OIL PUMP COVER AIR BLEED 2I5MM DIA 8661700 3 237 4 224 PLUG OIL PUMP COVER CONVERTER FEED I58M4M DIA 8678255 SERVICE KITS I KIT 1 4 005 OVERHAUL KIT REPAIR INCL ITEMS 5 201 219 1 E 8680901 2 4 005 GASKET KIT SEALS GASKETS INCL ITEMS 5 201 1 8680902 3 4 224 PUMP KIT BODY INCL ITEMS 5 201 203 204 205 1 8680908 NOTE 1 ADDITIONAL CONTENTS OF THIS KIT CAN BE FOUND OIN CORRESPONDING ILLUSTRATIONS j 1991 GENERAL MOTORS SERVICE PARTS OPERATIONS LT TRUCK 526 j 1 9 1 4 47 I 5 4 000 GROUP
