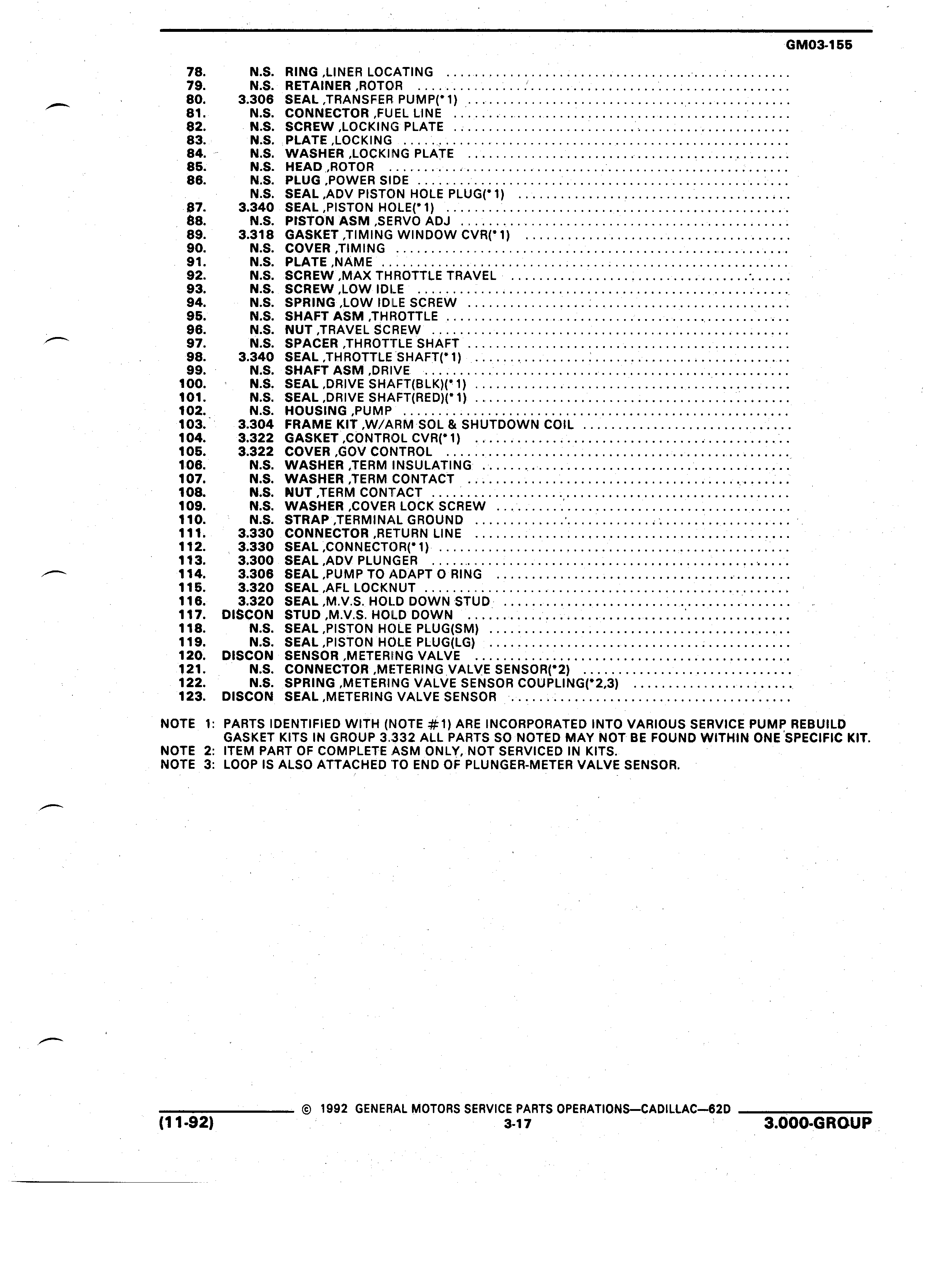

I GM03 155 78 N S RING LINER LOCATING 79 N S RETAINER ROTOR I 80 3 306 SEAL TRANSFER PUMP 1 A A 4 81 N S CONNECTOR FU EL LINE 82 N S SCREW LOCKING PLATE A 83 N S PLATE LOCK NG AA 84 J N S WASHER LOCKIING PLATE A A 85 N S HEAD ROTOR 86 N S PLUG POWER SIDE N S SEAL ADV PISTON HOLE PLUG 1 87 3 340 SEAL P STON HOLE 1 A 88 N S PISTON ASM SERVO ADJ 89 3 318 GASKET T M NG WINDOW CVR 1 A 90 N S COVER TIM NG 91 N S PLATE NAME I 92 N S SCREW MAX THROTTLE TRAVEL 93 N S SCREW LOW IDLE A 94 N S SPRING LOW IDILE SCREW J 95 N S SHAFT ASM TAHROTTLE A 96 N S NUT TRAVEL SCREW 97 N S SPACER THROTTLE SHAFT 98 3 340 SEAL THROTTLE SHAFT 1 A Q 99 N S SHAFT ASM DR VE A 100 N S SEAL DRIVE SHAFT BLK 1 101 N S SEAL DR VE SHAFT RED 1 Q 102 A N S HOUSING PUMP 103 3 304 FRAME KIT W ARMSOL SHUTDOWN COIL 104 3 322 GASKET CONTROL CVR 1 I 105 3 322 COVER GOV CONTROL A 106 N S WASHER TERM INSULATING 107 N S WASHER TERM CONTACT A 108 N S NUT TERM CONTACT Q A 109 N S WASHER COVEFI LOCK SCREW 110 N S STRAP TERM NAL GROUND A 11 1 3 330 CONNECTOR RETURN LINE I 112 A 3 330 SEAL CONNECTOR 1 1 13 3 300 SEAL ADV PLUNGER 1 14 3 306 SEAL PUMP TO ADAPT O RING 1 15 3 320 SEAL AFL LOCKNUT A 116 3 320 SEAL M V S HOl D DOWN STUD 1 17 DISCON STUD M V S HOLD DOWN 118 N S SEAL P STON HOLE PLUG SM 119 N S SEAL P STON HOLE PLUG LG 120 DISCON SENSOR METERING VALVE A 121 N S CONNECTOR METERINGAVALVE SENSOR 2 122 N S SPRING METERING VALVE SENSOR COUPL NG 2 3 123 DISCON SEAL METERING VALVE SENSOR I NOTE 1 PARTS IDENTIFIED WITH NOTE 1 ARE INCORPORATED INTO VARIOUS SERVICE PUMP REBUILD GASKET KITS IN GROUP 3 2332 ALL PARTS SO NOTED MAY NOT BE FOUND WITHIN ONE SPECIFIC KIT NOTE 2 ITEM PART OF COMPLETE ASM ONLY NOT SERVICED IN KITS NOTE 3 LOOP IS ALSO ATTACHED TO END OF PLUNGER METER VALVE SENSOR r 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CADILLAC 62D TY 11 92 I A 3 17 3 000 GROUP
