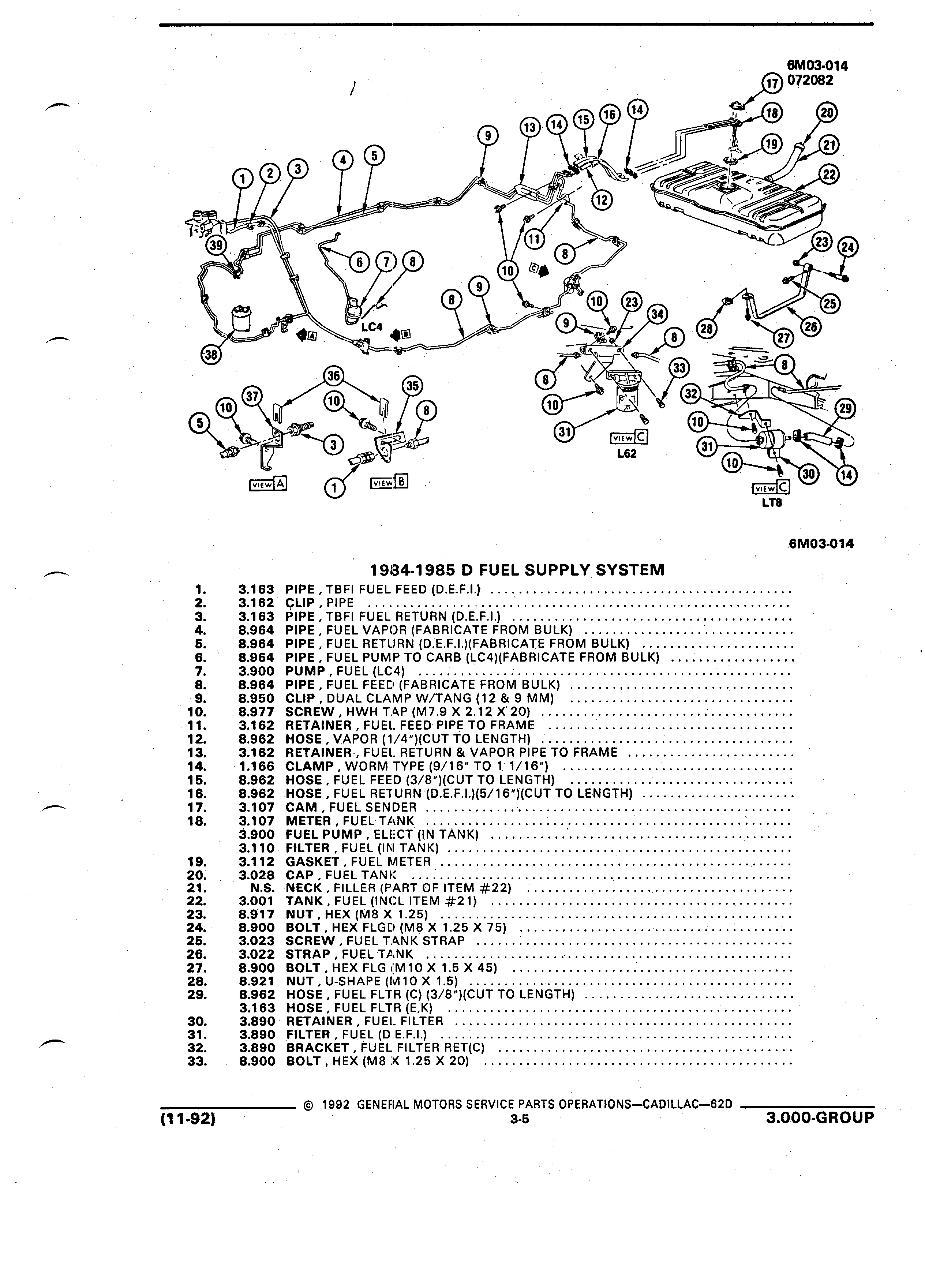

I GM03 014 Ga 072082 Q ws m I 6 FT f Y Q 0 0 fri TB Q I I N 5 if F I 6 A f 3 7 ID 0 1 I G gg 0 0 f G by w V EI I T I r JJ i E I F 0 4 I A 1 V V H 9 j T 5 HI h l I 6 I l X 7 E i 5 v wC y J v Q Y g L62 A 6 I vnzw C m V LT8 6M03 014 L A 1984 1985 D FUEL SUPPLY SYSTEM 1 3 163 PIPE TBFI FUEL FEED D E F I 2 3 162 CLIP PIPE 3 3 163 PIPE TBFI FUEL RETURN D E F I 4 8 964 PIPE FUEL VAPOR FABRICATE FROM BULK 5 8 964 PIPE FUEL RETURN D E F FABRICATE FROM BULK 6 8 964 PIPE FUEL PUMP TO CARB LC4 FABR CATE FROM BULK 7 3 900 PUMP FUEL LC4 8 8 964 PIPE FUEL FEED FABRICATE FROM BULK 9 8 950 CLIP DUAL CLAMP W TANG 12 9 MM 10 8 977 SCREW HWH TAP M7 9 X 2 12 X 20 11 3 162 RETAINER FUEI FEED PIPE TO FRAME 12 8 962 HOSE VAPOR 1 4 CUT TO LENGTH 13 3 162 RETAINER FUEL RETURN VAPOR PIPE TO FRAME 14 1 166 CLAMP WORM TYPE 9 16 TO 1 1 16 15 8 962 HOSE FUEL FEED 3 8 CUT TO LENGTH 16 8 962 HOSE FUEL RET URN D E F 5 16 CUT TO I ENGTH z 17 3 107 CAM FUEL SENDER 18 3 107 METER FUEL TANK V L 3 900 FUEL PUMP ELECT IN TANK 3 110 FILTER FUEL IN TANK 19 3 112 GASKET FUEL METER 20 3 028 CAP FUEL TANK L 21 N S NECK FILLER PART OF ITEM 22 22 3 001 TANK FUEL INCL ITEM 21 23 8 917 NUT HEX M8 X 1 25 24 8 900 BOLT HEX FLGD M8 X 1 25 X 75 25 3 023 SCREW FUEL TANK STRAP 26 3 022 STRAP FUEL TANK 27 8 900 BOLT HEX FLG M10 X 1 5 X 45 28 8 921 NUT U SHAPE M10 X 1 5 29 8 962 HOSE FUEL FLTR C 3 8 CUT T0 LENGTH 3 163 HOSE FUEL FLTR E K 30 3 890 RETAINER FUEI FILTER 31 3 890 FILTER FUEL D E F I 32 3 890 BRACKET FUEL FILTER RET C 33 8 900 BOLT HEX M8 X 1 25 X 20 1992 GENEFIAL MOTORS SERVICE PARTS OPERATIONS CADILLAC 62D 1 1 92 3 5 3 000 GROUP
