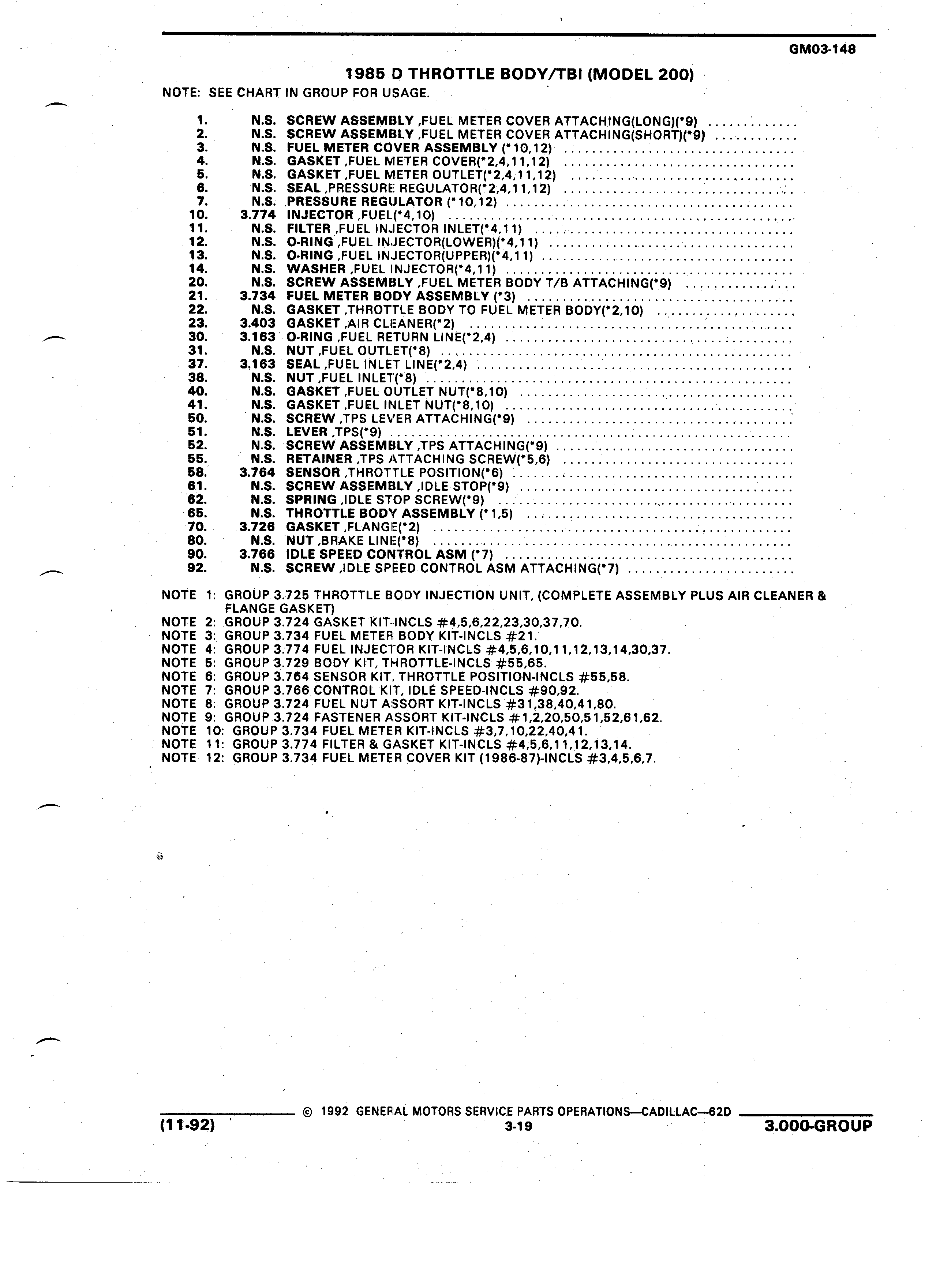

GM03 148 I 1985 D THROTTLE BODY TBI MODEL 200 NOTE SEE CHART IN GROUP FOR USAGE I 1 N S SCREW ASSEMBLY FUEL METER COVER ATTACHING LONG 9 Q 2 N S SCREW ASSEMBLY FUEL METER COVER ATTACHING SHORT 9 r 3 N S FUEL METER COVER ASSEMBLY 10 12 4 N S GASKET FUEL METER COVER 2 4 11 12 5 N S GASKET FUEL METER OUTLET 2 4 11 12 6 N S SEAL PRESSUREE REGULATOR 2 4 11 12 V 7 N S PRESSURE REGULATOR 10 12 10 3 774 INJECTOR FUEL 4 10 11 N S FILTER FUEL INJECTOR NLET 4 1 1 12 N S O R NG FUEL IN JECTOFI LOWER 4 11 13 N S O RING FUEL IN JECTOR UPPER 4 11 14 N S WASHER FUEL NJECTOR 4 1 1 20 N S SCREW ASSEMBLY FUEL METER BODY T B ATTACH NG 9 21 3 734 FUEL METER BODY ASSEMBLY 3 22 N S GASKET THROT TLE BODY TO FUEL METER BODY 2 10 23 3 403 GASKET AIR CLIEANER 2 30 3 163 O RING FUEL RETURN LINE 2 4 31 N S NUT FUEL OUTLET 8 37 3 163 SEAL FUEL INLET LINE 2 4 38 N S NUT FUEL INLET 8 40 N S GASKET FUEL OUTLET NUT 8 10 41 A N S GASKET FUEL INLET NUT 8 10 50 N S SCREW TPS LEVER ATTACHING 9 I 51 N S LEVER TPS 9 52 N S SCREW ASSEMBLY TPS ATTACHING 9 55 N S RETAINER TPS ATTACHING SCREW 5 6 58 3 764 SENSOR THROT TLE POSIT ON 6 61 N S SCREW ASSEMBLY IDLE STOP 9 62 N S SPRING IDLE STOP SCREW 9 65 N S THROTTLE BODY ASSEMBLY 1 5 70 3 726 GASKET FLANGE 2 J 80 N S NUT BRAKE LINE 8 90 3 766 IDLE SPEED CONTROL ASM 7 92 N S SCREW IDLE SPEED CONTROL ASM ATTACHING 7 NOTE 1 GROUP 3 725 THROTTLE BODY INJECTION UNIT COMPLETE ASSEMBLY PLUS AIR CLEANER FLANGE GASKET NOTE 2 GROUP 3 724 GASKET K T INCLS 4 5 6 22 23 30 37 70 NOTE 3 GROUP 3 734 FUEL METER BODY KIT INCLS 21 NOTE 4 GROUP 3 774 FUEL INJECTOR KIT INCLS 4 5 6 10 11 12 13 14 30 37 NOTE 5 GROUP 3 729 BODY KIT THROTTLE INCLS 55 65 NOTE 6 GROUP 3 764 SENSOR KIT THROTTLE POSIT ON INCLS 55 58 NOTE 7 GROUP 3 766 CONTROL KIT IDLE SPEED INCLS 90 92 NOTE 8 GROUP 3 724 FUEL NUT ASSORT KIT INCLS 31 38 40 41 80 NOTE 9 GROUP 3 724 FASTENER ASSORT KIT INCLS 1 2 20 50 51 52 61 62 NOTE 10 GROUP 3 734 FUEL METER KIT INCLS 3 7 10 22 40 4 I I NOTE 11 GROUP 3 774 FILTER GASKET KIT INCLS 4 5 6 11 12 13 14 NOTE 12 GROUP 3 734 FUEL METER COVER KIT 1986 87 INCLS 3 4 5 6 7 Z sa L 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CADILLAC 62D j 11 92 I 3 19 I 3 000 GROUP
