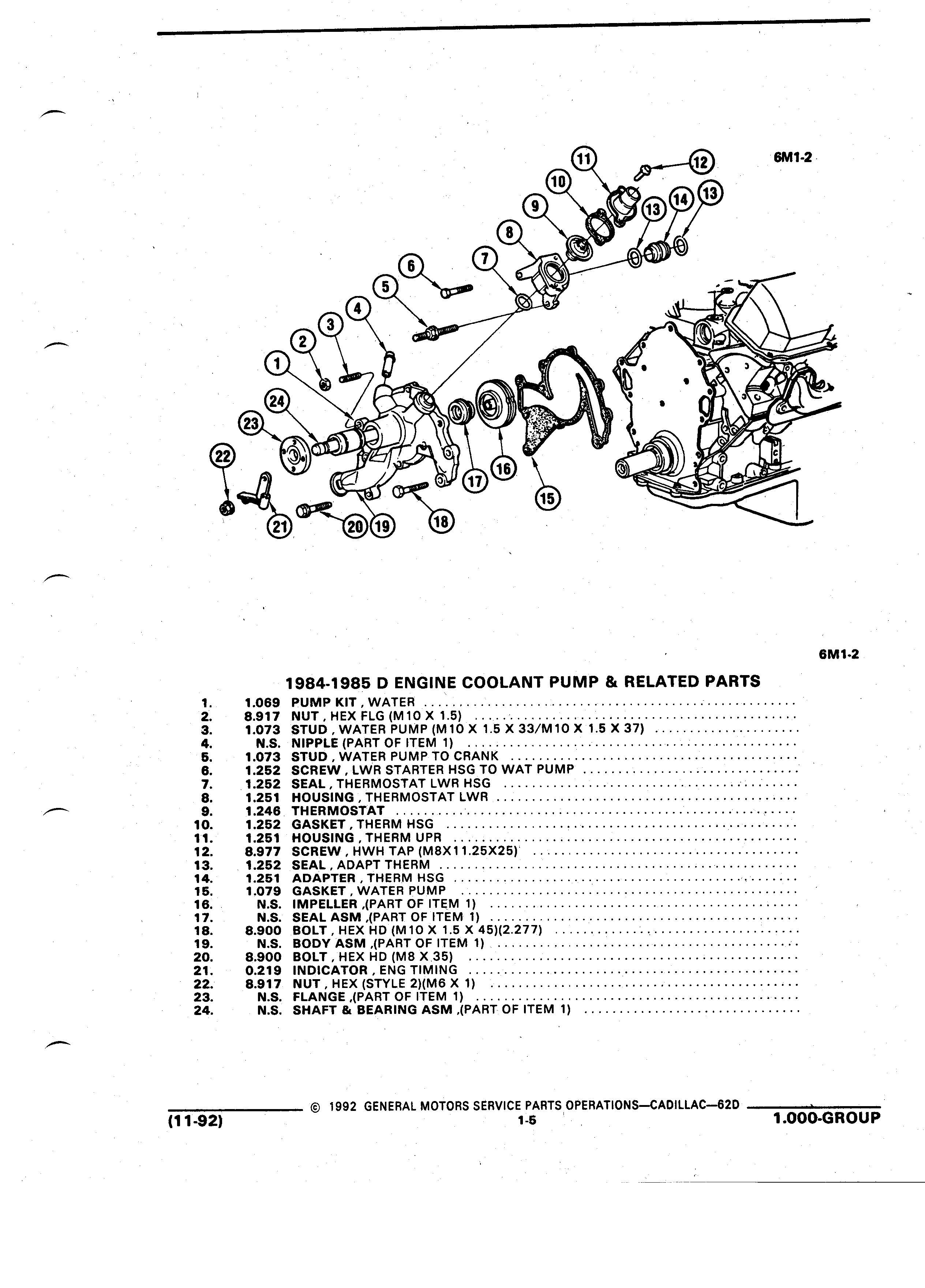

l mm I 0 x 4 TC pv k r n V A mm R A A I E R N EK r ix I Oq 7 G WFQ I A T 1 Y 2 kl 5 1 I ii R I Lk gy I kw A 1 W F4 1 01 L hr A 1 K Q E I 1 I 11 wm V 6M1 2 1984 1985 D ENGINE COOLANT PUMP RELATED PARTS 1 1 069 PUMP KIT WATER 2 8 917 NUT HEX FLG M10X 1 5 3 1 073 STUD WATER PUMP MIOX 1 5X33 M10X 1 5 X37 4 N S NIPPLE PART OF ITEM 1 5 1 073 STUD WATER PUMP TO CRANK 8 1 252 SCREW LWR STARTER HSG TO WAT PUMP 7 1 252 SEAL THERMOSTAT LWR HSG 8 1 251 HOUSING THERMOSTAT LWR r 9 1 246 THERMOSTAT 10 1 252 GASKET THERM HSG V 11 1 251 HOUSING THERM UPR 12 8 977 SCREW HWH TAP M8X11 25X25 13 1 252 SEAL ADAPT THERM 14 1 251 ADAPTER THERM HSG I 15 1 079 GASKET WATER PUMP 16 N S IMPELLER PART OF ITEM 1 17 N S SEAL ASM PART OF ITEM 1 18 8 900 BOLT HEX HD M10 X 1 5 X 45 2 277 19 N S BODY ASM PART OF ITEM 1 I 20 8 900 BOLT HEX HD M8 X 35 21 0 219 INDICATOR ENG TIMING A 22 8 917 NUT HEX STYLE 2 M6 X 1 23 N S FLANGE PART OF ITEM 1 24 N S SHAFT BEARING ASM PART OF ITEM 1 L 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS CAD LLAC 62D L 1 1 92 1 5 1 000 GROUP
