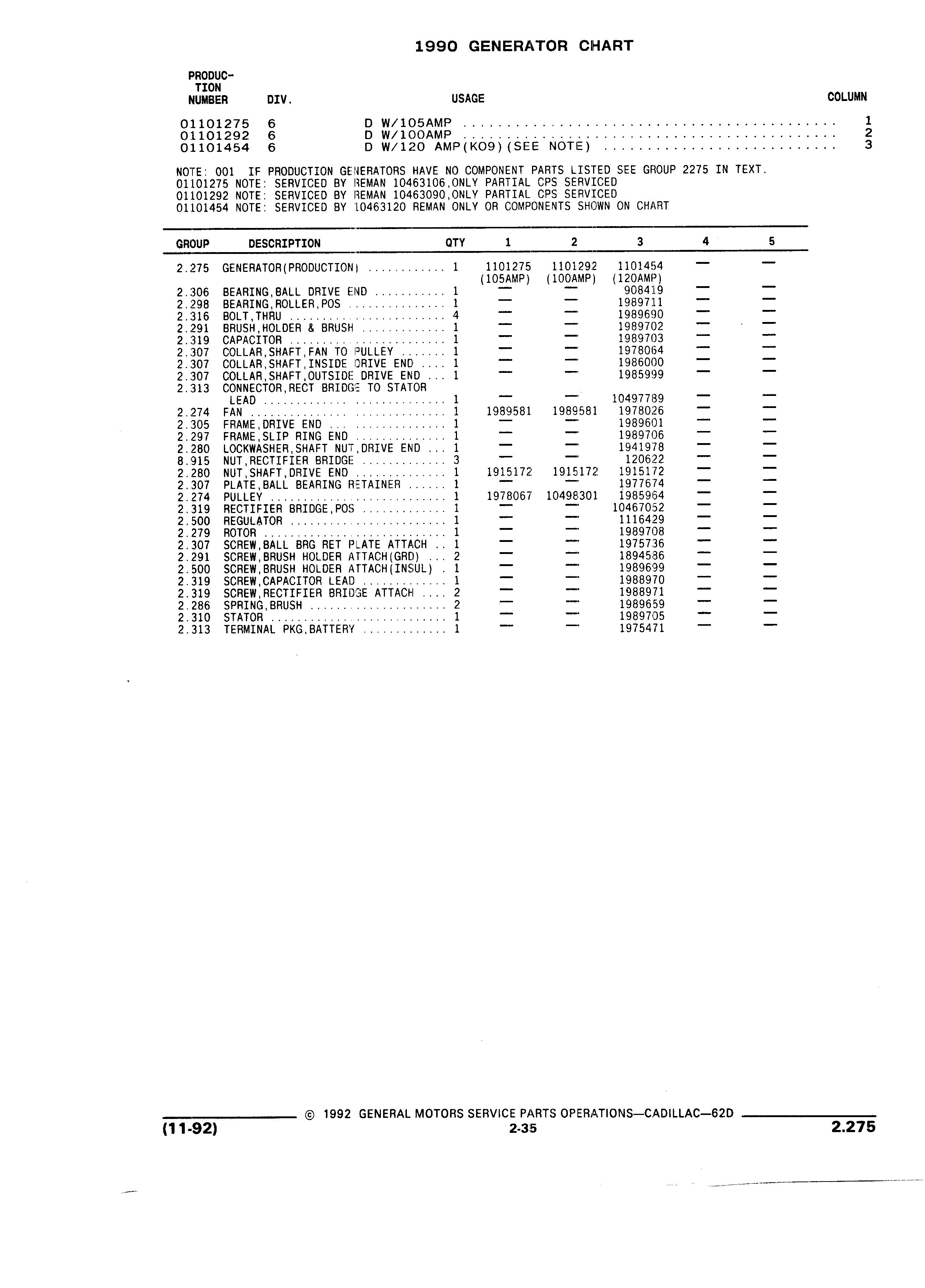

1990 GENERATOR CIHART PRODUC TION NUMBER DIV USAGE COLUMN 01101275 6 D W 105AMP 1 01101292 6 D W 100AMP 2 01101454 6 D W 120 AMP KO9 SEE NOTIE 3 NOTE 001 IF PRODUCTION GEENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01101275 NOTE SERVICED BY REMAN 10463106 0NLY PARTIAL CPS SERVICED 01101292 NOTE SERVICED BY ITEMAN 10463090 0NLY PARTIAL CPS SERVICED 01101454 NOTE SERVICED BY 10463120 REMAN ONLY OR COMPONENTS SHOWN ON CHART GROUP DESCRIPTION OTY 1 2 3 4 5 2 1275 GENERATOR PRODUCTIONT 1 1101275 1101292 1101454 105AMP IOOAMP 120AMP 2 306 BEARING BALL DRIVE END 1 908419 2 298 BEARING ROLLER POS 4 4 1 1989711 2 316 BOLT THRU 4 1989690 2 291 BRUSH HOLDER 8 BRUSH 4 1 1989702 2 319 CAPACITOR 1 1989703 2 307 COLLAR SHAFT FAN T0 PULLEY 1 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 2 307 COLLAR SHAFT OUTSIOE DRIVE END 1 1985999 2 313 CONNECTOR RECT BRIDGE T0 STATOR LEAD 1 10497789 2 274 FAN 1 1989581 1989581 1978026 2 305 FRAME DRIVE END 1 1989601 2 297 FRAME SLIP RING END 1 1989706 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1978067 10498301 1985964 2 319 RECTIFIER BRIDGE POS 1 104670152 2 500 REGULATOR 1 1116429 2 279 ROTOR 1 1989708 2 307 SCREW BALL BRG RET PLATE ATTACH 1 1975736 2 291 SCREW BRUSH HOLDER ATTACH GRD 2 1894586 2 500 SCREW BRUSH HOLDER AT TACH IN5UL 1 1989699 2 319 SCREW CAPACITOR LEAD 1 1988970 2 319 SCREW RECTIFIER BRIDGE ATTACI I 2 1988971 2 286 SPRING BRUSH 2 1989659 2 310 STATOR 1 1989705 2 313 TERMINAL PKG BATTER 1 1975471 1992 GENERAL MOTORS SERVICE PARTS OPERATIONS CADILLAC 62D 1 1 92 2 315 2 275
