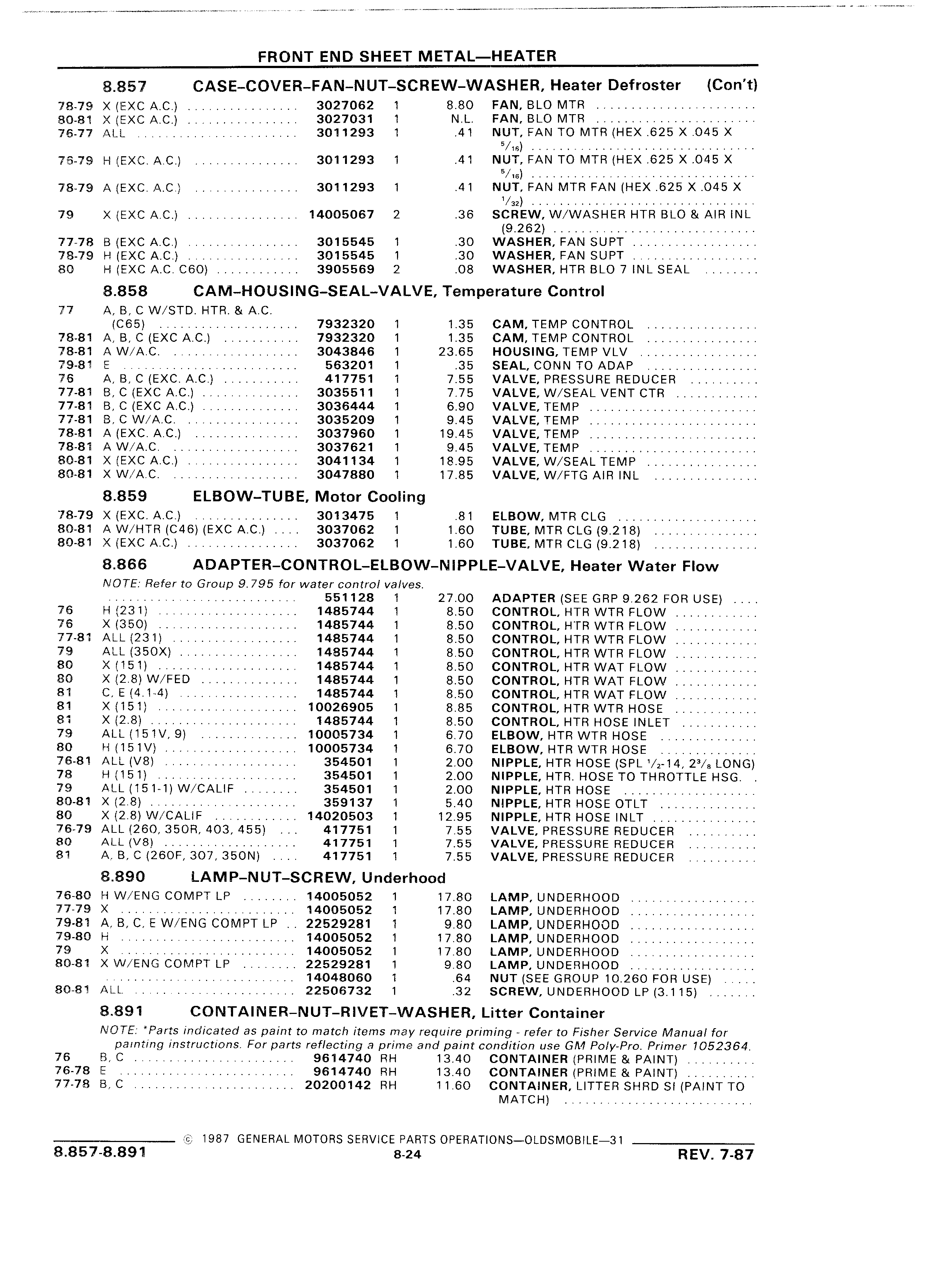

FRONT END SHEET METAL HEATER 8 857 CASE COVER FAN NUT SCREW WASHER Heater Defroster Con t 78 79 X EXC A C 3027062 1 8 80 FAN BLO MTR 80 81 X EXC A C 3027031 1 N L FAN BLO MTR 76 77 ALL 301 1293 1 41 NUT FAN TO MTR HEX 625 X 045 X 5 75 79 H EXC A C 3011293 1 41 NUT FAN TO MTR HEX 625 X 045 X 5 78 79 A EXC A C 3011293 1 41 NUT FAN MTR FAN HEX 625 X 045 X 79 X EXC A C 14005067 2 36 SCREW W WASHER HTR BLO AIR INL 9 262 77 78 B EXC A C 3015545 1 30 WASHER FAN SUPT 78 79 I I EXC A C 3015545 1 30 WASHER FAN SUPT 80 H EXC A C C60 3905569 2 08 WASHER HTR BLO 7 INL SEAL 8 858 CAM HOUSING SEAL VALVE Temperature Control 77 A B C W STD HTR A C C65 7932320 1 1 35 CAM TEMP CONTROL 78 81 A B C EXC A C 7932320 1 1 35 CAM TEMP CONTROL 78 81 A W A C 3043846 1 23 65 HOUSING TEMP VLV 79 81 E 563201 1 35 SEAL CONN TO ADAP 76 A B C EXC A C 417751 1 7 55 VALVE PRESSURE REDUCER 77 81 B C EXC A C 3035511 1 7 75 VALVE W SEAL VENT CTR 77 81 B C EXC A C 3036444 1 6 90 VALVE TEMP 77 81 B C W A C 3035209 1 9 45 VALVE TEMP 78 81 A EXC A C 3037960 1 19 45 VALVE TEMP 78 81 A W A C 3037621 1 9 45 VALVE TEMP 80 81 X EXC A C 3041134 1 18 95 VALVE W SEAL TEMP 80 81 X W A C 3047880 1 17 85 VALVE W FTG AIR INL 8 859 ELBOW TUBE Motor Cooling 78 79 X EXC A C 3013475 1 81 ELBOW MTR CLG 80 81 A W HTR C46 EXC A C 3037062 1 1 60 TUBE MTR CLG 9 218 80 81 X EXC A C 3037062 1 1 60 TUBE MTR CLG 9 218 8 866 ADAPTER CONTROL ELBOW NIPPLE VALVE Heater Water Flow NOTE Refer to Group 9 795 for water control valves 551128 1 27 00 ADAPTER SEE GRP 9 262 FOR USE 76 H 231 1485744 1 8 50 CONTROL HTR WTR FLOW 76 X 350 1485744 1 8 50 CONTROL HTR WTR FLOW 77 81 ALL 231 1485744 1 8 50 CONTROL HTR WTR FLOW 79 ALL 350X 1485744 1 8 50 CONTROL HTR WTR FLOW 80 X 151 1485744 1 8 50 CONTROL HTR WAT FLOW 80 X 2 8 W FED 1485744 1 8 50 CONTROL HTR WAT FLOW 81 C E 4 1 4 1485744 1 8 50 CONTROL HTR WAT FLOW 81 X 151 10026905 1 8 85 CONTROL HTR WTR HOSE 81 X 2 8 1485744 1 8 50 CONTROL HTR HOSE INLET 79 ALL 151V 9 10005734 1 6 70 ELBOW HTR WTR HOSE 80 H 151V 10005734 1 6 70 ELBOW HTR WTR HOSE 76 81 ALL V8 354501 1 2 00 NIPPLE HTR HOSE SPL 2 14 2 8 LONG 78 H 151 354501 1 2 00 NIPPLE HTR HOSE TO THROTTLE HSG 79 ALL 151 1 W CALIF 354501 1 2 00 NIPPLE HTR HOSE 80 81 X 2 8 359137 1 5 40 NIPPLE HTR HOSE OTLT 80 X 2 8 V CALIF 14020503 1 12 95 NIPPLE HTR HOSE INLT 76 79 ALL 260 35OR 403 455 417751 1 7 55 VALVE PRESSURE REDUCER 80 ALL V8 417751 1 7 55 VALVE PRESSURE REDUCER 81 A B C 26OF 307 35ON 417751 1 7 55 VALVE PRESSURE REDUCER 8 890 LAMP NUT SCREW Underhood 76 80 H W ENG COMPT LP 14005052 1 17 80 LAMP UNDERHOOD 77 79 X 14005052 1 17 80 LAMP UNDERHOOD 79 81 A B C E W ENG COMPT LP 22529281 1 9 80 LAMP UNDERHOOD 79 80 H 14005052 1 17 80 LAMP UNDERHOOD 79 X 14005052 1 17 80 LAMP UNDERHOOD 80 81 X V ENG COMPT LP 22529281 1 9 80 LAMP UNDERHOOD 14048060 1 64 NUT SEE GROUP 10 260 FOR USE 80 81 ALL 22506732 1 32 SCREW UNDERHOOD LP 3 115 8 891 CONTAINER NUT RIVET WASHER Litter Container NOTE Parts indicated as paint to match items may require priming refer to Fisher Service Manual for painting instructions For parts reflecting a prime and paint condition use GM Poly Pro Primer 7052364 76 B C 9614740 RH 13 40 CONTAINER PRIME PAINT 76 78 E 9614740 RH 13 40 CONTAINER PRIME PAINT 77 78 B C 20200142 RH 11 60 CONTAINER LITTER SHRD SI PAINT TO MATCH 1987 GENERAL MOTORS SERVICE PARTS 0PERATIONS 0LDSMOBILE 31 8 857 8 891 8 24 REV 7 87
