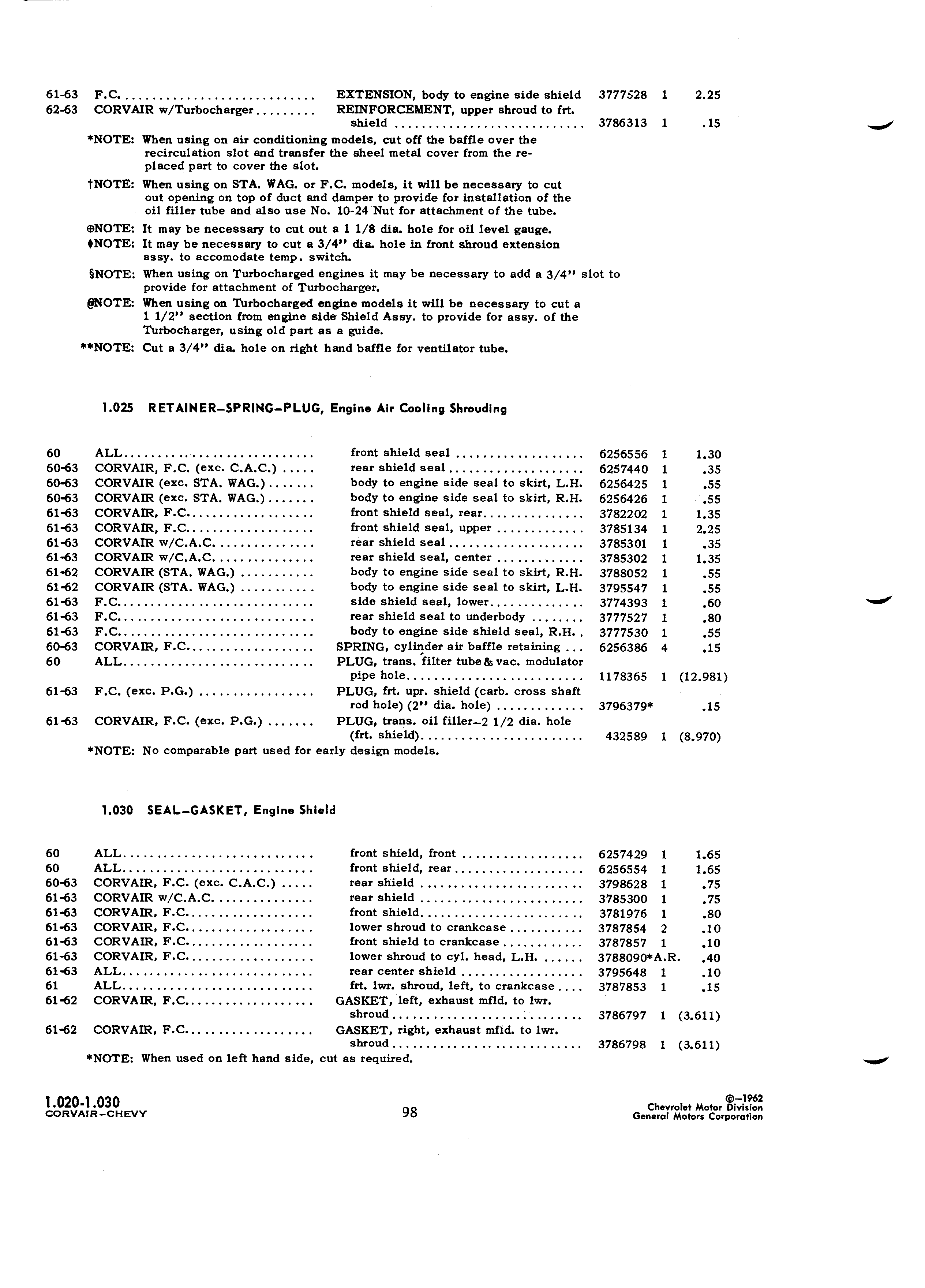

61 63 F C EXTENSION body to engine side shield 3777528 1 2 25 62 63 CORVAIR w Turhocharger REINFORCEMENT upper shroud to frt shield 3786313 1 15 4 NOTE When using on air conditioning models cut off the baffle over the recirculation slot and transfer the sheel metal cover from the re placed part to cover the slot TNOTE When using on STA WAG or F C models it will be necessary to cut out opening on top of duct and damper to provide for installation of the oil filler tube and also use No 10 24 Nut for attachment of the tube QNOTE It may be necessary to cut out a 1 1 8 dia hole for oil level gauge NOTE It may be necessary to cut a 3 4 dia hole in front shroud extension assy to accomodate temp switch NOTE When using on Turbocharged engines it may be necessary to add a 3 4 slot to provide for attachment of Turbocharger QNOTE When using on Turbocharged engine models it will be necessary to cut a 1 1 2 section from engine side Shield Assy to provide for assy of the Turbocharger using old part as a guide NOTE Cut a 3 4 dia hole on right hand baffle for ventilator tube 1 025 RETAINER SPRING PLUG Engine Mr Cooling Shroudlng 60 ALL front shield seal 5255555 1 1 30 60 63 CORVAIR F C exc C A C rear shield seal 6257440 1 35 60 63 CORVAIR exc STA WAG body to engine side seal to skirt L H 6256425 1 55 60 63 CORVAIR exc STA WAG body to engine side seal to skirt R H 6256426 1 55 61 63 CORVAIR F C front shield seal rear 3782202 1 1 35 61 63 CORVAIR F C front shield seal upper 3785134 1 2 25 61 63 CORVAIR w C A C rear shield seal 3735301 1 35 61 63 CORVAIR W C A C rear shield seal center 3785302 1 1 35 61 62 CORVAIR STA WAG body to engine side seal to skirt R 1 3788052 1 55 61 62 CORVAIR STA WAG body to engine side seal to skirt L H 3795547 1 55 61 63 F C side shield seal lower 3774393 1 60 61 63 F C rear shield seal to underbody 3777527 1 80 61 63 F C body to engine side shield seal R H 3777530 1 55 60 63 CORVAIR F C SPRING cylinder air baffle retaining 6256386 4 15 60 ALL PLUG trans filter tube vac modulator pipe hole 1178365 1 12 981 61 63 F C exc P G PLUG frt upr shield carb cross shaft rod hole 2 dia hole 3796379 15 61 63 CORVAIR F C exc P G PLUG trans oil filler 2 1 2 dia hole frt shield 432589 l 8 970 NOTE No comparable part used for early design models 1 030 SEAL GASKET Engine Shleld 60 ALL front shield front 6257429 1 1 65 60 ALL front shield rear 6256554 1 1 65 60 63 CORVAIR F C exc C A C rear shield 3798628 1 75 61 63 CORVAIR w C A C rear shield 3785300 1 75 61 63 CORVAIR F C front shield 3781976 1 80 61 63 CORVAIR F C lower shroud to crankcase 3787854 2 10 61 63 CORVAIR F C front shield to crankcase 3787857 1 10 61 63 CORVAIR F C lower shroud to cyl head L l 1 3788090 A R 40 61 63 ALL rear center shield 3795648 1 10 61 ALL fri lwr shroud left to crankcase 3787853 l 15 61 62 CORVAIR F C GASKET left exhaust mfld to lwr shroud 3786797 1 3 61 1 61 62 CORVAIR F C GASKET right exhaust mfld to lwr shroud 3786798 1 3 611 NOTE When used on left hand side cut as required 4 1962 Lz939 9 Y 98 w a
