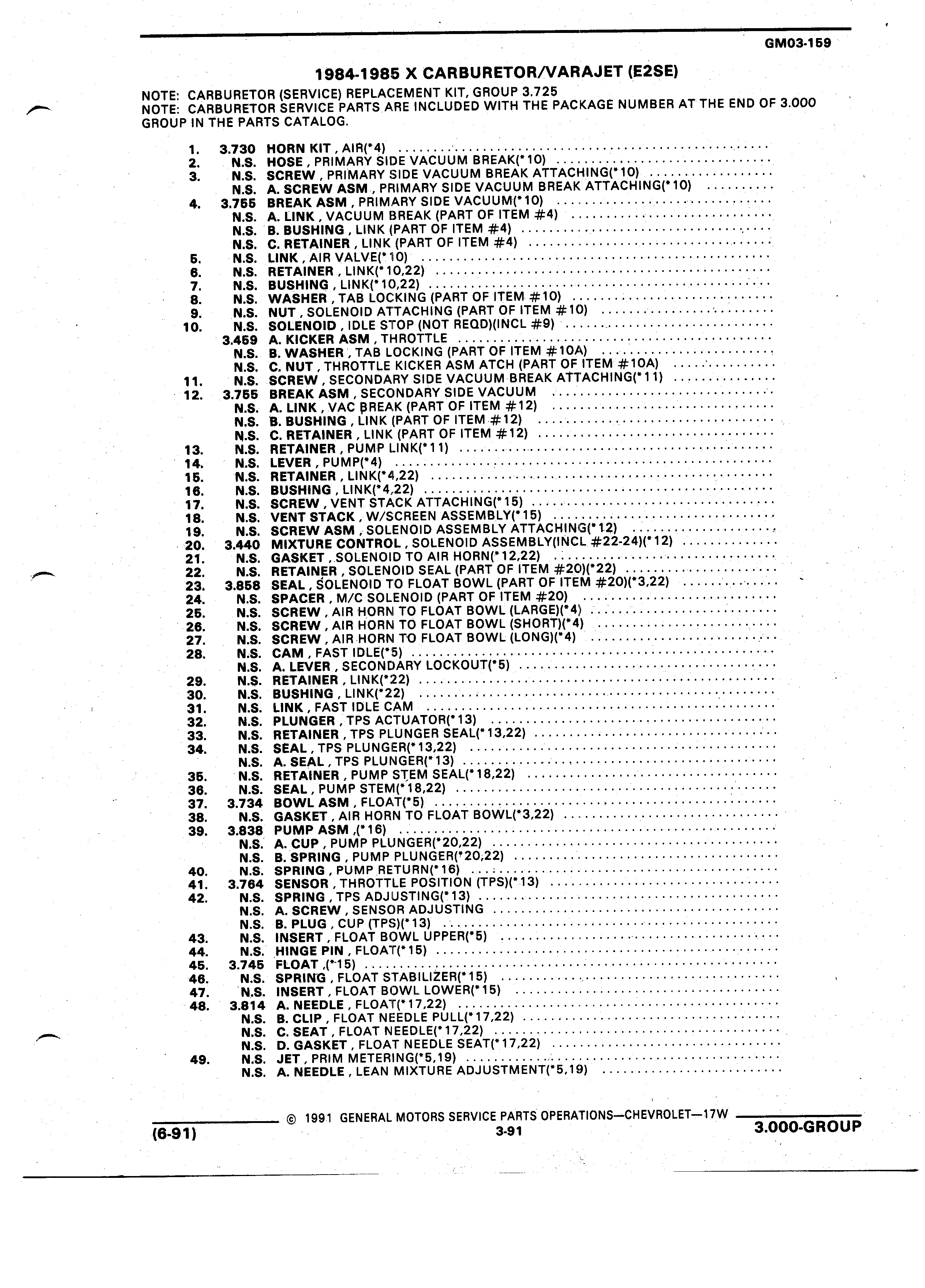

GM03 159 I 1984 1 985 X CARBURETOR VARAJET E2SE NOTE CARBURETOR SERVICE REPLACEMENT KIT GROUP 3 725 f NOTE CARBURETOR SERVICE PARTS A RE INCLUDED WITH THE PACKAGE NUMBER AT THE END OF 3 000 I GROUP IN THE PARTS CATALOG 1 3 730 HORN KIT AIR 4 2 N S HOSE PRIMARY SIDE VACUUM BREAK 10 I 3 N S SCREW PRIMARY SIDE VACUUM BREAK ATTACHING 10 I N S A SCREW ASM PRIMARY SIDE VACUUM BREAK ATTACHING 10 4 3 755 BREAK ASM PRIMARY SIDE VACUUM 10 I N S A LINK VACUUM BREAK PART OF ITEM 4 N S B BUSHING LINK PART OF ITEM 4 A N S C RETAINER LINK PART OF ITEM 4 5 N S LINK AIR VALVE 1I0 6 N S RETAINER LINK 10 22 7 N S BUSHING LINK 10 22 8 N S WASHER TAB LOCKING PART OF ITEM 10 9 N S NUT SOLENOID AT TACHING PART OF ITEM 10 L I 10 N S SOLENOID IDLE STOP NOT REOD NCL 9 A 3 459 A KICKER ASM THROTTLE N S B WASHER TAB LOCKING PART OF ITEM 10A N S C NUT THROTTLE KICKER ASM ATCH PART OF ITEM 10A 11 N S SCREW SECONDARY SIDE VACUUMIBREAK AT I ACHING 1 1 12 3 755 BREAK ASM SECONDARY SIDE VACUUM N S A LINK VAC BREAK PART OF ITEM 12 1 N S B BUSHING LINK PART OF ITEM 12 N S C RETAINER LINK PART OF ITEM 12 I I 13 N S RETAINER PUMP I NK 11 I I 14 N S LEVER PUMP 4 15 N S RETAINER LINK 4 22 16 N S BUSHING LINK 4 22 I A 17 N S SCREW VENT STACK ATTACHING 15 18 N S VENT STACK W SCREEN ASSEMBLY 15 19 N S SCREW ASM SOLENOID ASSEMBLY ATTACHING 1 2 Q 20 3 440 MIXTURE CONTROL SOLENOID ASSEMBLY INCL 22 24 12 21I N S GASKET SOLENO D TO AIR HORN 12 22 l I I 22 N S RETAINER SOLENOID SEAL PART OF ITEM 20 22 23 3 858 SEAL SOLENOID T O FLOAT BOWL PART OF ITEM 20 3 22 24 N S SPACER M C SOLENOID PART OF ITEM 20 25 N S SCREW AIR H ORN T0 FLOAT BOWL LARGE 4 26 N S SCREW AIR HORN TO FLOAT BOWL SHORT 4 I 27 N S SCREW AIRIHORN T0 FLOAT BOWL LONG 4 28 N S CAM FAST IDLE 15 N S A LEVER SECONDARY LOCKOUT 5 29 N S RETAINER LINK Z22 30 N S BUSHING L NK 22 31 N S LINK FAST IDLE CAM I 32 N S PLUNGER TPS ACTUATOR 13 33 N S RETAINER TPS PL UNGER SEAL 13 22 34 N S SEAL TPS PLUNGER 13 22 I N S A SEAL TPS PLUNGER 13 35 N S RETAINER PUMP STEM SEAL 18 22 I 36 N S SEAL PUMP STEM 18 22 II 37 3 734 BOWL ASM FLOAT 5 L I 38 N S GASKET AIR HORN TO FLOAT BOWL 3 22 I 39 3 838 PUMP ASM 16 N S A CUP PUMP PLUN GER 20 22 N S B SPRING PUMP PLUNGER 20 22 I 40 N S SPRING PUMP RElTURN 16 41 3 764 SENSOR THROTTLE POSITION TPS 13 42 N S SPRING TPS ADJIUSTING 13 N S A SCREW SENSOR ADJUSTING N S B PLUG CUP TPS 13 43 N S INSERT FLOAT BOWL UPPER 5 44 N S HINGE PIN FLOAT 15 45 3 745 FLOAT 15 46 N S SPRING FLOAT STAB L ZER 15 A V 47 IN S INSERT FLOAT BOWL LOWER 15 48 3 814 A NEEDLE FLOAT 17 22 N S B CLIP FLOAT NEEDLE PULL 17 22 f N S C SEAT FLOAT NEEDLE 17 22 V I N S D GASKET FLOAT NEEDLE SEAT 17 22 49 N S JET PRIM METERING 5 19 N S A NEEDLE LEAN MIXTURE ADJUSTMENT 5 19 i 1991 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 17W 1 t Y 6 91 I 3 91 3 000 GROUP I
