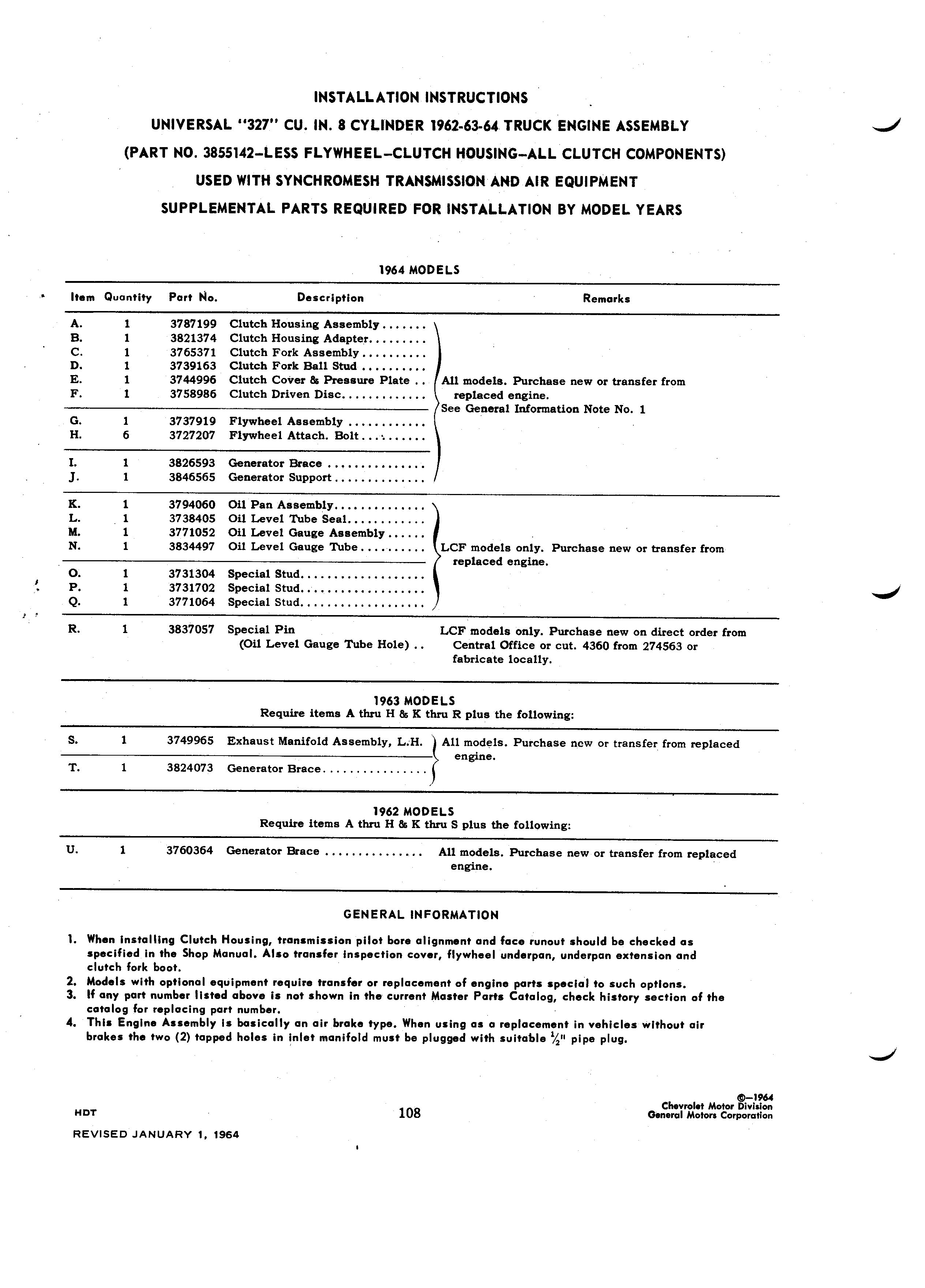

INSTALLATION INSTRUCTIONS l U UNIVERSAL 327 CU IN 8 CYLINDER I962 63 64 TRUCK ENGINE ASSEMBLY aj PART NO 3855I42 LESS FLYWHEEL CLUTCH HOUSING ALL CLUTCH COMPONENTS USED WITH SYNCHROMESH TRANSMISSION AND AIR EQUIPMENT SUPPLEMENTAL PARTS REQUIRED FOR INSTALLATION BY MODEL YEARS l964 MODELS Item Quantity Part No Description Remarks A l 3787199 Clutch Housing Assembly B 1 3821374 Clutch Housing Adapter 4 C 1 3765371 Clutch Fork Assembly D 1 3739163 Clutch Fork Ball Stud E 1 3744996 Clutch Cover Pressure Plate All models Purchase new or transfer from F 1 3758986 Clutch Driven Disc replaced engine See General Infomation Note No 1 G 1 3737919 Flywheel A sembly H 6 3727207 Flywheel Attach Bolt I 1 3826593 Generator Brace I J 1 3846565 Generator Support K 1 3794060 Oil Pan Assembly L 1 3738405 Oil Level Tube Seal M l 3771052 Oil Level Gauge Assembly I N 1 3834497 Oil Level Gauge hxbe LCF models only Purchase new or transfer from replaced engine O 1 3731304 Special Stud P 1 3731702 Special Stud Q 1 3771064 Special Stud l R 1 3837057 Special Pin LCF models only Purchase new on direct order from Oil Level Gauge Tube Hole Central Office or cut 4360 from 274563 or fabricate locally 1963 MODELS Require items A thru H Gs K thru R plus the following S 1 3749965 Exhaust Manifold Assembly L H All models Purchase new or transfer from replaced engine T 1 3824073 Generator Brace I962 MODELS Require item A thru l I Gr K thru S plus the following U 1 3760364 Generator Brace All models Purchase new or transfer from replaced engine A n GENERAL INFORMATION I When installing Clutch Housing transmission pilot bore alignment and face runout should be checked as specified In the Shop Manual Also transfer inspection cover flywheel underpan underpan extension and clutch fork boot 2 Models with optional equipment require transfer or replacement of engine parts special to such optlons 3 If any part number listed above is not shown in the current Master Parts Catalog check history section of the I 1 catalog for replacing part number 4 This Engine Assembly is basically an air brake type When using as a replacement in vehicles without air brakes the two 2 tapped holes in inlet manifold must be plugged with suitable Z pipe plug y s I I964 Chevrolet Motor Division H DT 108 General Motors Corporation REVISED JANUARY 1 1964 I
