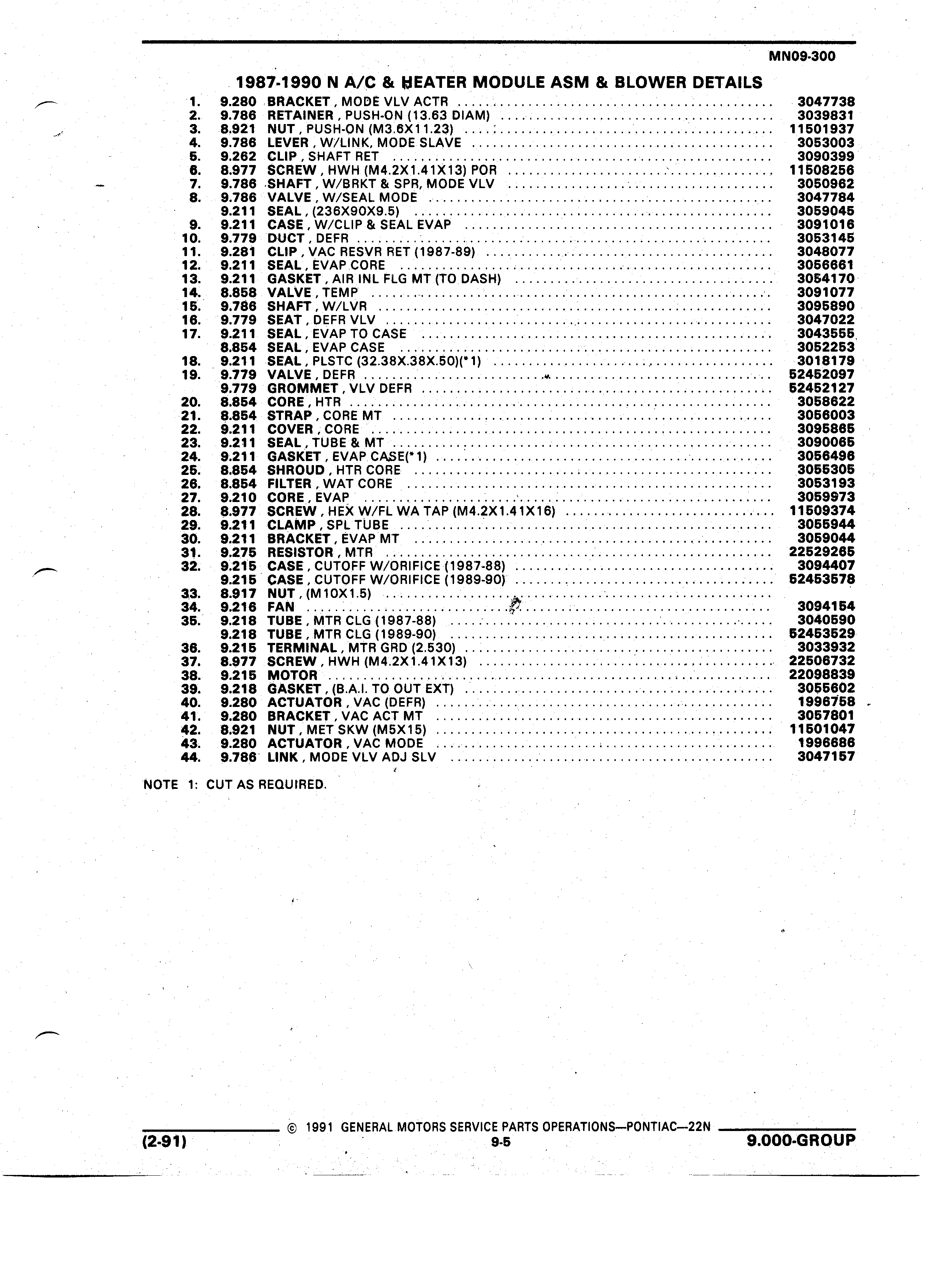

I I MN09 300 1987 1990 N A C HEATER MODULE ASM BLOWER DETAILS 1 9 280 BRACKET MODE VLV ACTR I 3047738 2 9 786 RETAINER PUSH ON 13 63 DIAM A 3039831 I 3 8 921 NUT PUSH ON M3 6X11 23 1 11501937 4 9 786 LEVER W LINK MODE SLAVE 3053003 5 9 262 CLIP SHAFT RET 3090399 6 8 977 SCREW HWH M4 2X1 41X13 POR 11508256 7 9 786 SHAFT W BRKT SPR MODE VLV 3050962 8 9 786 VALVE W SEAL MODE 3047784 9 211 SEAL 236X90X9 5 3059045 9 9 211 CASE W CLIP SEAL EVAP 3091016 10 9 779 D UCT DEFR 3053145 11 9 281 CLIP VAC RESVR RET 1987 89 3048077 12 9 211 SEAL EVAPCORE I 3056661 13 9 211 GASKET AIR INL FLG MT TO DASH 3054170 14 A 8 858 VALVE TEMP I I 3091077 15 9 786 SHAFT W LVR 3095890 16 9 779 SEAT DEFR VLV 3047022 17 9 211 SEAL EVAP TO CASE 3043555 8 854 SEAL EVAP CASE 3 052253 18 A 9 211 SEAL PLSTC 32 38X 38X 50 1 3018179 19 9 779 VALVE DEFR I 52452097 I 9 779 GROMMET VLV DEFR 52452127 20 8 854 CORE HTR 3 058622 21 8 854 STRAP CORE MT I 3 056003 22 9 211 COVER CORE 3095865 23 9 211 SEAL TUBE MT I 3 090065 24 9 211 GASKET EVAP CA SE 1 3056496 I 25 8 854 SHROUD HTR CORE 3055305 26 8 854 FILTER WAT CORE 3053193 27 9 210 CORE EVAP L I Q 3059973 I 28 8 977 SCREW HEX W FL WA TAP M4 2X1 41X16 11509374 I 29 9 211 CLAMP SPI TUBE 3055944 I 30 9 211 BRACKET EVAP MT 3059044 31 9 275 RESISTOR MTR 22529265 32 9 215 A CASE CUTOFF W ORIFICE 1987 88 3094407 9 215 CASE CUTOFF W ORIFICE 1989 90 52453578 33 8 917 NUT M 10X1 5 I 34 9 216 FAN Q 1 3094154 35 9 218 TUBE MTR CLG 1987 88 I 3040590 9 218 TUBE MTR CLG 1989 90 52453529 36 9 215 TERMINAL MTR GRD 2 530 Q A 3033932 37 8 977 SCREW HWH M4 2X1 41X13 22506732 38 9 215 MOTOR A 22098839 I 39 9 218 GASKET B A I TO OUT EXT 3055602 40 9 280 ACTUATOR VAC DEFR 1996758 41 9 280 BRACKET VAC ACT MT 3057801 42 8 921 NUT MET SKW M5X15 11501047 43 9 280 ACTUATOR VAC MODE I 1996686 44 9 786 LINK MODE VLV ADJ SLV I 3047157 NOTE 1 CUT AS REQUIRED A 1991 GENERAL MOTORS SERVICE PARTS OPERATIONS PONTIAC 22N T 2 9 1 s s A I 9 000 GROUP I
