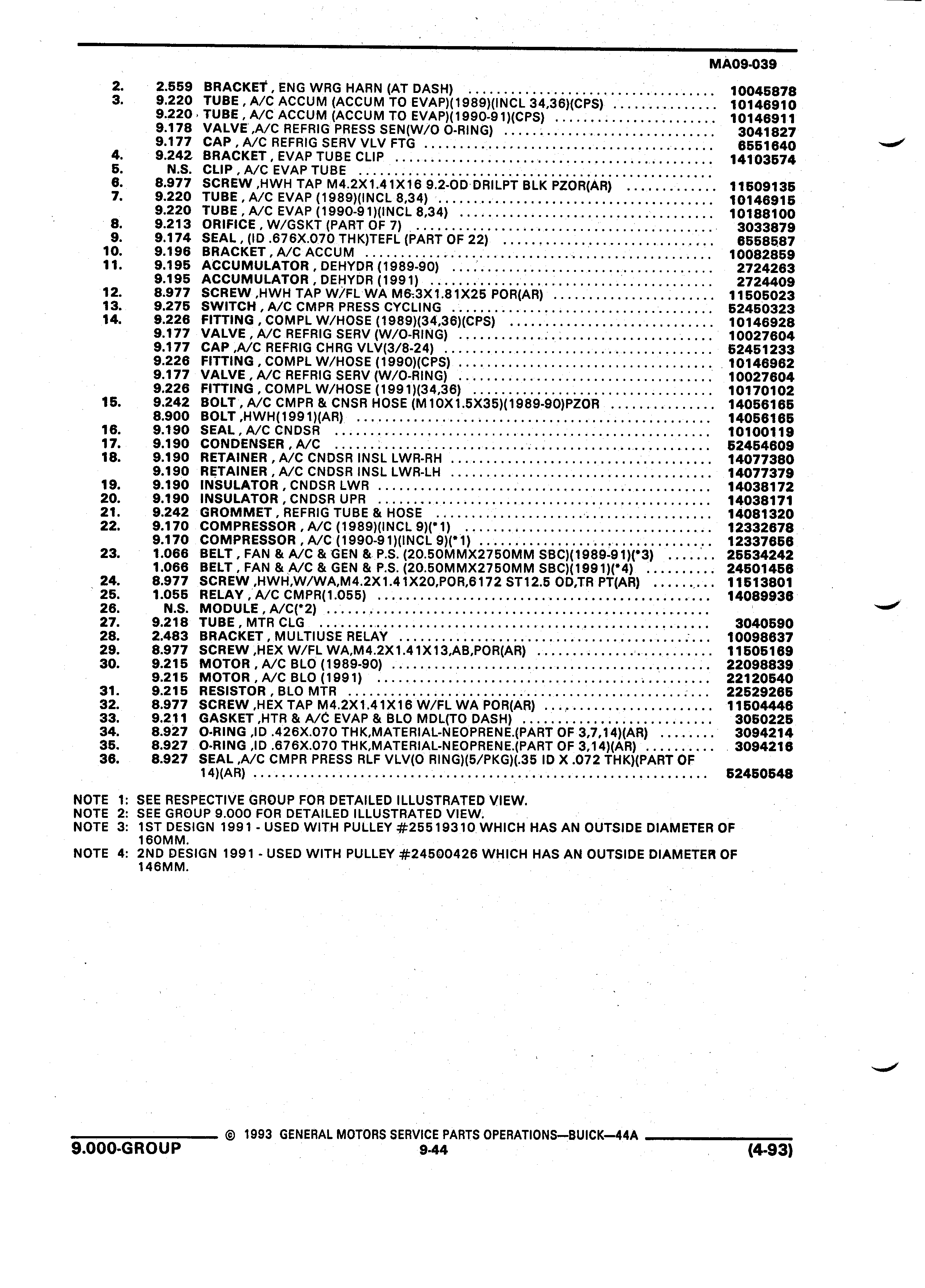

MA09 039 2 2 559 BRACKET ENG WRG HARN AT DASH A 10045878 3 9 220 TUBE A C ACCUM ACCUM TO EVAP 1989 INCL 34 36 CPS 10146910 9 220 TUBE A C ACCUM ACCUM TO EVAP 1990 91 CPS 1014691 1 9 178 VALVE A C REFRIG PRESS SEN W O O RING 3041827 9 177 CAP A C REFRIG SERV VLV FTG 6551640 i 4 9 242 BRACKET EVAP TUBE CLIP 14103574 5 N S CLIP A C EVAP TUBE 6 8 977 SCREW HWH TAP M4 2X1 41X16 9 2 OD DR LPT BLK PZOR AR 11509135 I 7 9 220 TUBE A C EVAP 1989 INCL 8 34 10146915 A 9 220 TUBE A C EVAP 1990 91 INCL 8 34 10188100 8 9 213 ORIFICE W GSKT PART OF 7 V I 3033879 9 9 174 SEAL ID 676X 0 70 THK TEFL PART OF 22 6558587 10 9 196 BRACKET A C ACCUM I 1 0082859 1 1 9 195 ACCUMULATOR DEHYDR 1989 90 2724263 9 195 ACCUMULATOR DEHYDR 1991 I 2724409 I 12 8 977 SCREW HWH TAP W FLWA M 3X1 81X25 POR AR 11505023 13 9 275 SWITCH A C CMPR PRESS CYCLING 52450323 14 9 226 FITTING COMPL W HOSE 1989 34 36 CPS 10146928 9 177 VALVE A C REFRIG SERV W O RING 10027604 9 177 CAP A C REFRIG CHRG VLV 3 8 24 52451233 9 226 FITTING COMPL W HOSE 1990 CPS 10146962 9 177 VALVE A C REFRIG SERV W O RING 10027604 9 226 FITTING COMPL W HOSE 1991 34 36 10170102 15 9 242 BOLT A C CMPR CNSR HOSE M10X1 5X35 1989 90 PZOR 14056165 8 900 BOLT HWH 1991 AR 14055165 16 9 190 SEAL A C CNDSR 10100119 17 9 190 CONDENSER A C I I 5 2454609 18 9 190 RETAINER A C CNDSR INSL LWR RH 14077380 9 190 RETAINER A C CNDSR INSL LWR LH 14077379 19 9 190 INSULATOR CNDSR LWR 14038172 20 9 190 INSULATOR CNDSR UPR A 14038171 21 9 242 GROMMET REFRIG TUBE HOSE Q I 14081320 22 9 170 COMPRESSOR A C 1989 INCL 9 1 V 12332678 9 170 COMPRESSOR A C 1990 91 INCL 9 1 I 12337656 23 1 066 BELT FAN A C GEN P S 20 50MMX275OMM S BC 1989 91 3 25534242 1 066 BELT FAN vA C GEN P S 20 50MMX275OMM SBC 1991 4 24501456 24 8 977 SCREW HWH W WA M4 2X1 41X20 POR 6172 ST12 5 OD TR PT AR 11513801 25 1 055 RELAY A C CMPR 1 055 14089936 26 N S MODULE A C 2 I 27 9 218 TUBE MTR CLG I 3040590 28 2 483 BRACKET MULTIUSE RELAY 10098637 29 8 977 SCREW HEX W FL WA M4 2X1 41X13 AB POR AR I 1 1505169 30 9 215 MOTOR A C BLO 1989 90 22098839 I 9 215 MOTOR A C BLO 1991 22120540 31 9 215 RESISTOR BLO MTR 22529265 32 8 977 SCREW HEX TAP M4 2X1 41X16 W FL WA POR AR 1 1504446 33 9 211 GASKET HTR A C EVAP BLO MDL TODASH 3050225 34 8 927 O RING ID 426X 070 THK MATERIAL NEOPRENE PART OF 3 7 14 AR 3094214 35 8 927 O RING D 676X 070 THK MATERIAL NEOPRENE PART OF 3 14 AR 3094216 36 8 927 SEAL A C CMPR PRESS RLF VLV O R NG 5 PKG 35 ID X 072 THK PART OF 14 AR 52450548 NOTE 1 SEE RESPECTIVE GROUP FOR DETAILED ILLUSTRATED VIEW NOTE 2 SEE GROUP 9 000 FOR DETAILED ILLUSTRATED VIEW NOTE 3 1ST DESIGN 1991 USED WITH PULLEY 25519310 WHICH HAS AN OUTSIDE DIAMETER OF I 160MM NOTE 4 2ND DESIGN 1991 USED WITH PULLEY 24500426 WHICH HAS AN OUTSIDE DIAMETER OF I 146MM I s 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS BU CK 44A 9 000 GROUP 9 44 I 4 93
