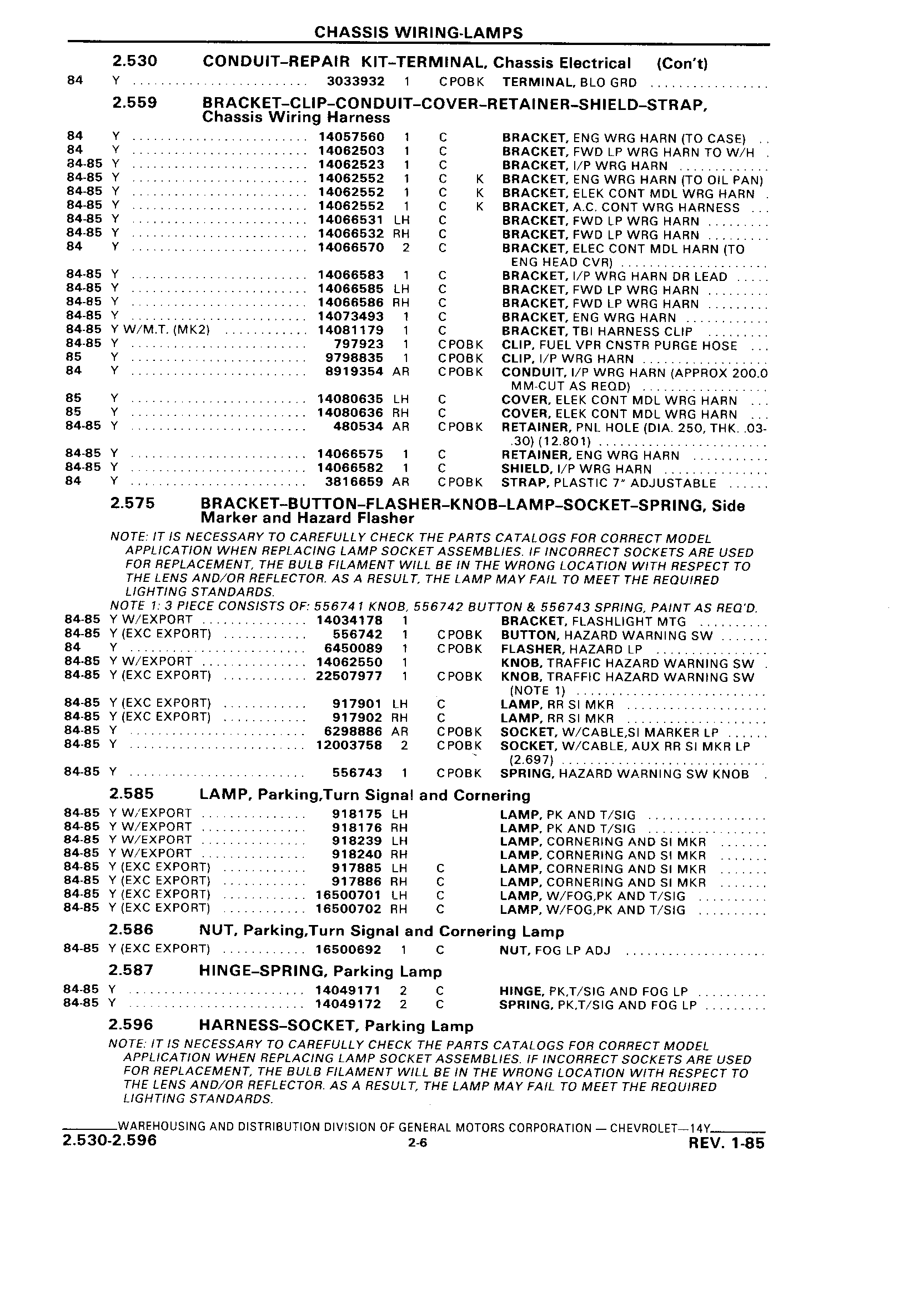

CHASSIS WIRlNG LAMPS 2 530 CONDUIT REPAIR KIT TERMINAL Chassis Electrical C0n t 84 Y 3033932 1 CPOBK TERMINAL BLO GRD l 2 559 BRACKET CL P CONDUIT COVER RETAlNER SHlELD STRAP Chassis Wiring Harness 84 Y 14057560 1 C BRACKET ENG WRG HARN TO CASE 84 Y 14062503 1 C BRACKET FWD LP WRG HARN TO W H 84 85 Y 14062523 1 C BRACKET I P WRG HARN 84 85 Y 14062552 1 C K BRACKET ENG WRG HARN TO OIL PAN 84 85 Y l 14062552 1 C K BRACKET ELEK CONT MDL WRG HARN 84 85 Y 14062552 1 C K BRACKET A C CONT WRG HARNESS 84 85 Y 14066531 LH C BRACKET FWD LP WRG HARN 84 85 Y 14066532 RH C BRACKET FWD LP WRG HARN 84 Y 14066570 2 C BRACKET ELEC CONT MDL HARN TO ENG HEAD CVR 84 85 Y 14066583 1 C BRACKET I P WRG HARN DR LEAD 84 85 Y 14066585 LH C BRACKET FWD LP WRG HARN 84 85 Y 14066586 RH C BRACKET FWD LP WRG HARN 84 85 Y 14073493 1 C BRACKET ENG WRG HARN 84 85 Y W M T MK2 14081179 1 C BRACKET TBI HARNESS CLIP 84 85 Y 797923 1 CPOBK CLIP FUEL VPR CNSTR PURGE HOSE 85 Y l 9798835 1 CPOBK CLIP I P WRG HARN B4 Y 8919354 AR CPOBK CONDUIT I P WRG HARN APPROX 200 0 MM CUT AS REOD l 85 Y 14080635 LH C COVER ELEK CONT MDL WRG HARN 85 Y 14080636 RH C COVER ELEK CONT MDL WRG HARN 84 85 Y 480534 AR CPOBK RETAINER PNL HOLE DIA 250 THK 03 30 12 801 84 85 Y 14066575 1 C RETAINER ENG WRG HARN 84 85 Y 14066582 1 C SHIELD I P WRG HARN 84 Y 3816659 AR CPOBK STRAP PLASTIC 7 ADJUSTABLE 2 575 BRACKET BUTTON FLASHER KNOB LAMP SOCKET SPRING Side Marker and Hazard Flasher NOTE IT IS NECESSARY TO CAREFULLY CHECK THE PARTS CATALOGS FOR CORRECT MODEL APPLICATION WHEN REPLACING LAMP SOCKET ASSEMBLIES IF INCORRECT SOCKETS ARE USED FOR REPLACEMENT THE BULB FILAMENT WILL BE IN THE WRONG LOCATION WITH RESPECT TO THE LENS AND OR REFLECTOR AS A RESULT THE LAMP MAY FAIL TO MEET THE REOUIRED LIGHT NG STANDARDS NOTE 1 3 PIECE CONSISTS OF 556741 KNOB 556742 BUTTON 556743 SPRING PAINTAS REO D 84 85 Y W EXPORT 14034178 1 BRACKET FLASHLIGHT MTG 84 85 Y EXC EXPORT 556742 1 CPOBK BUTTON HAZARD WARNING SW 84 Y 6450089 1 CPOBK FLASHER HAZARD LP 84 85 Y W EXPORT 14062550 1 KNOB TRAFFIC HAZARD WARNING SW 84 85 Y EXC EXPORT 22507977 1 CPOBK KNOB TRAFFIC HAZARD WARNING SW NOTE 1 84 85 Y EXC EXPORT 917901 LH C LAMP RR SI MKR 84 85 Y EXC EXPORT 917902 RH C LAMP RR SI MKR 84 85 Y 6298886 AR CPOBK SOCKET W CABLE S MARKER LP 84 85 Y 12003758 2 CPOBK SOCKET W CABLE AUX RR SI MKR LP 2 697 84 85 Y 556743 1 CPOBK SPRING HAZARD WARNING SW KNOB 2 585 LAMP Parking Turn Signal and Cornering 84 85 Y W EXPORT 918175 LH LAMP PK AND T SIG 84 85 Y W EXPORT 918176 RH LAMP PK AND T SIG 84 85 Y W EXPORT 918239 LH LAMP CORNERING AND Sl MKR 84 85 Y W EXPORT 918240 RH LAMP CORNERING AND SI MKR 84 85 Y EXC EXPORT 917885 LH C LAMP CORNERING AND SI MKR 84 85 Y EXC EXPORT 917886 RH C LAMP CORNERING AND SI MKR 84 85 Y EXC EXPORT 16500701 LH C LAMP W FOG PK AND T SIG 84 85 Y EXC EXPORT 16500702 RH C LAMP W FOG PK AND T SIG 2 586 NUT Parking Turn Signal and Ccrnering Lamp 84 85 Y EXC EXPORT 16500692 1 C NUT FOG LP ADJ 2 587 HINGE SPRING Parking Lamp 84 85 Y 14049171 2 C HINGE FK T SIG AND FOG LP 84 85 Y 14049172 2 C SPRING PK T SIG AND FOG LP 2 596 HARNESS SOCKET Parking Lamp NOTE IT IS NECESSARY TO CAREFULLY CHECK THE PARTS CATALOGS FOR CORRECT MODEL APPLICATION WHEN REPLACING LAMP SOCKET ASSEMBLIES IF INCORRECT SOCKETS ARE USED FOR REPLACEMENT THE BULB FILAMENT WILL BE IN THE WRONG LOCATION WITH RESPECT TO THE LENS AND OR REFLECTOR AS A RESULT THE LAMP MAY FAIL TO MEET THE REOUIRED LIGHTING STANDARDS WAREHOUS NG AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 14Y 2 530 2 596 2 6 REV 1 85
