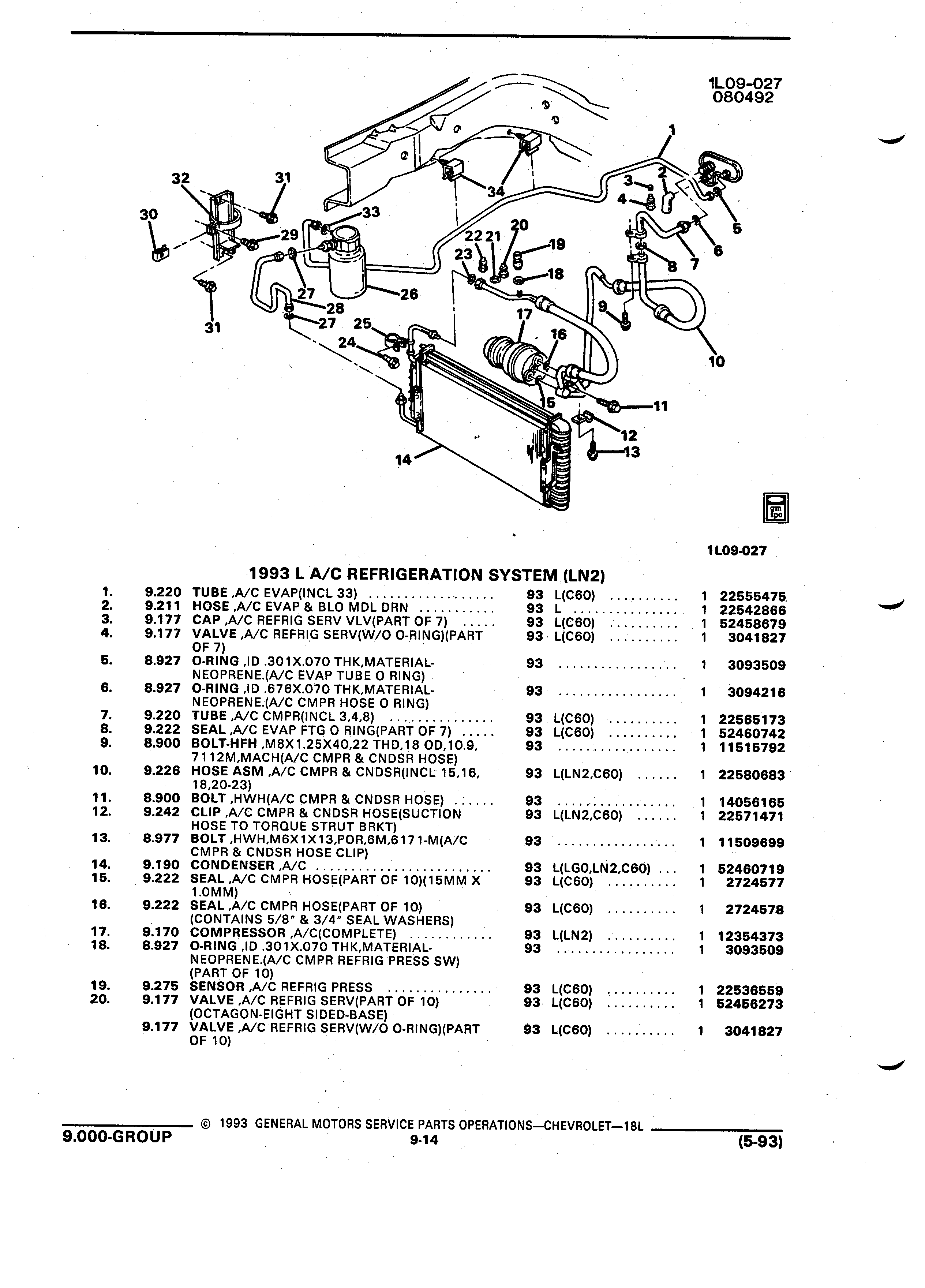

I 1LO9 027 K 080492 V 5 0 Q 1 Q I 1 w I 32 31 3 I 4 I I 34 4 Bf so 33 0 I v 5 29 22 21 19 1 6 4l 23 is l 7 jg 27 J 26 8 5 17 Ki 31 2 2 16 W Y va mi 10 nl 122222 I 1 wc to F 11 I 12 14 3 LE 1 V 1L09 027 41993 L A C REFRIGERATION SYSTEM LN2 1 9 220 TUBE A C EVAP INCL 33 93 L C60 1 22555475 2 9 211 HOSE A C EVAP BLO MDL DRN 93 L 1 22542866 3 9 177 CAP A C REFRIG SERV VLV PART OF 7 93 L C60 1 52458679 4 9 177 VALVE A C REFRIG SERV W O O R NG PART 93 L C60 1 3041827 OF 7 5 8 927 O RING ID 301X O7O THK MATER AL 93 1 3093509 NEOPRENE A C EVAP TUBE O RING 6 8 927 O RING ID 676X O7O THK MATERIAL I 93 1 3094216 NEOPRENE A C CMPR HOSE 0 RING 7 9 220 TUBE A C CMPR INCL 3 4 8 93 L C60 1 22565173 8 9 222 SEAL A C EVAP FTG O RING PART OF 7 93 L C60 1 52460742 9 8 900 BOLT HFH M8X1 25X40 22 THD 18 OD 10 9 93 1 11515792 7112M MACH A C CMPR CNDSR HOSE 10 9 226 HOSE ASM A C CMPR CNDSR NCL 15 16 93 L LN2 C60 1 22580683 18 20 23 11 8 900 BOLT HWH A C CMPR CNDSR HOSE Q 93 1 14056165 12 9 242 CLIP A C CMPR CNDSR HOSE SUCT ON 93 L LN2 C60 1 22571471 HOSE TO TOROUE STRUT BRKT 13 8 977 BOLT HWH M6X1X13 POR 6M 6171 M A C 93 1 11509699 CMPR CNDSR HOSE CLIP 14 9 190 CONDENSER A C 93 L LGO LN2 C60 1 52460719 15 9 222 SEAL A C CMPR HOSE PART OF 10 15MM X 93 L C60 1 2724577 1 0MM 16 9 222 SEAL A C CMPR HOSE PART OF 10 93 L C60 1 2724578 CONTAINS 5 8 3 4 SEAL WASHERS 17 9 170 COMPRESSOR A C COMPLETE 93 L LN2 1 12354373 18 8 927 O RING ID 301X O7O THK MATER AL 93 1 3093509 NEOPRENE A C CMPR REFRIG PRESS SW PART OF 10 19 9 275 SENSOR A C REFRIGV PRESS 93 L C60 1 22536559 20 9 177 VALVE A C REFRIG SERV PART OF 10 934 L C60 1 52456273 OCTAGON EIGHT SIDED BASE V I 9 177 VALVE A C REFRIG SERV W O O RING PART 93 L C60 1 3041827 OF 10 I 7 1993 GENERAL MOTORS SERVICE PARTS OPERAT 0NS CHEVROLET 18L t 9 000 GROUP 9 14 1 5 93
