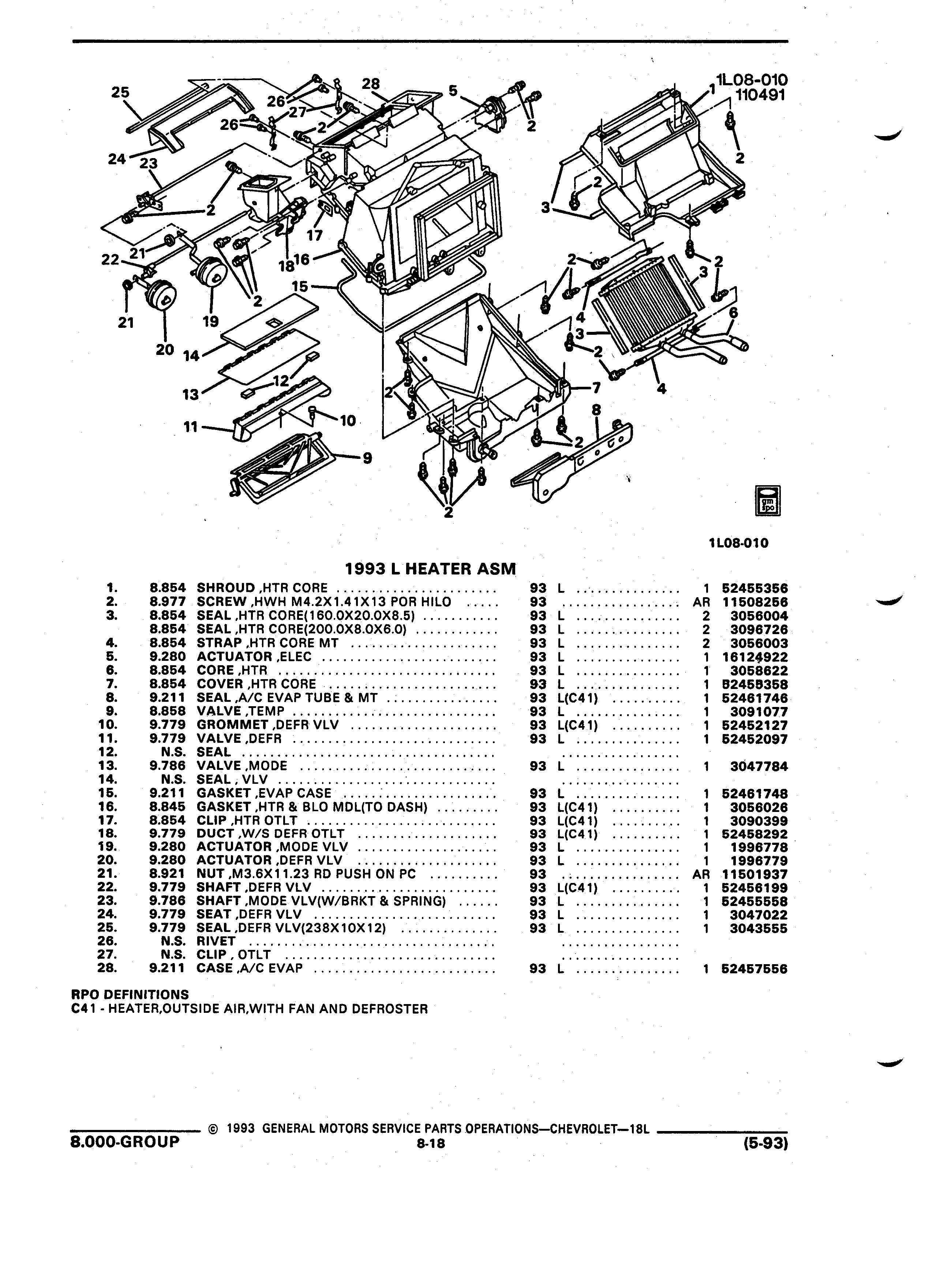

1 28 5 A 11LO8 010 zs 26 in A 110491 I 3 27 1 y 1 JA M 26 2 2 1 yi R b Q 24 M si I I li 1 t x 2 I 1z y V Nye 4 A 2 2 qlht l 3 h 4 4 I i I I ji 17 r I 22 21 3 1816 I Z I 3 2 LII I FI lr 0 15 1 L J L I 0 2 wl A 19 I 4 N 1 21 I 3 20 K a Q f 2 x 1 12 2 R I4 N4 13 9 U MN II 4 I I 2 F I 2 9 IIIM I I i I 1 I I v Q I 1L08 010 1993 L HEATER ASM 1 1 8 854 SHROUD HTR CORE 93 L 1 52455356 2 8 977 SCREW HWH M4 2X1 41X13 POR HILO 93 AR 11508256 3 8 854 SEAL HTR CORE 160 0X20 0X8 5 93 L 2 3056004 8 854 SEAL HTR CORE 200 0X8 0X6 0 93 L 2 3096726 4 8 854 STRAP HTR CORE MT 93 L 2 3056003 5 9 280 ACTUATOR ELEC 93 L 1 16124922 6 8 854 CORE HTR 93 L 1 3058622 7 8 854 COVER HTR CORE I 93 L 1 52455358 I 8 9 211 SEAL A C EVAP TUBE MT 93 L C41 1 52461746 9 8 858 VALVE TEMP 93 L 1 3091077 10 9 779 GROMMET DEFR VLV 93 L C41 1 52452127 1 1 9 779 VALVE DEFR 93 L 1 52452097 12 N S SEAL 13 9 786 VALVE MODE 93 L 1 3047784 14 N S SEAL VLV 15 9 211 GASKET EVAP CASE I 93 L 1 52461748 16 8 845 GASKET HTR BLO MDL TO DASH 93 L C41 1 3056026 17 8 854 CLIP HTR OTLT 93 L C41 1 3090399 18 9 779 DUCT W S DEFR OTLT 93 L C41 1 52458292 19 9 280 ACTUATOR MODE VLV 93 L 1 1996778 20 9 280 ACTUATOR DEFR VLV 93 L 1 1996779 21 8 921 NUT M3 6X11 23 RD PUSH ON PC 93 AR 11501937 22 9 779 SHAFT DEFR VLV 93 L C41 1 52456199 23 9 786 SHAFT MODE VLV W BRKT SPRING 93 L 1 52455558 24 9 779 SEAT DEFR VLV 93 L 1 3047022 25 9 779 SEAL DEFR VLV 238X10X12 93 L 1 3043555 26 N S RIVET 27 N S CLIP OTLT 28 9 211 CASE A C EVAP 93 L 1 52457556 RPO DEFINITIONS C41 HEATEFLOUTSIDE AIR W TH FAN AND DEFROSTER I wl 1993 GENERAL MOTORS SERVICE PARTS 0PERAT 0NS CHEVROLET 18L LL T 8 000 GROUP 8 18 A 5 93
