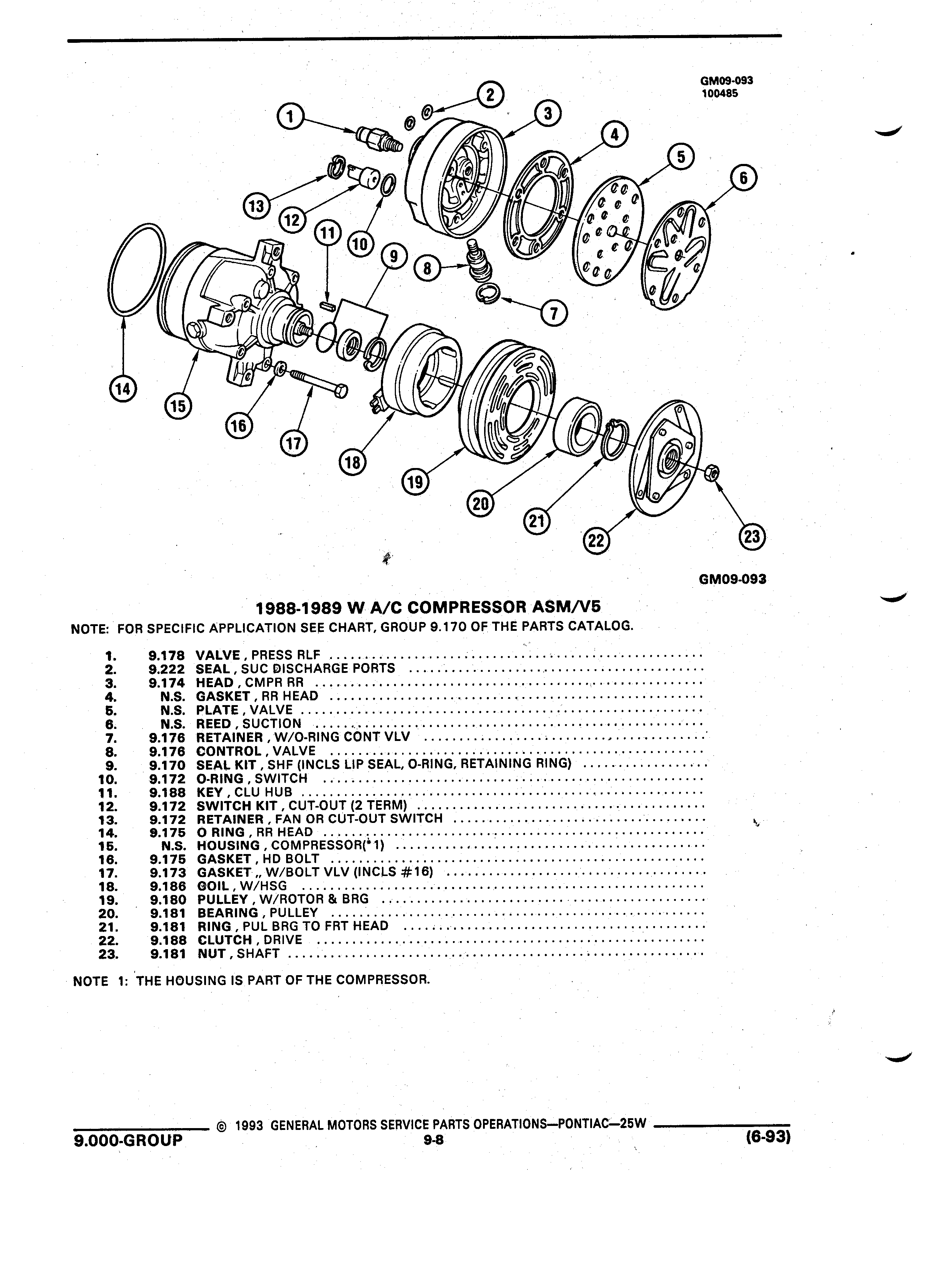

I GNI09 093 I 5 I A 9 O un 0 9 5 yQ I 6 U gy 4 w A g 0 4 A I J 0 0 bf 9 e e 0 GQ 0 L I 0 Ig E2 6 0 I 0 I gm I 0 ze J 1 I ep I x m M Qm III 7 g I I if GMO9 093 A 1988 1989 W A C COMPRESSOR ASMN5 I NOTE FOR SPECIFIC APPLICATION SEE CHART GROUP 9 170 OF THE PARTS CATALOG 1 9 178 VALVE PRESS RLF 2 9 222 SEAL SUC DISCHARGE PORTS 3 9 174 HEAD CMPR RR 4 N S GASKET RR HEAD V 5 N S PLATE VALVE I 6 N S REED SUCTION 7 9 176 RETAINER W O RING CONT VLV 8 9 176 CONTROL VALVE 9 9 170 SEAL KIT SHF INCLS LIP SEAL O RING RETAINING RING 10 9 172 O RING SWITCH 11 9 188 KEY CLU HUB V 12 9 172 SWITCH KIT CUT OUT 2 TERM 13 9 172 RETAINER FAN OR CUT OUT SWITCH 14 9 175 0 RING RR HEAD 15 N S HOUSING COMPRESSOR 1 16 9 175 GASKET HD BOLT 17 9 173 GASKET W BOLT VLV INCLS 16 18 9 186 GOIL W HSG 19 9 180 PULLEY W ROTOR BRG 20 9 181 BEARING PULLEY 21 9 181 RING PUL BRG TO FRT HEAD 22 9 188 CLUTCH DRIVE 23 9 181 NUT SHAFT NOTE 1 THE HOUSING IS PART OF THE COMPRESSOR 3 j 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS PONTIAC 25W 1 9 000 GROUP J 9 8 6 93
