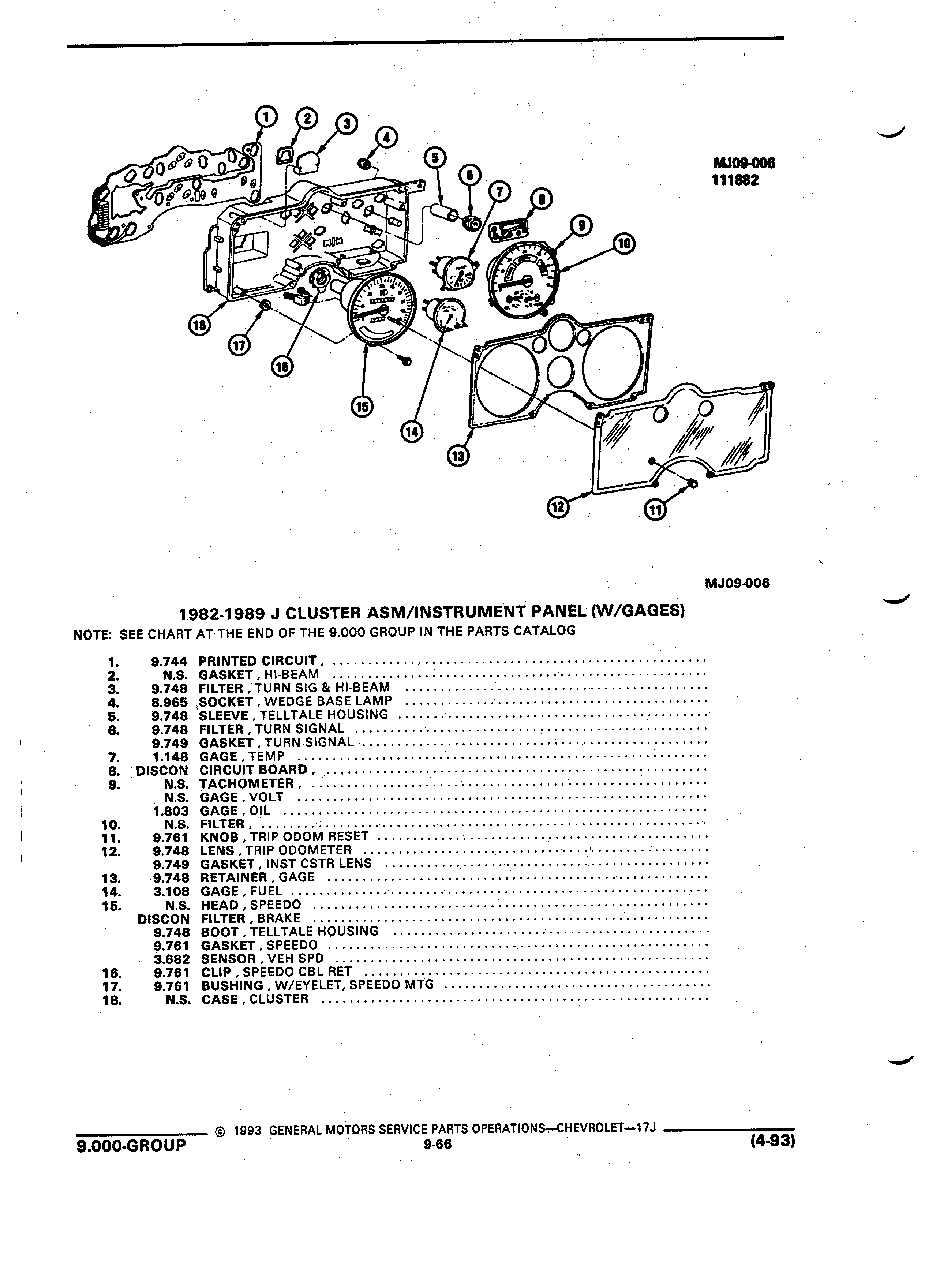

f up J 9 1 00 I J Tw g I g O 0 9 O I 0 W 0 F yl Q mm O I j m if F 4 4 S 9 9 I I L S 1 Q V 7 7 7 vv 4 xl wr 9 O I Q A v k Av 1 z7 P I L L I MJ09 008 U 1 982 1989 J CLUSTER ASM INSTRUMENT PANEL W GAGES NOTE SEE CHART ATTHE END OF THE 9 000 GROUP IN THE PARTS CATALOG 1 9 744 PRINTED CIRCUIT 2 N S GASKET HI BEAM Q 3 9 748 FILTER TURN SIG HI BEAM I 4 8 965 ESOCKET WEDGE BASE LAMP 5 9 748 SLEEVE TELLTALE HOUSING A 6 9 748 FILTER TURN SIGNAL 1 9 749 GASKET TURN SIGNAL 7 1 148 GAGE TEMP 8 DISCON CIRCUIT BOARD I I 9 N S TACHOMETER V V N S GAGE VOLT I I 1 803 GAGE OIL I I 10 N S FILTER I 11 9 761 KNOB TRIP ODOM RESET 12 9 748 LENS TRIP ODOMETER 1 I 9 749 GASKET INST CSTR LENS 13 9 748 RETAINER GAGE V 14 3 108 GAGE FUEL 15 N S HEAD SPEEDO DISCON FILTER BRAKE 9 748 BOOT TELLTALE HOUSING I 9 761 GASKET SPEEDO 3 682 SENSOR VEH SPD 16 9 761 CLIP SPEEDO CBL RET 1 17 9 761 BUSHING W EYELET SPEEDO MTG A 18 N S CASE CLUSTER I j 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS CHEVROLET 17J I 9 000 GROUP s sc 3 4 93
