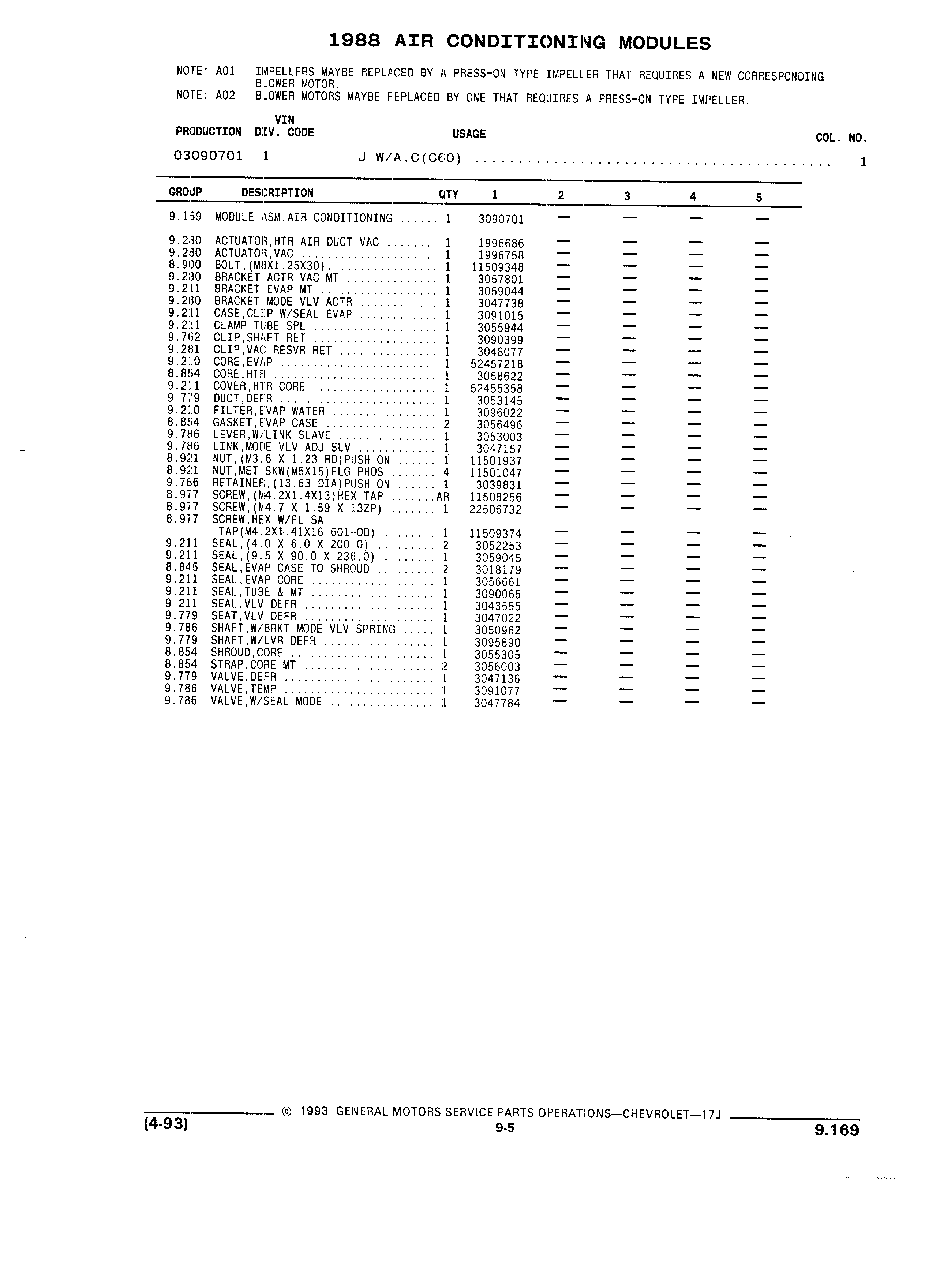

1988 AIR CONDI l I NIII G MODULES NOTE A01 IMPELLERS MAYBE REPLACLED BY A PRESS ON TYPE IMF EL L ER THAT REQUIRES A NEW CORRESPONDING BLOWER MOTOR NOTE AO2 B OWER MOTORS MAYBE FLEPLACED BY ONE THAT REQUIRES A PRESS ON TYPE IMPELLER VIN PRODUCTION DIV CODE USAGE COL NO 03090701 1 J W A C C60 1 GROUP DESCRIPTION QTY 1 2 3 4 5 9 169 MODULE A5M AIR CONDITIONING 1 309 0701 9 280 ACTUATOR HTR AIR DUCT VAC 1 1996686 9 280 ACTUATOR VAC 1 1996758 8 900 BOLT M8X1 25X30 1 11509348 9 280 BRACKET ACTR VAC MT 1 3057801 9 211 8RACKET EVAP MT 1 3059044 9 280 BRACKET MODE VLV ACTR 1 3047738 9 211 CASE CL1ZP W SEAL EVAP 1 3091015 9 211 CLAMP TUBE SPL 1 305594 4 9 762 CLIP SHAFT RET 1 3090399 9 281 CLIP VAC RESVR RET 1 3048077 9 210 CORE EVAP 1 524572128 8 854 CORE HTR 1 30586212 9 211 COVER HTR CORE 1 52455358 9 779 DUCT DEF R 1 3053145 9 210 FILTER EIVAP WATER 1 30960212 8 854 GASKET EIVAP CASE 2 3056496 9 786 LEVER W LINK SLAVE 1 30530013 9 786 LINK MOOE VLV ADJ SLV 1 3047157 8 921 NUT M3 6 X 1 23 RD PUSH ON 1 11501937 8 921 NUT MET SKW M5X15 FLG PHOS 4 11501047 9 786 RETAINER 13 63 DIA PUSH ON 1 3039831 8 977 SCREW M4 2X1 4X13 HEX TAP AR 11508258 8 977 SCREW M4 7 X 1 59 X 13ZP 1 225067312 8 977 SCREW HEX W FL SA TAP M4 2X1 41X16 601 0D 1 11509374 9 211 SEAL 4 0 X 6 0 X 200 0 2 305 2253 9 211 SEAL 9 5 X 90 0 X 236 0 1 3059045 8 845 SEAL EVAP CASE TO SHROUD 2 3018179 9 211 SEAL EVAP CORE 1 3056661 9 211 SEAL TUBE MT 1 3090065 9 211 SEAL VLV DEFR 1 3043555 9 779 SEAT VLV DEFR 1 3047022 9 786 SHAFT W BRKT MODE VLV SPRING 1 3050962 9 779 SHAFT W LVR DEFR ll 3095890 8 854 SHROUD CORE 1 3055305 8 854 STRAP CORE MT 2 3056003 9 779 VALVE 0EFR Il 3047136 9 786 VALVE TEMP Il 3091077 9 786 VALVE W SEAL MODE 1 3047784 T 1993 GENERAL MOTORS SERVICE PARTS OPERATION S CHEVROLET 17J i 4 93 f9 5 9 169
