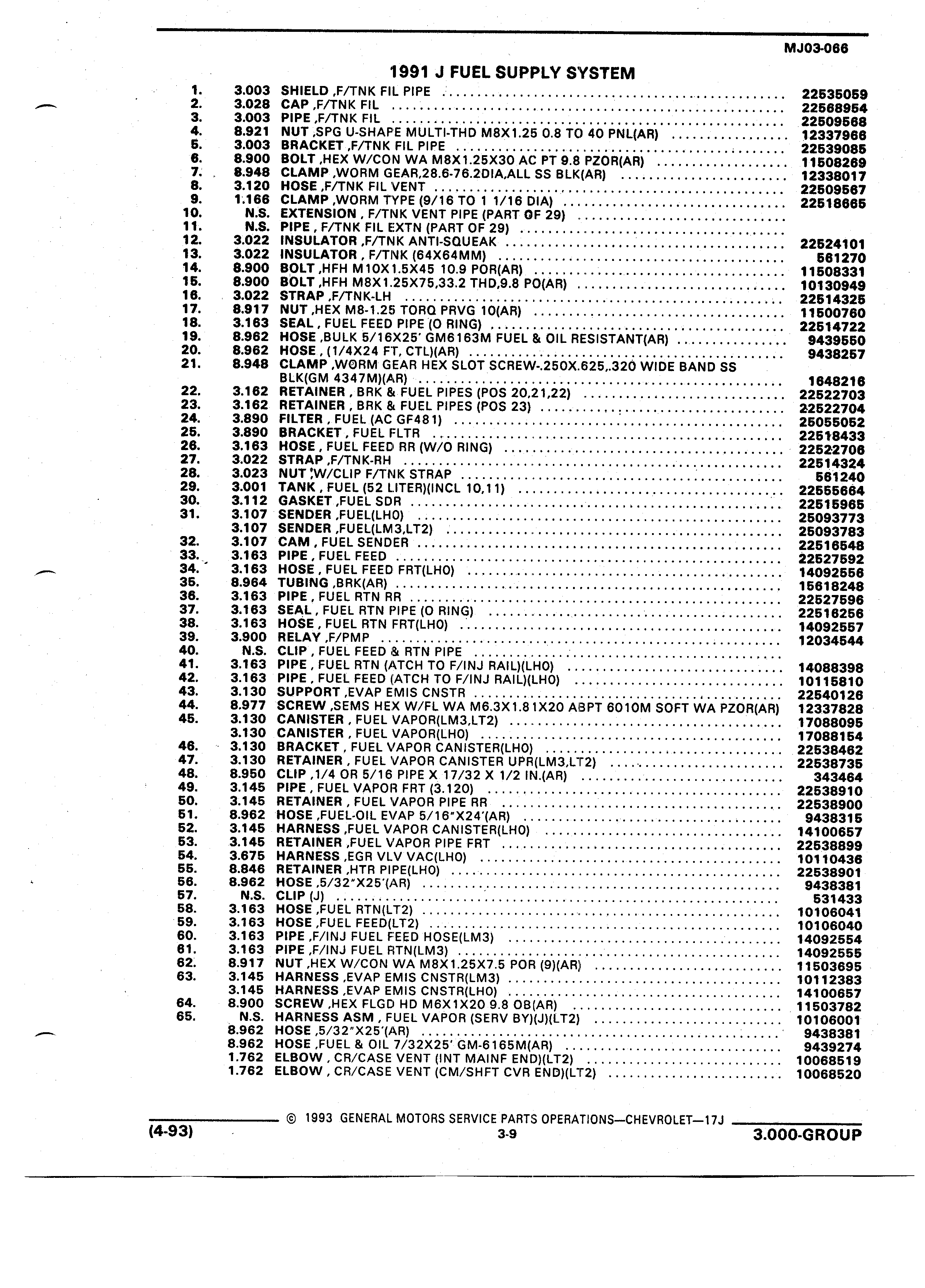

V MJ03 088 A I 1991 J FUEL SUPPLY SYSTEM 1 3 003 SHIELD F TNK FIL PIPE J 22535059 2 3 028 CAP F TNK FIL 22568954 3 3 003 PIPE F TNK FIL 22509588 4 8 921 NUT 5PG U SHAPE MULTI THD M8X1 25 0 8 TC 40 PNL AR 12337968 5 3 003 BRACKET F TNK FIL PIPE 22539085 6 8 900 BOLT HEX W CON WA M8X1 25X30 AC PT 9 8 PZOR AR 11508269 I 7 8 948 CLAMP WORM GEAR 28 6 76 2DIA ALL SS BLK AR 12338017 8 3 120 HOSE F TNK FIL VENT 22509587 9 1 168 CLAMP WORM T YPE 9 16 TO 1 1 16 DIA 22518885 10 N S EXTENSION F TNK VENT PIPE PART GF 29 11 N S PIPE F TNK FIL EEXTN PART OF 29 12 3 022 INSULATOR F TNK ANTI SOUEAK I 22524101 13 3 022 INSULATOR F TNK 64X64MM 581270 14 8 900 BOLT HFH M10X1 5X45 10 9 POR AR 11508331 15 8 900 BOLT HFH M8X1 25X75 33 2 THD 9 8 PO AR 10130949 18 3 022 STRAP F TNK LH 22514325 17 8 917 NUT HEX M8 1 25 TORQ PRVG 10 AR 11500780 18 3 183 SEAL FUEL FEED PIPE O RING 22514722 19 8 982 HOSE BULK 5 16X25 GM6163M FUEL OIL RES STANT AR 9439550 20 8 962 HOSE 1 4X24 F I CTL AR 9438257 21 8 948 CLAMP W RM GEAR HEX SLOTSCREW 250X 625 320 WIDE BAND SS BLK GM 4347M AR 1848218 22 3 182 RETAINER BRK FUEL PIPES POS 20 21 22 22522703 23 3 162 RETAINER BRK FUEL PIPES POS 23 22522704 I 24 3 890 FILTER FUEL AC GF481 25055052 25 3 890 BRACKET FUEL FLTR 22518433 28 3 183 HOSE FUEL FEED RR W O RING 22522708 27 3 022 STRAP F TNK RH V 2 2514324 28 3 023 NUT ZW CLIP F TNK STRAP 581240 29 3 001 TANK FUEL 52 L ITER INCL 10 11 V 22555884 30 3 1 12 GASKET FUEL SDR 22515985 31 3 107 SENDER FUEL LHO 25093773 3 107 SENDER FUEL LM3 LT2 25093783 32 3 107 CAM FUEL SENDER 22516548 33 3 163 PIPE FUEL FEED 22527592 34 3 163 HOSE FUEL FEED FRT LHO 14092558 35 8 964 TUBING BRK AR 15618248 36 3 163 PIPE FUEL RTN RR 22527598 37 3 163 SEAL FUEL RTN PIPE O RING 22516256 38 3 163 HOSE FUEL RTN FRT LHO 14092557 39 3 900 RELAY F PMP V 12034544 40 N S CLIP FUEL FEED I3 RTN PIPE 41 3 163 PIPE FUEL RTN ATCH TO F INJ RAIL LHO 14088398 42 3 163 PIPE FUEL FEED ATCH TO F INJ RA L LHO 10115810 43 3 130 SUPPORT EVAP EMIS CNSTR 22540128 44 8 977 SCREW SEMS HEQX W FL WA M6 3X1 81X2O AIBPT 6010M SOFT WA PZOR AR 12337828 45 3 130 CANISTER FUEL VAPOR LM3 LT2 17088095 3 130 CANISTER FUEL VAPOR LHO 17088154 48 3 130 BRACKET FUEL VAPOR CANISTER LHO 22538482 47 3 130 RETAINER FUEL VAPOR CANISTER UPR LM3 LT2 22538735 48 8 950 CLIP 1 4 OR 5 16 PIPE X 17 32 X 1 2 IN AR A 343464 49 3 145 PIPE FUEL VAPOR FRT 3 120 22538910 50 3 145 RETAINER FUEL VAPOR PIPE RR 22538900 51 8 962 HOSE FUEL OIL EVAP 5 16 X24 AR 9438315 52 3 145 HARNESS FUEL VAPOR CANISTER LHO 14100657 53 3 145 RETAINER FUEL VAPOR PIPE FRT 22538899 54 3 675 HARNESS EGR VLV VAC LI IO 10110436 55 8 846 RETAINER HTR PIPE LHO 22538901 56 8 962 HOSE 5 32 X25 AR V 9438381 57 N S CLIP J 531433 58 3 163 HOSE FUEL RTN LT2 10106041 59 3 163 HOSE FUEL FEED LT2 10106040 60 3 163 PIPE F INJ FUEL FEED HOSE LM3 14092554 61 3 163 PIPE F INJ FUEL FITN LM3 14092555 62 8 917 NUT HEX W CON WA M8X1 25X7 5 POR 9 AR 11503695 63 3 145 HARNESS EVAP EMIS CNSTR LM3 10112383 3 145 HARNESS EVAP EMIS CNSTR LHO 14100657 64 8 900 SCREW HEX FLGD HD M6X1X20 9 8 OB AR 11503782 65 V N S HARNESS ASM FUEL VAPOR SERV BY J LT2 10106001 8 962 HOSE 5 32 X25 XR Q 9438381 8 962 HOSE FUEL OIL 7 32X25 GM 6165M AR 9439274 1 762 ELBOW CR CASE VENT INT MAINF END I T2 10068519 1 762 ELBOW CR CASE VENT CM SHFT CVR END L1l 2 10068520 t 1993 GENERAL MOTORS SERVICE PARTS OPERAT ONS CHEVROLET 17J 4 93 3 9 3 000 GROUP
