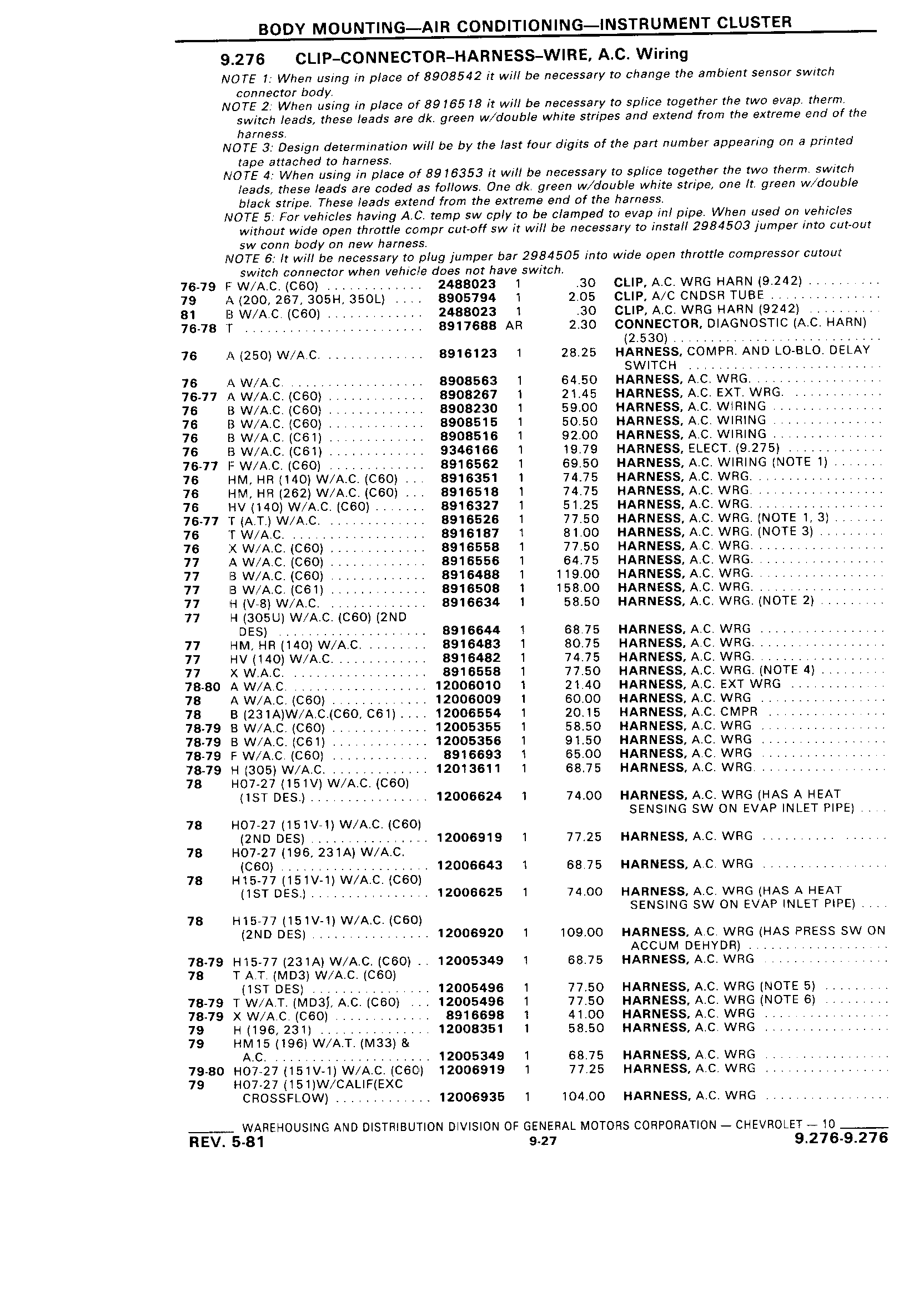

9 276 CLIP CONNECTOR HARNESS WIRE A C Waring NOTE 1 When using in place of 8908542 it will be necessary to change the ambient sensor switch connector body NOTE 2 When using in place of 8915518 it will be necessary to splice together the two evap therm switch leads these leads are dk green vv double white stripes and extend from the extreme end of the harness NOTE 3 Design determmation will be by the last four digits of the part number appearing on a printed tape attached to harness NOTE 4 When using in place of 8916353 it will be necessary to splice together the two therm swltch leads these leads are coded as follows One dk green w double white stripe one lt green wrdouble black stripe These leads extend from the extreme end of the harness NOTE 5 For vehicles having A C temp sw cply to be clamped to evap lnl pipe When used on vehicles without wide open throttle compr cut off sw it will be necessary to install 2984503 jumper into cut out sw conn body on new harness l OTE 6 lt will be necessary to plug jumper bar 2984505 into wide open throttle compressor cutout switch connector when vehicle does not have switch 76 79 F W A C C60 2488023 1 30 CLIP A C WRG HARN 9 242 79 A 200 267 305H 350L 8905794 1 2 05 CLIP A C CNDSR TUBE 81 IE5 W AC C60 2488023 1 30 CLIP A C WRG HARN 9242 76 78 T 8917688 AR 2 30 CONNECTOR DIAGNOSTIC A C HARN 2 530 76 A 250 W A C 8916123 1 28 25 HARNESS COMPR AND LO BLO DELAY SWITCH 76 A W A C 8908563 1 64 50 HARNESS A C WRG 76 77 A W A C C60 8908267 1 21 45 HARNESS A C EXT WRG 76 B W A C C60 8908230 1 59 00 HARNESS A C W1RING 76 B W A C C60 8908515 1 50 50 HARNESS A C WIRING 76 B W A C C61 8908516 1 92 00 HARNESS A C WIRING 76 8 W A C C61 9346166 1 19 79 HARNESS ELECT 9 275 76 77 F W A C C60 8916562 1 69 50 HARNESS A C WIRING NOTE 1 76 I IM HR 140 W A C C60 8916351 1 74 75 HARNESS A C WRG 76 I INI HR 262 W A C C60 8916518 1 74 75 HARNESS A C WRG 76 HV 140 W A C C60 8916327 1 51 25 HARNESS A C WRG 76 77 T A T W A C 8916526 1 77 50 HARNESS A C WRG NOTE 1 3 76 T W A C 8916187 1 81 00 HARNESS A C WRG NOTE 3 76 X W A C C60 8916558 1 77 50 HARNESS A C WRG 77 A W A C C60 8916556 1 64 75 HARNESS A C WRG 77 B W A C C60 8916488 1 119 00 HARNESS A C WRG 77 I3 W A C C61 8916508 1 158 00 HARNESS A C WRG 77 H V 8 W A C 8916634 I 58 50 HARNESS A C WRG NOTE 2 77 H 305U W A C C60 2ND DES 8916644 1 66 75 HARNESS A C WRG 77 HM HR 140 W A C 8916483 1 80 75 HARNESS A C WRG 77 HV 140 W A C 8916482 1 74 75 HARNESS A C WRG 77 X W A C 8916558 1 77 50 HARNESS A C WRG NOTE 4 78 80 A W A C 12006010 1 21 40 HARNESS A C EXT WRG 78 A W A C C60 12006009 I 60 00 HARNESS A C WRG 78 B 231A W A C C60 C61 12006554 1 20 15 HARNESS A C CMPR 78 79 B W A C C60 12005355 1 58 50 HARNESS A C WRG 78 79 B W A C C61 12005356 1 91 50 HARNESS A C WRG 78 79 F W A C C60 8916693 1 65 00 HARNESS A C WRG 78 79 H 305 W A C 12013611 1 68 75 HARNESS A C WRG 78 H07 27 151V W A C C60 IST DES 12006624 1 74 00 HARNESS A C WRG HAS A HEAT SENSING SW ON EVAP INLET PIPE 78 H07 27 151V I W A C C60 2ND DES 12006919 1 77 25 HARNESS A C WRG 78 H07 27 196 231A W A C C60 12006643 1 68 75 HARNESS A C WRG 78 H15 77 151V 1 W A C C60 1ST DES 12006625 1 74 00 HARNESS A C WRG HAS A HEAT SENSING SW ON EVAP INLET PIPE 78 H15 77 151V 1 W A C C50 2ND DES 12006920 1 109 00 HARNESS AC WRG HAS PRESS SW ON ACCUIVI DEHYDR 78 79 H15 77 231A W A C C60 12005349 1 68 75 HARNESS A C WRG 78 T AT MD3 W A C C60 1ST DES 12005496 1 77 50 HARNESS A C WRG NOTE 5 78 79 T W A T MD3 A C C60 12005496 1 77 50 HARNESS A C WRG NOTE 6 78 79 X W A C C60 8916698 1 41 00 HARNESS A C WRG 79 H 196 231 12008351 I 58 50 HARNESS A C WRG 79 HM15 196 W A T M33 A C 12005349 1 68 75 HARNESS AC WRG 79 80 H07 27 151V 1 W A C C60 12006919 1 77 25 HARNESS A C WRG 79 H07 27 151 W CALIF EXC CROSSFLOW 12006935 1 104 00 HARNESS A C WRG WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION CHEVROLET 10 REV 5 81 9 27 9 276 9 276
