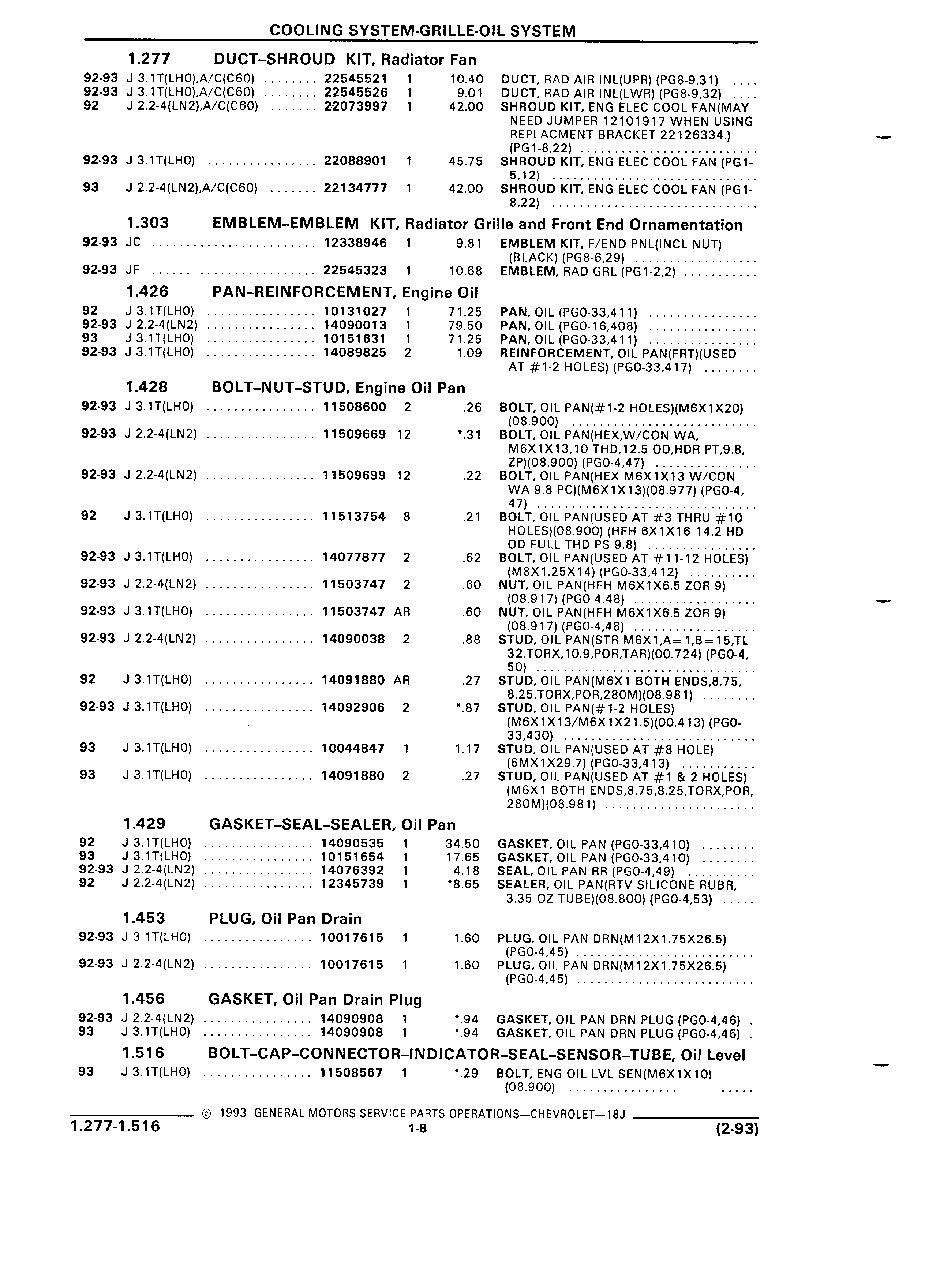

COOLING SYSTEM GRILLE OIL SYSTEM 1 277 DUCT SHROUD KIT Radiator Fan 92 93 J 3 1T LHO A C C60 22545521 1 10 40 DUCT RAD AIR INL UPR PG8 9 31 92 93 J 3 1T LHO A C C60 22545526 1 9 01 DUCT RAD AIR INL LWR PG8 9 32 92 J 2 2 4 LN2 A C C60 22073997 1 42 00 SHROUD KIT ENG ELEC COOL FAN MAY NEED JUMPER 12101917 WHEN USING REPLACMENT BRACKET 22126334 V PGI 8 22 92 93 J 3 1T LHO 22088901 I 45 75 SHROUD KIT ENG ELEC COOL FAN PG1 5 12 93 J 2 2 4 LN2 A C C60 22134777 1 42 00 SHROUD KIT ENG ELEC COOL FAN PG1 8 22 1 303 EMBLEM EMBLEM KIT Radiator Grille and Front End Ornamentation 92 93 JC 12338946 1 9 81 EMBLEM KIT F END PNL NCL NUT BLACK PG8 6 29 92 93 JF 22545323 1 10 68 EMBLEM RAD GRL PG1 2 2 1 426 PAN REINFORCEMENT Engine Oil 92 J 3 1T LHO 10131027 1 71 25 PAN OIL PGO 33 41 1 92 93 J 2 2 4 LN2 14090013 1 79 50 PAN OIL PGO 16 408 93 J 3 1T LHO 10151631 1 71 25 PAN OIL PGO 33 41 1 92 93 J 3 1T LHO 14089825 2 1 09 REINFORCEMENT OIL PAN FRT USED AT 1 2 HOLES PGO 33 417 1 428 BOLT NUT STUD Engine Oil Pan 92 93 J 3 1T LHO 11508600 2 26 BOLT OIL PAN 1 2 HOLES M6X1X20 08 900 92 93 J 2 2 4 LN2 11509669 12 31 BOLT OIL PAN HEX W CON WA M6X1X13 10 THD 12 5 OD HDR PT 9 8 ZP O8 900 PGO 4 47 92 93 J 2 2 4 LN2 11509699 12 22 BOLT OIL PAN HEX M6X1X13 W CON WA 9 8 PC M6X1XI3 08 977 PGO 4 47 92 J 3 1T LHO 11513754 8 21 BOLT OIL PAN USED AT 3 THRU 10 HOLES 08 900 HFH 6X1X16 14 2 HD OD FULL THD PS 9 8 92 93 J 3 1T LHO 14077877 2 62 BOLT OIL PAN USED AT 11 12 HOLES M8X1 25X14 PGO 33 412 92 93 J 2 2 4 LN2 11503747 2 60 NUT OIL PAN HFH M6X1X6 5 ZOR 9 08 917 PGO 4 48 92 93 J 3 1T LHO 11503747 AR 60 NUT OIL PAN HFH M6X1X6 5 ZOR 9 08 917 PGO 4 48 92 93 J 2 2 4 LN2 14090038 2 88 STUD OIL PAN STR M6X1 A 1 B 15 TL 32 TORX 10 9 POR TAR 00 724 PGO 4 50 92 J 3 1T LHO 14091880 AR 27 STUD OIL PAN M6X1 BOTH ENDS 8 75 8 25 TORX POR 280M 08 981 92 93 J 3 1T LHO 14092906 2 87 STUD OIL PAN 1 2 HOLES M6X1X13 M6X1X21 5 00 413 PGO 33 430 93 J 3 1T LHO 10044847 I 1 17 STUD OIL PAN USED AT 8 HOLE 6MX1X29 7 PGO 33 413 93 J 3 1T LHO 14091880 2 27 STUD OIL PAN USED AT 1 2 HOLES M6X1 BOTH ENDS 8 75 8 25 TORX POR 280M 08 981 1 429 GASKET SEAL SEALER Oil Pan 92 J 3 1T LHO 14090535 1 34 50 GASKET OIL PAN PGO 33 410 93 J 3 1T LHO 10151654 1 17 65 GASKET OIL PAN PGO 33 410 92 93 J 2 2 4 LN2 14076392 1 4 18 SEAL OIL PAN RR PGO 4 49 92 J 2 2 4 LN2 12345739 1 8 65 SEALER OIL PAN RTV SILICONE RUBR 3 35 OZ TUBE 08 800 PGO 4 53 1 453 PLUG Oil Pan Drain 92 93 J 3 1T LHO 10017615 1 1 60 PLUG OIL PAN DRN M12X1 75X26 5 PGO 4 45 92 93 J 2 2 4 LN2 10017615 1 1 60 PLUG OIL PAN DRN M12X1 75X26 5 PGO 4 45 1 456 GASKET Oil Pan Drain Plug 92 93 J 2 2 4 LN2 14090908 1 94 GASKET OIL PAN DRN PLUG PGO 4 46 93 J 3 1T LHO 14090908 1 94 GASKET OIL PAN DRN PLUG PGO 4 46 1 516 BOLT CAP CONNECTOR INDICATOR SEAL SENSOR TUBE Oil Level 93 J 3 1T LHO 11508567 1 29 BOLT ENG OIL LVL SEN M6X1X10I 08 900 1993 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET I8J 1 277 1 516 1 8 2 93
